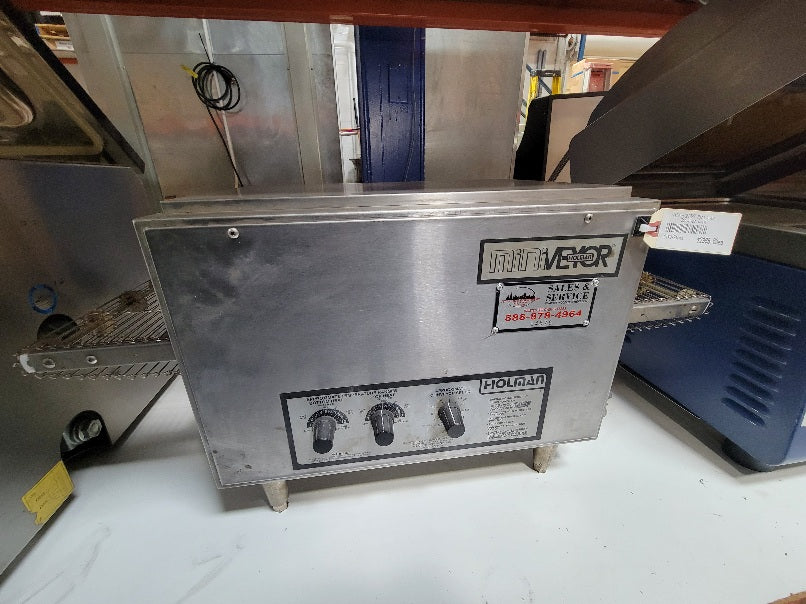

Star 210HX 31" Miniveyor Electric Countertop Conveyor Oven

The Star 210HX Electric Quartz Heater Conveyor Oven represents compact, high-performance conveyor oven technology engineered specifically for pizzerias, quick-service restaurants, snack bars, and foodservice operations requiring consistent, automated baking in a space-efficient footprint. This innovative countertop conveyor oven features high-power quartz infrared heating elements located above and below the conveyor belt, delivering faster, more consistent heating than traditional metal heating elements for superior product quality. Manufactured by Star Manufacturing International in Smithville, Tennessee, the 210HX processes approximately 30 six-inch pizzas or 26 nine-inch blanched shell pizzas per hour on 120V electrical service with 1,700 watts of power. The compact 36.4-inch width accommodates installation on standard countertops while the 10-inch wide by 31-inch long conveyor belt provides substantial production capacity. Featuring analog controls for independent top and bottom heat adjustment plus variable conveyor speed, adjustable product opening from 1-1/2 to 3 inches, forced convection system that keeps the conveyor cool-to-the-touch, and removable crumb tray for easy cleanup, the Star 210HX delivers professional automated baking performance. UL listed, CSA certified, and NSF approved with all-stainless steel construction, the 210HX cooks fresh dough pizza, blanched pizza, subs, cookies, fish, and diverse menu items quickly and easily while preserving valuable cooking space.

High-Power Quartz Infrared Heating System

• Quartz Infrared Elements - Advanced quartz technology delivers superior heat transfer efficiency
• Faster Heating - Quartz elements heat faster than traditional metal heating elements
• More Consistent Results - Even heat distribution ensures uniform product quality
• Dual Element Placement - Elements located above and below conveyor belt for complete coverage
• Precise Even Heating - Top and bottom elements provide balanced heating from both sides
• 1,700 Watts Power - Substantial power output for continuous production on 120V service

Professional Analog Control System

• Independent Top Heat Control - Separate adjustment for upper heating elements
• Independent Bottom Heat Control - Dedicated control for lower heating elements
• Variable Conveyor Speed - Adjustable belt speed controls cooking time and product doneness
• On/Off Heat Switch - Convenient heat control for power management
• Analog Controls - Simple, reliable analog adjustments for intuitive operation
• Precise Temperature Management - Independent heat controls enable customization for different products

Forced Convection System

• Active Air Circulation - Forced convection system circulates preheated air into toasting chamber
• Cool-to-the-Touch Conveyor - Convection keeps belt temperature safe for operation
• Extended Component Life - Cool conveyor reduces wear on critical components
• Increased Productivity - Preheated circulating air enhances cooking efficiency
• Enhanced Heat Transfer - Forced air improves heat distribution for even cooking

Professional Production Capacity

• 30 Six-Inch Pizzas Per Hour - Substantial capacity for small pizza production
• 26 Nine-Inch Pizzas Per Hour - Efficient blanched shell pizza throughput
• 10-Inch Wide Belt - Accommodates diverse product sizes
• 31-Inch Belt Length - Extended cooking zone ensures proper product development
• Continuous Operation - Automated conveyor enables sustained production
• Consistent Results - Even heating and controlled speed deliver uniform quality

Adjustable Product Opening

• 1-1/2 to 3 Inch Range - Accommodates products from thin flatbreads to thick sandwiches
• Easy Adjustment - Simple opening height modification for different menu items
• Menu Flexibility - Single oven handles diverse product thicknesses
• Optimized Clearance - Proper opening height improves heat efficiency and product quality

Extended Load/Unload Area

• 6-1/2 Inch Extension - Removable extended area for convenient product handling
• Removable Design - Extension removes for cleaning or space optimization
• Standard Equipment - Included with every unit for enhanced functionality
• Improved Workflow - Extended area simplifies loading and unloading during service

Easy Cleaning Design

• Removable Crumb Tray - Quick-release tray collects crumbs and debris
• Fast Cleanup - Easy tray removal simplifies end-of-shift cleaning
• Accessible Design - Open construction enables thorough cleaning access
• Sanitation Friendly - Removable components support proper hygiene standards

Commercial-Grade Construction

• All Stainless Steel Construction - Durable stainless exterior and interior surfaces
• Professional Appearance - Polished stainless finish enhances kitchen aesthetics
• Corrosion Resistance - Stainless construction withstands commercial kitchen environments
• Easy Maintenance - Smooth stainless surfaces wipe clean effortlessly
• Long Service Life - Heavy-duty construction ensures years of reliable operation

Durable Drive System

• Permanently Lubricated Motor - Maintenance-free motor requires no regular servicing
• Long-Lasting Teflon Bearings - Durable bearing material provides extended service life
• Reliable Operation - Quality drive components ensure consistent belt movement
• Reduced Maintenance - Permanent lubrication eliminates routine maintenance requirements

Space-Efficient Compact Design

• 36.4-Inch Width - Fits standard countertop installations
• 14-Inch Height - Low profile accommodates installation under shelving or ventilation
• 15.4-Inch Depth - Shallow depth preserves valuable counter space
• Countertop Configuration - 2-1/2 inch adjustable legs for leveling and positioning
• Compact Footprint - Professional capacity without excessive space requirements

Stackable Capability

• Two-High Stacking - Can be stacked two units high to double capacity
• Vertical Expansion - Add capacity without increasing floor space
• Space Optimization - Stacking maximizes production in limited kitchen areas
• Independent Operation - Each unit operates independently when stacked

120V Standard Electrical Service

• 120V Operation - Standard North American household/commercial voltage
• 14.2 Amp Draw - Operates on standard 15-amp circuit
• NEMA 5-15P Plug - Standard three-prong plug for conventional outlets
• Plug-and-Play Installation - No special electrical service required
• Installation Flexibility - Install anywhere standard 120V power is available

Professional Certifications

• UL Listed - Underwriters Laboratories certification for electrical safety
• CSA Certified - Canadian Standards Association approval for North American markets
• NSF Approved - National Sanitation Foundation certification for food equipment standards
• Commercial Safety Standards - Meets rigorous safety requirements for foodservice equipment
• Made in USA - Manufactured in Smithville, Tennessee with American craftsmanship

Ideal Applications

The Star 210HX Electric Quartz Heater Conveyor Oven excels in diverse commercial baking operations:

Pizza Operations

• Pizzerias - Fresh dough and blanched shell pizza production
• Quick-Service Pizza - Rapid pizza baking for fast-casual concepts
• Pizza by the Slice - Continuous baking and reheating for slice operations
• Specialty Pizza Shops - Diverse pizza styles with adjustable heat controls
• Delivery Operations - Efficient pizza production for delivery-focused businesses

Sandwich & Sub Shops

• Sub Shops - Toasting subs, sandwiches, and specialty items
• Deli Operations - Warming and toasting deli sandwiches
• Bakery Cafes - Toasting specialty breads and sandwich creations
• Quick-Service Sandwich Concepts - Automated toasting for rapid service

Bakery & Snack Operations

• Bakeries - Cookies, pastries, and baked goods production
• Donut Shops - Specialty baked items and breakfast pastries
• Coffee Shops - Cookies, scones, and baked accompaniments
• Snack Bars - Diverse baked snack items and specialty products

Diverse Foodservice Operations

• Convenience Stores - Fresh-baked pizza and food programs
• Grocery Store Delis - In-store pizza and sandwich programs
• Food Trucks - Compact automated cooking for mobile operations
• Concession Stands - Stadium and venue food service
• Cafeterias - School and institutional foodservice programs

Specialty Applications

• Fish & Seafood - Specialized cooking for fish and seafood items
• Appetizer Production - Restaurant appetizer and starter preparation
• Specialty Foods - Diverse menu items requiring consistent automated cooking
• Catering Operations - Portable automated cooking for events

Performance Specifications

• Model: Star 210HX Electric Quartz Heater Conveyor Oven
• Type: Countertop electric conveyor oven with quartz infrared heating
• Electrical: 120V, 60Hz, 14.2 Amps, 1,700 Watts
• Plug Type: NEMA 5-15P (standard three-prong)
• Heating System: Quartz infrared elements above and below conveyor
• Heat Control: Independent analog controls for top heat, bottom heat, and conveyor speed
• On/Off Switch: Heat switch for power management
• Convection System: Forced convection with preheated air circulation
• Production Capacity: Approximately 30 six-inch pizzas per hour or 26 nine-inch blanched shell pizzas per hour
• Belt Width: 10.0 inches (254mm)
• Belt Length: 31.0 inches (787mm)
• Cooking Chamber Width: 10.3 inches (262mm)
• Cooking Chamber Length: 16.9 inches (429mm)
• Product Opening: Adjustable from 1-1/2 to 3 inches
• Extended Load/Unload Area: 6-1/2 inches, removable (standard)
• Crumb Tray: Removable for easy cleanup
• Belt Travel Direction: Left to right
• Motor: Permanently lubricated
• Bearings: Long-lasting Teflon
• Construction: All stainless steel
• Legs: 2-1/2 inch adjustable (standard)
• Overall Width: 36.4 inches (925mm)
• Overall Depth: 15.4 inches (392mm)
• Overall Height (Single Unit): 14.0 inches (356mm)
• Overall Height (Double Stacked): 30.1 inches (765mm)
• Overall Depth (Double Stacked): 20.3 inches (516mm)
• Stacking Capability: Two (2) high
• Clearance Requirements: 6 inches from ends to any combustible material
• Shipping Weight: 60 pounds (28 kg)
• Installed Weight: 38 pounds (18 kg)
• Certifications: UL Listed, CSA Certified, NSF Approved
• Manufacturer: Star Manufacturing International Inc., Smithville, Tennessee
• Country of Origin: Made in USA

Why Choose the Star 210HX?

The Star 210HX Electric Quartz Heater Conveyor Oven represents advanced countertop cooking technology engineered specifically for operations requiring consistent automated baking without the space demands and complexity of larger conveyor ovens. The high-power quartz infrared heating system delivers fundamental advantages over conventional metal heating elements, providing faster heat-up times, more consistent temperature distribution, and superior heat transfer efficiency. The quartz elements reach operating temperature rapidly and maintain precise heat output, ensuring that the first product and the hundredth product receive identical cooking conditions throughout the production day.

The dual element placement with heating elements located both above and below the conveyor belt ensures complete, balanced heating from both sides simultaneously. This top-and-bottom heating configuration eliminates the uneven cooking that occurs with single-element designs, delivering uniform browning, complete product development, and consistent quality regardless of product type or thickness. The independent control of top and bottom heat enables customization for different menu items – increase bottom heat for crispy pizza crusts, boost top heat for cheese melting and browning, or balance both for even toasting of sandwiches and subs.

The forced convection system represents sophisticated thermal engineering that delivers multiple operational benefits. The actively circulated preheated air enhances heat transfer efficiency, improves temperature uniformity throughout the cooking chamber, and increases overall productivity by reducing cooking times. Simultaneously, the forced air circulation keeps the conveyor belt cool-to-the-touch, enabling safe operation while extending the service life of the belt and associated drive components. This dual-purpose convection system demonstrates attention to both performance optimization and equipment longevity that separates professional equipment from consumer-grade alternatives.

The professional production capacity of approximately 30 six-inch pizzas or 26 nine-inch blanched shell pizzas per hour establishes the 210HX as a true commercial workhorse despite its compact countertop footprint. This substantial throughput accommodates demanding lunch rushes, continuous dinner service, and high-volume production requirements that would overwhelm toaster ovens or batch-cooking equipment. The 10-inch belt width provides versatility for diverse product sizes while the 31-inch belt length ensures adequate cooking time for proper product development. The combination of automated operation and professional capacity transforms labor-intensive manual baking into efficient, consistent automated production.

The analog control system with independent adjustments for top heat, bottom heat, and conveyor speed provides intuitive operation and precise customization for different products. The simple analog controls eliminate the complexity of digital interfaces while providing all essential adjustments for professional baking results. Operators can quickly dial in the optimal settings for each menu item, then rely on the consistent performance of the quartz heating and automated conveyor to deliver identical results throughout service. The on/off heat switch enables convenient power management during slow periods or when the oven is not in use, reducing energy consumption without requiring complete shutdown.

The adjustable product opening from 1-1/2 to 3 inches accommodates the diverse thicknesses encountered in commercial foodservice. Process thin flatbreads and cookies at the narrow setting, adjust to medium height for standard pizzas and sandwiches, or open to the full 3-inch clearance for thick submarine sandwiches and specialty items. This adjustability enables a single oven to handle diverse menu applications without requiring multiple specialized units, maximizing equipment investment while minimizing space requirements. The proper opening height also improves heat efficiency by reducing heat loss and ensuring optimal heat concentration on the product.

The removable 6-1/2 inch extended load/unload area simplifies product handling during service periods. The extension provides a convenient staging area for loading products onto the belt and retrieving finished items without awkward reaching or positioning. The removable design enables the extension to be detached for cleaning or when space constraints require the most compact footprint possible. This standard feature enhances operational efficiency while demonstrating attention to workflow optimization that improves productivity during busy service periods.

The removable crumb tray represents essential sanitation engineering for commercial baking operations. The quick-release tray collects crumbs, toppings, and debris that fall from products during cooking, maintaining clean operation and preventing accumulation that could create smoke or fire hazards. The easy removal design enables rapid cleanup at the end of each shift, supporting the sanitation standards required in commercial foodservice. The accessible tray design ensures thorough debris removal without requiring disassembly or extensive cleaning procedures.

The all-stainless steel construction throughout the oven delivers professional appearance, exceptional durability, and ease of maintenance. The complete stainless exterior and interior withstands the heat, moisture, and cleaning chemicals inherent to commercial cooking without rusting, warping, or deteriorating. The smooth stainless surfaces wipe clean effortlessly, maintaining professional appearance with minimal maintenance effort. This commercial-grade construction ensures that the 210HX maintains both its performance and appearance throughout years of demanding service.

The permanently lubricated motor and long-lasting Teflon bearings eliminate regular maintenance requirements, reducing operating costs and minimizing service downtime. The sealed motor design requires no periodic lubrication or adjustment, while the durable Teflon bearing material provides smooth, quiet operation through thousands of hours of continuous use. This maintenance-free drive system enables operators to focus on production rather than equipment servicing, while the reliable components ensure consistent belt movement and even cooking results.

The compact 36.4-inch width, 15.4-inch depth, and 14-inch height enable installation on standard countertops in space-constrained kitchens where larger conveyor ovens would be impractical. The shallow depth preserves valuable counter workspace while the low profile accommodates installation under shelving, ventilation hoods, or overhead storage. The 2-1/2 inch adjustable legs enable precise leveling on uneven surfaces while providing adequate clearance for cleaning beneath the unit. This space-efficient design delivers professional conveyor oven performance without the floor space demands of full-size models.

The stackable capability enables vertical capacity expansion without increasing floor space footprint. Stack two 210HX units to double production capacity while maintaining the same 36.4-inch width and 15.4-inch depth footprint. Each stacked unit operates independently with dedicated controls, enabling simultaneous production of different products at different temperatures and speeds. This vertical expansion capability proves invaluable for operations experiencing growth or those with diverse menus requiring multiple temperature zones.

The 120V electrical operation on standard household/commercial voltage eliminates the specialized electrical service required by higher-voltage equipment. The NEMA 5-15P standard three-prong plug enables plug-and-play installation with conventional 15-amp circuits available in virtually every commercial kitchen. The 14.2-amp draw fits comfortably within standard 15-amp circuit capacity, simplifying installation and eliminating the electrical upgrade costs associated with 208V or 240V equipment. This standard voltage operation provides maximum installation flexibility, enabling placement anywhere 120V power is available.

The comprehensive certification portfolio including UL listing, CSA certification, and NSF approval confirms compliance with the most stringent safety and sanitation standards for commercial cooking equipment. The UL listing ensures electrical safety and proper construction, the CSA certification provides Canadian market approval, and the NSF approval verifies that materials and design meet food equipment sanitation requirements. These certifications demonstrate commitment to safety and quality while ensuring regulatory compliance in commercial foodservice installations.

Manufactured in Smithville, Tennessee by Star Manufacturing International with decades of commercial cooking equipment expertise, the 210HX delivers proven performance backed by American craftsmanship and engineering excellence. From pizzerias requiring consistent automated pizza production to sandwich shops seeking efficient toasting capability, from convenience stores developing fresh food programs to food trucks needing compact automated cooking, the Star 210HX provides the professional performance, innovative quartz heating technology, and space-efficient design that commercial operations demand.

Experience professional automated baking performance – where Star's 210HX delivers high-power quartz infrared heating with forced convection, independent top and bottom heat controls, and 30 pizzas per hour capacity on standard 120V electrical service in a compact countertop footprint.
