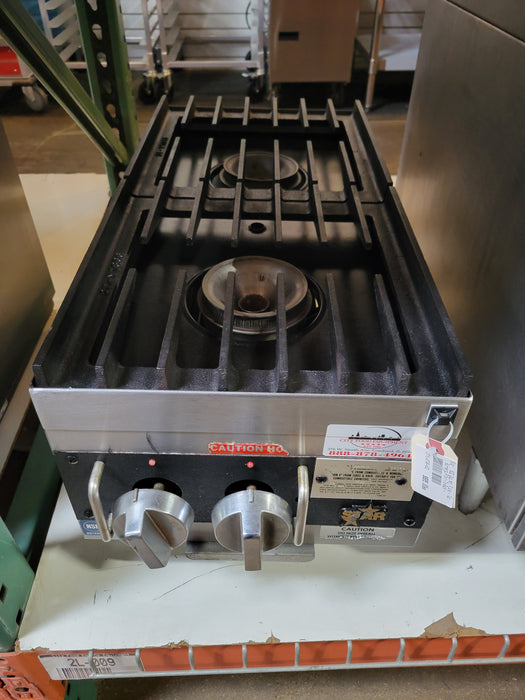

Star 602HF 12" Gas Hotplate w/ (2) Burners & Manual Controls, Convertible
The Star Manufacturing Star-Max 602HF is a professional-grade 2-burner commercial gas hot plate engineered for years of maintenance-free operation in the most demanding foodservice environments. Built to outlast the competition, this compact 12-inch wide countertop unit delivers an impressive combined 50,000 BTU output through two high-performance cast iron burners, giving chefs the intense, responsive heat required for sautéing, simmering, boiling, and sauce work in busy restaurants, diners, catering kitchens, and institutional cooking operations. The Star-Max 602HF ships ready for natural gas service with a propane conversion kit included, making it one of the most versatile and deployment-ready hot plates in its class. Manufactured in the USA by Star Manufacturing International Inc. and cULus certified with UL EPH sanitation certification, the 602HF represents a trusted, code-compliant solution for commercial kitchens that demand reliable performance day after day.
High-Output Cast Iron Burners
Each burner on the Star-Max 602HF delivers 25,000 BTU of cooking power for a combined total of 50,000 BTU across two burners. The heavy-duty cast iron burner construction maximizes heat distribution and provides precise temperature control, ensuring consistent cooking results across every station. Standing pilots on each individual burner allow for fast, reliable ignition every time — no electronic igniter failures, no delays.
Simple, Durable Manual Controls
The 602HF features a straightforward manual on/off control valve with a convenient quarter-turn action for quick, precise temperature adjustments even during a high-volume service rush. Heavy-duty metal control knobs are built to withstand constant daily use. The cool-to-the-touch stainless steel bull nose front panel protects knobs from heat and provides operators with a comfortable, safe work zone at the front of the unit.
Heavy-Duty Cast Iron Grates
The Star-Max 602HF is fitted with heavy-duty cast iron cooking grates that are designed to withstand the rigors of constant commercial use. These grates provide a stable, level support platform for pots, pans, and cookware of varying sizes, from small sauce pans to large stock pots, making this unit a flexible workhorse in any kitchen line configuration.
Durable All-Steel Construction
The unit body and drip pan are constructed of aluminized steel for long-lasting durability and resistance to the high-heat environment of commercial kitchen operation. The front panel and bull nose are crafted from stainless steel, providing a clean, professional appearance that is easy to wipe down and maintain. This combination of materials balances structural strength, heat resistance, and sanitary upkeep requirements.
Natural Gas Ready — Propane Convertible
Every Star-Max 602HF ships from the factory configured for natural gas service with a 3/4-inch N.P.T. male gas connection. A complete propane conversion kit is included with each unit, allowing field conversion simply by swapping orifices and adjusting the regulator setting — no special tools or technician required. This dual-fuel flexibility makes the 602HF easy to deploy in virtually any commercial kitchen regardless of available gas supply.
Easy Cleaning & Maintenance
The Star-Max 602HF includes a removable aluminized steel crumb and drip tray that collects food debris and grease, making routine cleaning fast and hassle-free. Combined with the smooth stainless steel front panel surfaces, end-of-shift cleandowns are quick and efficient — a critical feature in fast-paced commercial kitchen environments where downtime must be minimized.
Adjustable Legs for Stable Countertop Installation
The 602HF comes equipped with heavy-duty 4-inch adjustable legs that extend up to 1.625 inches for leveling on uneven countertop surfaces. The unit is certified for installation on non-combustible countertops using the provided legs, and can also be placed on a minimum 27-inch tall stand over a combustible floor, with a minimum 3-inch clearance required on the back and both sides from any combustible surface.
Ideal Applications
The Star-Max 602HF is an ideal choice for a wide range of foodservice operations that need concentrated, high-BTU cooking power in a compact countertop footprint. Common applications include:
- Restaurants and full-service diners requiring supplemental or backup cooking capacity
- Catering operations needing portable, powerful burner stations
- Hotel and banquet kitchens with high-volume short-order cooking demands
- Cafeterias and institutional kitchens handling large-batch sauces and soups
- Food trucks and concession stands with limited space but high heat output requirements
- Ghost kitchens and commissary operations optimizing every square foot of cooking surface
Performance Specifications
| Model | Star-Max 602HF |
| Number of Burners | 2 |
| Total BTU Output | 50,000 BTU (25,000 BTU per burner) |
| Height | 11.9 in. (302.3 mm) |
| Width | 12.2 in. (310 mm) |
| Depth | 28.9 in. (734.1 mm) |
| Gas Connection | 3/4 in. (1.9 cm) N.P.T. Male |
| Gas Type | Natural Gas (LP conversion kit included) |
| Shipping Weight | 66 lb. (30 kg) |
| Installed Weight | 75 lb. (34.1 kg) |
| Leg Height | 4 in. adjustable (up to 1.625 in. / 41 mm) |
| Burner Type | Cast iron, standing pilot ignition |
| Grates | Heavy-duty cast iron |
| Body Construction | Aluminized steel body and drip pan, stainless steel front and bull nose |
| Certifications | cULus, UL EPH Sanitation Certified |
| Country of Origin | Made in the USA |
Why Choose the Star-Max 602HF for Your Commercial Kitchen?
When countertop space is at a premium but cooking power cannot be compromised, the Star Manufacturing Star-Max 602HF delivers exactly what commercial kitchens need. Its compact 12-inch wide profile fits into tight line configurations, expo stations, or prep areas without sacrificing BTU output — 50,000 combined BTU is serious cooking firepower packed into one of the smallest footprints available in commercial hot plate equipment today.
The simplicity of the manual valve controls and standing pilot ignition system is a deliberate design choice. There are no electronic components to fail during service, no circuit boards to replace, and no complex troubleshooting required. When a burner needs to come on, it comes on — immediately and reliably. This no-nonsense approach to design translates directly to lower maintenance costs and less unplanned downtime over the life of the equipment.
Star Manufacturing's decades of experience building commercial cooking equipment for the North American foodservice market is reflected in every aspect of the 602HF — from the heavy-duty cast iron grates that handle the abuse of constant cookware loading and unloading, to the aluminized steel construction that resists the long-term effects of sustained high-heat operation. The Star-Max 602HF is built by professionals, for professionals, and it shows.
For commercial kitchen operators seeking a dependable, high-BTU, easy-to-clean countertop gas hot plate that delivers maximum value and cooking performance, the Star Manufacturing Star-Max 602HF is the clear choice.
