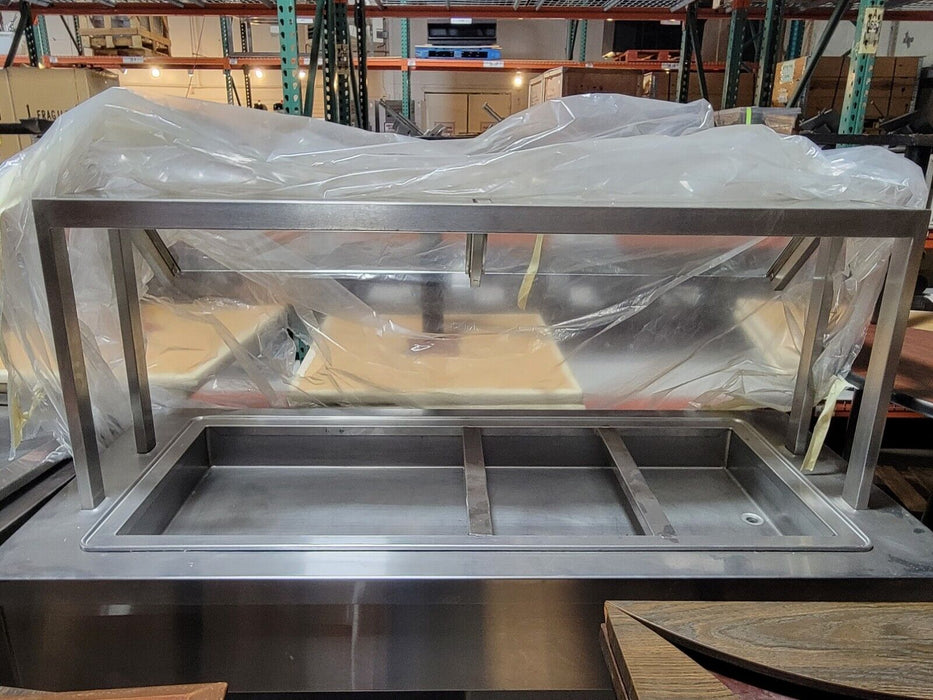

TOP: Constructed of 18 gauge, type 304 stainless steel, die
stamped with a raised perimeter bead. There shall be a solid
vinyl gasket under the beaded edge to form a seal to the
counter top, thus preventing seepage or marring of the
counter top. Embossed mounting lugs are provided along the
inner surface of the top to hold the removable separator
channels in place.
LINER: The inner liner shall be 18 gauge, type 304 stainless
steel, one piece construction, all welded, ground and polished to a uniform finish. All corners are coved with a minimum 1/4" radius. The liner has copper tubing firmly soldered
to the exterior bottom. A 3/4" dia. drain with strainer, 4" PVC
nipple, and valve is provided.
INSULATION: The pan is fully insulated with high density
polystyrene, 1" thick on all sides, 1-1/2" thick on the bottom
and enclosed with a 22 gauge galvanized steel outer case.

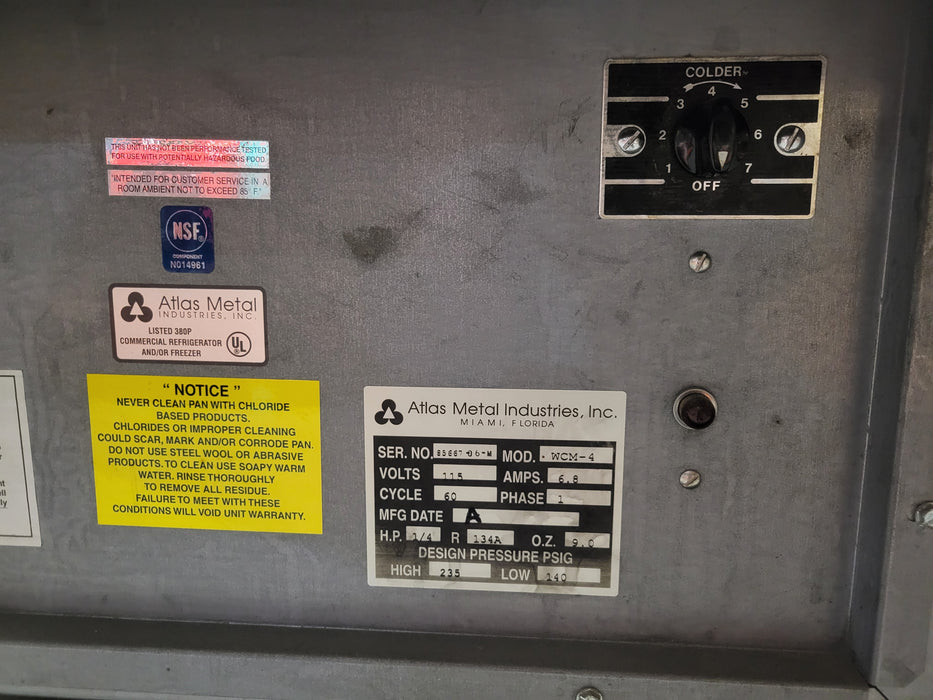

REFRIGERATION SYSTEM: The compressor housing shall
be fabricated from 14 gauge galvanized and bolted to the
base of the unit. A fully self-contained condensing unit is provided with a hermetically sealed compressor and a thermostat control. The system is fully charged with CFC free
refrigerant and ready to operate.
68" x 30"
