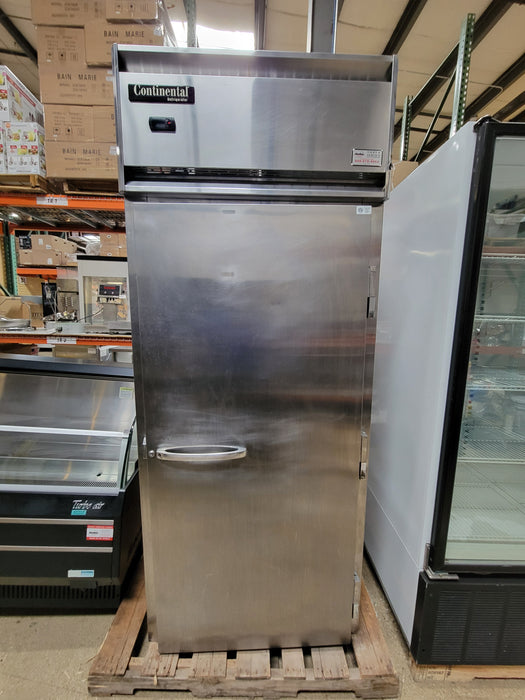

Used Continental DL1RI 1-Section Roll-In Refrigerator with 66¼” Cart Capacity

The Continental Refrigerator DL1RI Designer Line Roll-In Refrigerator represents professional single-section roll-in cooling performance engineered for bakeries, catering operations, banquet facilities, and commercial kitchens requiring efficient mobile rack storage. This innovative 1-section roll-in refrigerator features 66¼-inch cart capacity with a 66½-inch high door opening, 32 cubic feet of refrigerated storage, and unique top-mounted refrigeration system that separates the cooling equipment from the food zone for superior sanitation and accessibility. Manufactured by Continental Refrigerator in Bensalem, Pennsylvania with environmentally-safe R-134a refrigerant, the DL1RI features self-contained "plug" refrigeration system rated at 2560 BTU/Hr with 1/3 HP condensing unit, electronic controller with digital display and hi-low temperature alarm, and advanced top and side air distribution ducts that evenly distribute cold air to all pan levels. Designed to maintain NSF-7 temperatures in 100°F ambient conditions, this professional roll-in refrigerator features removable stainless steel rack guides and ramp, reinforced stainless steel floor, 3-inch non-CFC polyurethane foam insulation, and innovative cabinet design where upper side panels and refrigeration system can be removed and reinstalled at job site for confined space installations. Operating on standard 115V/60Hz/1-phase electrical service with 10-foot cord and NEMA 5-15P plug, the Continental DL1RI combines professional performance with installation flexibility and exceptional accessibility.

Model DL1RI (Base Configuration)

• Exterior Front: Stainless steel
• End Panels: Aluminum
• Interior: Aluminum
• Professional Appearance: Stainless steel front with durable aluminum construction
• Value Configuration: Optimal balance of performance and cost efficiency

Professional Roll-In Design with 66¼-Inch Cart Capacity

• 66½-Inch High Door Opening - Extra-tall opening accommodates 66¼-inch high mobile racks
• Maximum Rack Size: 27"W x 29"D x 66¼"H including wheels
• Single Full-Height Cart Storage - Roll entire sheet pan rack directly into refrigerator
• Efficient Workflow - Eliminate manual pan transfer between racks and refrigerator
• Labor Savings - Roll-in capability reduces handling time and labor costs
• Removable Stainless Steel Ramp - Professional ramp enables smooth cart rolling
• Reinforced Stainless Steel Floor - Heavy-duty floor withstands loaded cart weight

Top-Mounted Refrigeration System

• Accessible on Top of Cabinet - Service access from above without entering food zone
• Separate from Food Zone - Refrigeration isolated from product storage area
• Superior Sanitation - Food zone remains uncontaminated during service procedures
• Self-Contained "Plug" System - Complete refrigeration system in removable module
• Performance-Rated Design - Professional refrigeration engineered for commercial demands
• Easy Serviceability - Top access simplifies maintenance and repairs

Innovative Removable Panel Design for Confined Installations

• Removable Cabinet Upper Side Panels - Upper panels remove for narrow doorway access
• Removable Refrigeration "Plug" System - Entire refrigeration module removes for installation
• Reinstalled at Job Site - Components easily reinstalled after unit positioned
• Confined Space Solution - Enables installation through standard doorways and tight spaces
• Freight Elevator Compatible - Reduced height enables elevator transport to upper floors
• Flexible Installation - Solve challenging installation constraints with modular design

Advanced Temperature Control System

• Electronic Controller - Digital temperature control for precise regulation
• Digital Display - Clear readout shows actual cabinet temperature
• Hi-Low Temperature Alarm - Audible alerts warn of temperature excursions
• NSF-7 Temperature Compliance - Maintains proper food safety temperatures
• 100°F Ambient Rating - Designed to perform in hot kitchen environments
• Reliable Performance - Electronic control ensures consistent temperature maintenance

Superior Air Distribution System

• Top and Side Air Distribution Ducts - Multiple airflow paths for uniform cooling
• Evenly Distributed Air to All Pan Levels - Consistent temperature from top to bottom
• Eliminates Hot Spots - Comprehensive air circulation prevents temperature variations
• Uniform Product Cooling - Every rack position receives identical cooling performance
• Professional Results - Even cooling maintains product quality throughout cabinet

Environmentally-Safe R-134a Refrigerant System

• R-134a Refrigerant - Environmentally-safe refrigerant without ozone depletion
• 1/3 HP Condensing Unit - Commercial-grade compressor for reliable performance
• 2560 BTU/Hr Capacity - Professional cooling capacity rated at +25°F evaporator, 90°F ambient
• Automatic Hot Gas Condensate Evaporator - Self-evaporating condensate system eliminates manual draining
• Energy Efficient - Optimized refrigeration system minimizes energy consumption
• EPA Compliant - Meets environmental regulations for commercial refrigeration

Professional Door System

• Self-Closing Door - Automatic closure ensures door never left open accidentally
• Cam Action Lift-Off Hinges - Removable door simplifies cleaning and service access
• Magnetic Snap-In Door Gasket - Easy gasket replacement without tools or adhesive
• Smooth Polished Chrome Workflow Handle - Durable chrome handle withstands constant use
• Cylinder Lock in Door - Keyed lock provides security for valuable inventory
• 27⅜-Inch Clear Door Width - Wide opening enables easy rack access

Premium Insulation & Construction

• 3-Inch Non-CFC Polyurethane Foam Insulation - Thick insulation maintains temperature and efficiency
• CFC-Free Construction - Environmentally-responsible insulation without ozone-depleting chemicals
• Energy Efficient - Superior insulation reduces cooling costs and compressor run time
• Temperature Stability - Thick insulation maintains consistent internal temperatures
• Stainless Steel Front - Durable stainless steel front panel resists damage and corrosion
• Aluminum End Panels - Lightweight yet durable aluminum construction

Removable Stainless Steel Rack Guides

• Removable Design - Rack guides lift out for complete interior cleaning access
• Stainless Steel Construction - Corrosion-resistant guides withstand commercial cleaning
• Easy Cleaning - Removable guides enable thorough sanitation of interior surfaces
• Precise Cart Positioning - Guides ensure proper rack alignment and stability
• Professional Serviceability - Removable components simplify maintenance procedures

Standard 115V Electrical Operation

• 115V/60Hz/1-Phase - Standard North American electrical specification
• 6.5 Amp Draw - Moderate electrical consumption for efficient operation
• 10-Foot Cord with Plug - Factory-installed cord simplifies installation
• NEMA 5-15P Plug - Standard plug fits conventional electrical outlets
• Plug-and-Play Installation - No hardwiring required, ready for immediate use
• Convenient Power Connection - Standard voltage eliminates special electrical requirements

Substantial 32 Cubic Feet Capacity

• 32 Cubic Feet Net Capacity - Generous storage volume for mobile rack and sheet pans
• Single Rack Configuration - Optimized for one full-height mobile rack
• Efficient Space Utilization - Vertical storage maximizes product capacity in compact footprint
• Professional Storage Volume - Substantial capacity for bakery, catering, and banquet operations

Made in USA Quality

• Manufactured in Bensalem, Pennsylvania - American manufacturing with quality oversight
• Continental Refrigerator Heritage - Decades of commercial refrigeration expertise
• Quality Construction - Built to demanding commercial foodservice standards
• Domestic Support - US-based service and parts support network

Ideal Applications

The Continental Refrigerator DL1RI Designer Line Roll-In Refrigerator excels in commercial foodservice operations requiring efficient mobile rack refrigeration:

Bakery Operations

• Commercial Bakeries - Proof box to refrigerator workflow with mobile rack systems
• Wholesale Bakeries - Efficient cooling for production sheet pan racks
• Artisan Bread Bakeries - Retard dough on mobile racks for controlled fermentation
• Pastry Production - Cool sheet pan racks of pastries, cakes, and desserts
• Hotel Bakeries - In-house bakery production with efficient rack refrigeration

Catering & Banquet Operations

• Catering Companies - Pre-plate and refrigerate full racks for event transport
• Banquet Facilities - Efficient storage for pre-plated banquet service
• Conference Centers - Large-volume meal preparation and storage
• Off-Premise Catering - Mobile rack system simplifies event loading and transport
• Event Venues - Flexible refrigeration for varied catering requirements

Hotel & Resort Foodservice

• Hotel Kitchens - Banquet and room service preparation with rack efficiency
• Resort Food Production - Multi-outlet food prep with centralized refrigeration
• Convention Center Kitchens - High-volume production for large events
• Casino Foodservice - 24-hour operation with efficient rack workflow
• Cruise Ship Galleys - Space-efficient refrigeration for confined kitchens

Institutional & Healthcare Foodservice

• Hospital Food Service - Tray line preparation with mobile rack refrigeration
• Nursing Home Kitchens - Efficient meal prep and storage for resident dining
• College & University Dining - High-volume production with rack efficiency
• School Foodservice - Batch cooking and storage for cafeteria programs
• Military Dining Facilities - Large-scale meal production and storage

Restaurant & Foodservice

• Fine Dining Restaurants - Prep refrigeration for multi-course service
• High-Volume Restaurants - Efficient prep and storage for busy operations
• Restaurant Commissaries - Centralized production with rack refrigeration
• Ghost Kitchens - Delivery-focused operations with efficient workflow
• Multi-Unit Restaurant Support - Central kitchen production and distribution

Performance Specifications

• Model: Continental Refrigerator DL1RI Designer Line
• Type: Single-section roll-in refrigerator
• Configuration: 1-section with 66¼" cart capacity
• Net Capacity: 32 cubic feet (906 liters)
• Number of Doors: 1 full-height door
• Rack Capacity: 1 mobile rack (rack not supplied)
• Maximum Rack Size: 27"W x 29"D x 66¼"H including wheels
• Door Opening Height: 66½ inches (1676mm)
• Clear Door Width: 27⅜ inches (695mm)
• Overall Width: 35¼ inches (895mm)
• Overall Depth: 35⅜ inches (899mm) including handles
• Depth Less Door: 32 inches (813mm)
• Depth Door Open 90°: 65 inches (1651mm)
• Overall Height: 86 inches (2184mm)
• Interior Depth: 29¼ inches (743mm)
• Refrigeration System: Self-contained "plug" system, top-mounted
• Condensing Unit: 1/3 HP commercial-grade compressor
• Cooling Capacity: 2560 BTU/Hr (rated at +25°F evaporator, 90°F ambient)
• Refrigerant: R-134a environmentally-safe refrigerant
• Condensate System: Automatic hot gas condensate evaporator
• Temperature Control: Electronic controller with digital display
• Temperature Alarm: Hi-low alarm system
• Air Distribution: Top and side air distribution ducts
• Temperature Performance: NSF-7 temperatures in 100°F ambient
• Insulation: 3-inch non-CFC polyurethane foam
• Floor: Reinforced stainless steel
• Rack Guides: Removable stainless steel
• Ramp: Removable stainless steel
• Door Type: Self-closing full-height door
• Door Handle: Smooth polished chrome workflow handle
• Door Hinges: Cam action lift-off hinges
• Door Gasket: Magnetic snap-in design
• Door Lock: Cylinder lock included
• Electrical - Standard: 115V/60Hz/1-Phase
• Amperage: 6.5 amps total draw
• Feed Wires: 3 wires including ground
• Power Cord: 10-foot cord attached
• Plug Type: NEMA 5-15P plug
• Exterior Front: Stainless steel (DL1RI base model)
• End Panels: Aluminum (DL1RI base model)
• Interior: Aluminum (DL1RI base model)
• Removable Components: Upper side panels and refrigeration system
• Installation Feature: Components removable/reinstallable at job site
• Clearance Requirements - Top: Minimum 12 inches if against wall or low ceiling
• Clearance Requirements - Sides/Rear: Minimum 3 inches if against wall
• Weight - Uncrated Standard: 330 lbs (150 kg)
• Weight - Uncrated Stainless: 405 lbs (184 kg)
• Weight - Crated Standard: 415 lbs (188 kg)
• Weight - Crated Stainless: 505 lbs (229 kg)
• Crated Height: 90 inches (2286mm)
• Crated Width: 43 inches (1092mm)
• Crated Depth: 42 inches (1067mm)
• Crated Volume: 94 cubic feet (2661 liters)
• Manufacturer: Continental Refrigerator, Bensalem, Pennsylvania
• Manufacturing: Made in USA

Why Choose the Continental Refrigerator DL1RI?

The Continental Refrigerator DL1RI Designer Line Roll-In Refrigerator represents innovative commercial refrigeration engineering specifically designed for operations where mobile rack workflow defines production efficiency. The professional 66¼-inch cart capacity with 66½-inch high door opening accommodates standard full-height mobile racks used throughout commercial foodservice, enabling operators to roll entire sheet pan racks directly from production areas into refrigeration without manual pan transfer. This roll-in capability transforms workflow efficiency by eliminating the time-consuming and labor-intensive process of transferring individual sheet pans between production racks and stationary refrigeration shelves. For bakeries producing hundreds of sheet pans daily, catering operations preparing large events, or institutional kitchens serving thousands of meals, this workflow efficiency translates directly to reduced labor costs and improved productivity.

The innovative top-mounted refrigeration system with accessibility separate from the food zone represents a fundamental advancement in commercial refrigerator sanitation and serviceability. By positioning all refrigeration components on top of the cabinet rather than beneath or within the food storage area, Continental eliminates the contamination risks inherent to conventional designs where service procedures require technicians to access refrigeration components through the food zone. The top-mounted "plug" refrigeration system enables complete service access from above, ensuring that maintenance procedures never compromise food safety or require emptying the cabinet. This sanitation advantage proves particularly valuable for healthcare foodservice, institutional operations, and any facility where maintaining the highest food safety standards is non-negotiable.

The revolutionary removable cabinet upper side panels and refrigeration "plug" system solve the installation challenges that have historically limited roll-in refrigerator placement. The complete refrigeration module and upper side panels remove quickly without special tools, reducing the unit's height and width for transport through standard doorways, freight elevators, and confined spaces. Once positioned in the final location, the components reinstall easily to restore full operational capability. This modular design enables roll-in refrigerator installation in upper floor kitchens, renovated facilities with narrow doorways, and tight spaces where conventional roll-in units physically cannot access. The installation flexibility transforms space planning for facilities where roll-in efficiency was previously impossible due to access constraints.

The electronic controller with digital display and hi-low temperature alarm provides the precise monitoring and control essential for food safety compliance and product quality protection. The digital display shows actual cabinet temperature at a glance, enabling operators to verify proper cooling performance without opening the door. The hi-low alarm system provides immediate notification of temperature excursions, alerting staff to equipment issues, door left open, or other conditions that could compromise food safety. This advanced monitoring capability proves critical for HACCP compliance, health department inspections, and operations where temperature documentation and immediate problem notification are essential for protecting valuable inventory and maintaining food safety standards.

The superior air distribution system with top and side air distribution ducts ensures uniform cooling to all pan levels throughout the mobile rack. Unlike conventional refrigerators with single air outlets that create temperature stratification and hot spots, the DL1RI's comprehensive duct system delivers cold air evenly from multiple directions. This uniform airflow eliminates the common problem where products on upper rack positions warm while lower positions over-cool, ensuring consistent temperature throughout the entire rack. For bakeries retarding dough, caterers storing pre-plated meals, or any operation requiring uniform product cooling, this even air distribution maintains quality and food safety across every rack position.

The environmentally-safe R-134a refrigerant system with 1/3 HP condensing unit and 2560 BTU/Hr capacity delivers professional cooling performance designed specifically for demanding commercial environments. The refrigeration system maintains NSF-7 temperatures even in 100°F ambient conditions, ensuring reliable performance in hot commercial kitchens where conventional refrigerators struggle. The automatic hot gas condensate evaporator eliminates manual drain pan emptying, simplifying maintenance while preventing the overflow issues that create slip hazards and sanitation problems. The environmental responsibility of R-134a refrigerant ensures compliance with EPA regulations while providing the cooling performance that commercial operations demand.

The professional door system with self-closing design, cam action lift-off hinges, and magnetic snap-in gasket represents thoughtful engineering focused on operational efficiency and serviceability. The self-closing door ensures that the refrigerator door never remains open accidentally after rack loading, maintaining temperature and preventing energy waste. The cam action lift-off hinges enable complete door removal without tools, simplifying deep cleaning procedures and gasket replacement. The magnetic snap-in door gasket replaces quickly without adhesive or special tools, reducing maintenance costs and downtime when gasket replacement becomes necessary. The smooth polished chrome workflow handle withstands the constant use inherent to high-volume operations while maintaining professional appearance.

The substantial 32 cubic feet capacity optimized for single full-height mobile rack provides efficient refrigerated storage in a compact footprint. The vertical storage configuration maximizes product capacity while minimizing floor space consumption, critical for operations where kitchen real estate is limited and expensive. The reinforced stainless steel floor withstands the substantial weight of fully-loaded mobile racks without deflection or damage, while the removable stainless steel ramp enables smooth rolling without damaging the floor or creating operational obstacles. The removable stainless steel rack guides ensure proper rack alignment and prevent lateral movement during transport and storage.

The premium 3-inch non-CFC polyurethane foam insulation throughout the cabinet provides exceptional thermal efficiency that reduces operating costs and maintains temperature stability. The thick insulation minimizes heat transfer into the refrigerated space, reducing compressor run time and energy consumption while maintaining more consistent internal temperatures. The CFC-free construction demonstrates environmental responsibility while providing the superior insulating properties essential for commercial refrigeration efficiency. This energy-efficient insulation proves particularly valuable in operations with high electricity costs or sustainability objectives where reducing energy consumption provides both environmental and economic benefits.

The standard 115V/60Hz/1-phase electrical operation with factory-installed 10-foot cord and NEMA 5-15P plug simplifies installation and eliminates the electrical contractor costs associated with hardwired equipment. The moderate 6.5 amp draw enables operation on standard electrical circuits without requiring dedicated high-amperage service, while the plug-and-play installation enables immediate operation upon delivery. This installation simplicity reduces setup costs and time while providing flexibility for equipment relocation as operational requirements change. The standard voltage eliminates the special electrical infrastructure required by high-voltage equipment, enabling installation anywhere conventional electrical service is available.

Available in three construction configurations, the DL1RI accommodates diverse operational requirements and budget constraints. The base DL1RI model with stainless steel front and aluminum end panels/interior provides professional performance and appearance for standard commercial applications. The DL1RI-SA upgrade with complete stainless steel exterior and aluminum interior delivers enhanced durability and premium aesthetics for upscale installations and demanding environments. The DL1RI-SS configuration with stainless steel exterior and interior provides maximum sanitation and durability for healthcare foodservice, pharmaceutical applications, and operations where the highest cleanliness standards are essential. Every configuration delivers identical refrigeration performance with only construction materials and aesthetics differing.

Manufactured by Continental Refrigerator in Bensalem, Pennsylvania with American craftsmanship and quality oversight, the DL1RI represents decades of commercial refrigeration expertise and continuous innovation. The Made in USA construction ensures quality materials, precision assembly, and domestic service support that protects equipment investment and maximizes operational uptime. From commercial bakeries producing hundreds of sheet pans daily to catering operations serving large events, from hotel banquet kitchens preparing multi-course meals to institutional foodservice feeding thousands, the Continental Refrigerator DL1RI Designer Line Roll-In Refrigerator delivers the professional performance, innovative design, and exceptional reliability that mobile rack refrigeration demands.

Experience professional roll-in refrigeration innovation – where Continental Refrigerator DL1RI combines 66¼-inch cart capacity with top-mounted refrigeration system, removable panels for confined installations, and NSF-7 temperature performance in 100°F ambient on standard 115V power.
