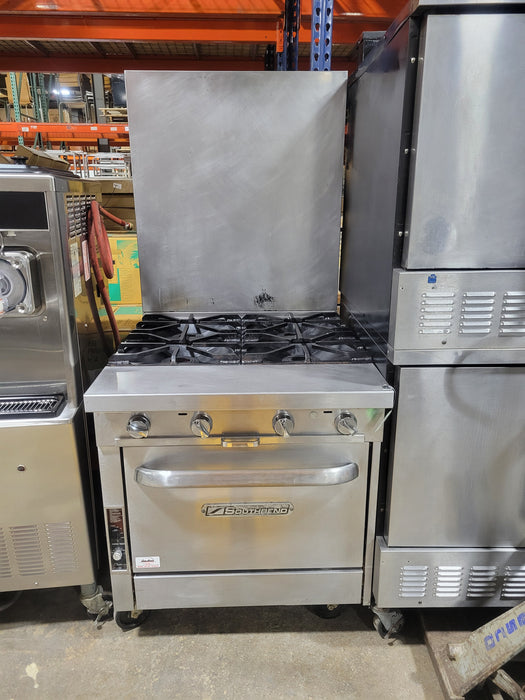

USED Southbend P32A-XX 32" 4 Burner Gas Range w/ Convection

The Southbend P32A-XX represents professional restaurant range performance combining four powerful 45,000 BTU open-top burners with a full-size convection oven in a space-efficient 32-inch sectional design. This commercial-grade gas range delivers exceptional cooking versatility for restaurants, hotels, institutional kitchens, and high-volume foodservice operations requiring both rangetop and oven capacity in a single equipment footprint. Manufactured by Southbend in Fuquay-Varina, North Carolina with American craftsmanship, the P32A-XX features patented Signature Pyromax clog-free burners, two-speed 1/2 HP convection blower motor, porcelain enamel oven interior measuring 14" high x 26" wide x 24" deep, and professional all-stainless steel construction on front, sides, rear, and exterior bottom. The convection oven with standing pilot provides 175°F to 550°F temperature range controlled by "Insta-On" thermostat, three oven racks with five-position side rails, and heavy-duty stainless steel door handle. Operating on 120V/60Hz single-phase electrical service with 5.9 amp draw and 7-foot power cord with ground plug, the Southbend P32A-XX combines 225,000 total BTU capacity (180,000 BTU rangetop, 45,000 BTU oven) with fully insulated construction, removable welded steel top grates, 9-1/4" deep front rail, and 6" adjustable stainless steel legs for professional restaurant cooking performance.

Four Signature Pyromax 45,000 BTU Open-Top Burners

The four patented Signature Pyromax open-top burners deliver 45,000 BTU each for powerful, professional cooking performance. The innovative clog-free burner design prevents the blockages that plague conventional burners, ensuring consistent flame patterns and reliable operation throughout demanding service periods. Each 45,000 BTU burner provides the intense heat required for rapid boiling, high-temperature searing, and professional wok cooking while maintaining precise control for delicate sauces and low-temperature applications. The patented design represents decades of Southbend engineering focused on creating burners that maintain performance in the demanding conditions of commercial kitchens where spills, boil-overs, and heavy use are routine. The removable welded steel top grates provide stable support for heavy stockpots and cookware while lifting off easily for thorough cleaning and burner maintenance.

Professional Convection Oven with Two-Speed Blower

The 45,000 BTU convection oven with 1/2 HP two-speed blower motor delivers professional baking and roasting performance for diverse menu applications. The powerful forced-air circulation ensures even heat distribution throughout the 14" high x 26" wide x 24" deep oven cavity, eliminating the hot spots and temperature variations that compromise baking quality in conventional ovens. The two-speed blower provides operational flexibility - high speed for rapid cooking and maximum heat transfer, low speed for gentle baking and delicate items requiring controlled convection. The substantial oven cavity accommodates full-size sheet pans and multiple racks simultaneously, enabling batch cooking and diverse product preparation in a single cooking cycle. Three oven racks with five-position side rails provide flexible rack placement for different product heights and cooking requirements.

"Insta-On" Thermostat with 175°F to 550°F Range

The professional "Insta-On" thermostat provides precise temperature control across the full 175°F to 550°F (79°C to 288°C) range, accommodating everything from low-temperature warming and proofing to high-heat roasting and baking. The instant-response thermostat maintains consistent oven temperature throughout the cooking cycle, ensuring predictable results and eliminating the temperature swings that affect product quality. The wide temperature range enables diverse applications including bread proofing at low temperatures, standard baking at moderate settings, and high-temperature pizza or roasting at maximum heat. The standing pilot ignition provides reliable flame ignition without electrical components, ensuring dependable oven operation even during power outages.

All-Stainless Steel Construction

The complete stainless steel construction on front, sides, rear, and exterior bottom delivers professional appearance, exceptional durability, and ease of maintenance essential for commercial foodservice environments. The #3 polished 430 and 304 stainless steel exterior resists corrosion from kitchen chemicals, moisture, and grease while maintaining its appearance through years of demanding service. The polished stainless finish wipes clean effortlessly, enabling quick cleaning between services and thorough end-of-day sanitation. The heavy-duty stainless construction withstands the impacts, thermal cycling, and mechanical stress inherent to commercial kitchen operations without denting, warping, or deteriorating. The professional appearance enhances kitchen aesthetics while projecting quality and cleanliness to health inspectors and customers in open-kitchen environments.

Porcelain Enamel Oven Interior

The porcelain enamel oven interior provides durable, easy-to-clean surfaces that withstand the high temperatures and repeated cleaning cycles of commercial baking operations. The smooth porcelain finish resists food particle adhesion and wipes clean with minimal effort, simplifying the sanitation essential for commercial ovens processing diverse products. The enamel coating withstands repeated thermal cycling without cracking, chipping, or deteriorating, maintaining its protective properties and appearance through years of service. The white porcelain interior enhances product visibility, enabling operators to monitor baking progress without opening the door and losing heat. The durable interior construction ensures long service life while maintaining the sanitary conditions required for commercial food production.

Fully Insulated Construction

The fully insulated lining and burner box maintain comfortable kitchen working conditions by containing heat within the range rather than radiating it into the surrounding environment. The complete insulation keeps exterior surfaces cool to the touch while retaining heat where needed for efficient cooking performance. This thermal management reduces the heat load on kitchen air conditioning systems, lowering utility costs and improving operator comfort during extended cooking periods. The insulated construction also enhances fuel efficiency by preventing heat loss, ensuring that BTU input translates directly to cooking performance rather than heating the kitchen. The cool exterior surfaces reduce burn risks from accidental contact during busy service periods.

Heavy-Duty Stainless Steel Door Handle

The professional-grade stainless steel oven door handle provides secure, comfortable grip for frequent door operation throughout service periods. The heavy-duty construction withstands the constant opening and closing cycles inherent to commercial baking operations without loosening, bending, or failing. The stainless steel material resists corrosion and maintains its appearance despite exposure to heat, moisture, and cleaning chemicals. The ergonomic handle design enables comfortable operation even when wearing oven mitts or handling hot products, ensuring safe, efficient oven access during demanding production periods.

32-Inch Sectional Design

The 32-inch sectional width provides substantial cooking capacity while maintaining compatibility with modular kitchen layouts and battery configurations. The sectional design enables multiple units to connect seamlessly for creating custom cooking lines tailored to specific operational requirements. The 1-1/4" front gas manifold couples to adjacent sectional units, while the 1" rear gas connection with male NPT connector simplifies gas service installation. The modular configuration allows operations to start with a single unit and expand capacity by adding sections as volume grows, protecting equipment investment while providing scalability. The unit can occupy any position in a battery configuration, offering maximum layout flexibility for diverse kitchen designs.

Professional Front Rail Design

The 9-1/4" deep front rail provides substantial workspace for utensils, platters, and ingredients while protecting front-mounted controls from heat and splashing. The generous depth accommodates professional cookware and provides comfortable working clearance for operators during cooking procedures. The removable drip tray collects spills and boil-overs, maintaining clean appearance and simplifying cleanup. The front rail depth prevents oversized cookware from overlapping onto control areas where trapped heat could damage components, ensuring long service life when used as intended with appropriately sized cookware.

5-Inch Stainless Steel Flue Riser

The 5-inch high stainless steel flue riser provides proper venting for combustion gases while maintaining compact overall height for standard hood installations. The stainless construction resists corrosion from heat and moisture while maintaining professional appearance. The flue riser directs heat and combustion products upward into the ventilation hood, ensuring proper air quality and comfortable working conditions. The compact height enables installation under standard commercial ventilation hoods without requiring excessive clearances or specialized hood configurations.

120V Single-Phase Electrical Operation

The 120V/60Hz single-phase electrical system with 5.9 amp draw enables connection to standard commercial electrical circuits without requiring specialized high-voltage service. The included 7-foot power cord with ground plug simplifies installation and enables plug-in operation with standard outlets. The low amperage draw allows multiple pieces of equipment on shared circuits, maximizing electrical service efficiency in commercial kitchens. The single-phase power requirement eliminates the complexity and expense of three-phase electrical service while providing reliable power for the convection blower motor and controls.

6-Inch Adjustable Stainless Steel Legs

The 6-inch adjustable stainless steel legs provide proper working height while enabling precise leveling on uneven floors. The adjustable design accommodates floor variations and ensures stable, level installation essential for proper cooking performance and liquid management. The stainless steel construction resists corrosion from floor cleaning chemicals and moisture while supporting the substantial weight of the loaded range. The 6-inch height provides clearance for floor cleaning equipment, enabling thorough sanitation beneath the unit and meeting commercial kitchen cleaning standards.

Ideal Applications

The Southbend P32A-XX excels in diverse commercial cooking environments requiring both rangetop and convection oven capacity:

Full-Service Restaurant Operations

Fine dining restaurants benefit from the professional burner power for sauce preparation, sautéing, and high-heat cooking combined with the convection oven for appetizers, sides, and dessert production. Casual dining operations utilize the versatile cooking capacity for diverse menu items requiring both stovetop and oven preparation. Family restaurants leverage the substantial cooking area for preparing multiple menu items simultaneously during busy service periods. The combination of powerful burners and professional convection oven enables complete meal preparation from a single equipment footprint, maximizing kitchen efficiency while minimizing space requirements.

Hotel & Resort Foodservice

Hotel kitchens serving banquet events, room service, and multiple dining outlets require the versatile cooking capacity that combines professional rangetop performance with convection baking capability. Resort operations with diverse dining venues benefit from the ability to prepare breakfast pastries, lunch entrees, and dinner service items from a single range station. Conference center kitchens utilize the substantial capacity for preparing meals for groups while maintaining quality and consistency. The professional performance and reliable operation ensure that hotel foodservice operations maintain the quality standards expected by discerning guests.

Institutional Foodservice

Hospital kitchens preparing patient meals and cafeteria service benefit from the convection oven for batch cooking while maintaining rangetop capacity for special dietary requirements. College and university dining halls utilize the professional cooking capacity for diverse student meal programs requiring both volume production and menu variety. Corporate cafeterias leverage the efficient cooking capacity for preparing employee meals with limited kitchen space. Senior living communities benefit from the reliable performance for preparing resident meals requiring both stovetop and oven preparation. K-12 school cafeterias use the versatile capacity for preparing scratch-cooked meals meeting nutritional standards.

Catering & Event Operations

Catering companies require the portable efficiency of a self-contained range with both cooking and baking capability for off-site events and temporary kitchens. Banquet facilities benefit from the professional capacity for preparing large-volume events with diverse menu requirements. Country clubs utilize the versatile cooking capacity for member dining, events, and tournament catering. The combination of rangetop and oven capability in a single unit simplifies equipment logistics for catering operations while ensuring professional cooking performance at any venue.

Performance Specifications

• Model: Southbend P32A-XX
• Type: 32" gas range with convection oven base
• Overall Width: 32 inches (813mm)
• Overall Depth: 37-1/2 inches (953mm) including rear gas connection
• Overall Height: 60 inches (1524mm) with 5" flue riser and 6" legs
• Rangetop Burners: Four open-top burners
• Burner Output: 45,000 BTU each (natural gas or propane)
• Total Rangetop BTU: 180,000 BTU
• Burner Type: Signature Pyromax patented clog-free design
• Top Grates: Removable welded steel construction
• Front Rail Depth: 9-1/4 inches (235mm)
• Drip Tray: Removable for easy cleaning
• Oven Type: Convection oven with two-speed blower
• Oven BTU Output: 45,000 BTU (natural gas or propane)
• Total Gas Consumption: 225,000 BTU/hour (rangetop and oven combined)
• Oven Ignition: Standing pilot (electronic ignition available as no-charge option)
• Oven Interior Dimensions: 14" high x 26" wide x 24" deep
• Oven Interior: Porcelain enamel finish
• Oven Racks: Three racks included
• Rack Positions: Five-position side rails
• Blower Motor: 1/2 HP two-speed motor
• Thermostat Type: "Insta-On" analog control
• Temperature Range: 175°F to 550°F (79°C to 288°C)
• Oven Door Handle: Heavy-duty stainless steel
• Electrical Requirements: 120V/60Hz single-phase
• Electrical Draw: 5.9 amps
• Power Cord: 7-foot cord with ground plug included
• Gas Connection: 1-1/4" front manifold, 1" rear NPT male connector
• Natural Gas Pressure: Minimum 7" water column
• Propane Gas Pressure: Minimum 11" water column
• Gas Regulation: External pressure regulator required (not included)
• Exterior Construction: All stainless steel front, sides, rear, and exterior bottom
• Stainless Steel Type: #3 polished 430 and 304 stainless steel
• Insulation: Fully insulated lining and burner box
• Flue Riser: 5" high stainless steel (standard)
• Legs: 6" adjustable stainless steel legs (standard)
• Clearances - Non-combustible: Zero clearance sides, 2" clearance behind blower motor
• Clearances - Combustible: 13" (330mm) sides, 6" (152mm) rear
• Sectional Design: Compatible with battery configurations, can occupy any position
• Shipping Crate Dimensions: 39"W x 42.5"H x 44"D
• Shipping Volume: 42.2 cubic feet (1.19 cubic meters)
• Shipping Weight: 670 pounds (303.9 kg)
• Installation: Vented hood installation recommended
• Use: Intended for commercial use only, not for household use
• Manufacturer: Southbend, Fuquay-Varina, North Carolina, USA

Why Choose the Southbend P32A-XX?

The Southbend P32A-XX represents the ideal combination of professional rangetop cooking power and versatile convection baking capacity in a space-efficient 32-inch footprint designed specifically for commercial kitchens requiring maximum cooking capability without excessive floor space consumption. The four patented Signature Pyromax 45,000 BTU burners deliver the intense heat required for professional cooking techniques including high-temperature searing, rapid boiling for pasta and vegetables, and powerful wok cooking for Asian cuisine, while maintaining precise control for delicate sauce preparation and low-temperature applications. The innovative clog-free burner design prevents the flame pattern disruptions and maintenance issues that plague conventional burners, ensuring consistent performance throughout demanding service periods when reliability cannot be compromised.

The professional convection oven with 1/2 HP two-speed blower motor transforms the P32A-XX from a simple range into a complete cooking station capable of handling diverse menu requirements from a single equipment footprint. The forced-air convection ensures even heat distribution throughout the oven cavity, eliminating the temperature variations and hot spots that cause uneven baking in conventional ovens. The two-speed blower provides operational flexibility essential for commercial baking - high speed for rapid cooking and maximum browning, low speed for gentle baking of delicate items requiring controlled heat. This versatile convection performance enables operations to bake breakfast pastries, roast vegetables, finish entrees, and prepare desserts using the same oven, maximizing equipment utilization while minimizing the number of specialized pieces required in the kitchen.

The substantial 14" high x 26" wide x 24" deep oven cavity accommodates full-size sheet pans and multiple rack positions, enabling batch cooking and diverse product preparation in single cooking cycles. The three included oven racks with five-position side rails provide flexible configuration for different product heights and cooking requirements, allowing operators to customize rack spacing based on specific menu items. The generous oven capacity proves particularly valuable for operations preparing multiple items simultaneously or those requiring batch production for advance preparation and service efficiency. The ability to fill the oven completely while maintaining even heat distribution maximizes productivity and energy efficiency.

The "Insta-On" thermostat with 175°F to 550°F temperature range provides exceptional versatility for diverse cooking applications. The wide temperature span accommodates low-temperature warming and proofing at 175°F, standard baking temperatures for breads and pastries in the mid-range, and high-heat roasting and pizza baking at maximum settings approaching 550°F. The instant-response thermostat maintains consistent temperature throughout the cooking cycle, ensuring predictable results and eliminating the temperature swings that affect rising, browning, and internal doneness. The standing pilot ignition provides reliable operation without electrical complexity, ensuring dependable oven performance even during power disruptions that would disable electronic ignition systems.

The all-stainless steel construction on front, sides, rear, and exterior bottom delivers the professional appearance, exceptional durability, and ease of maintenance that commercial operations demand. The #3 polished 430 and 304 stainless steel exterior withstands the impacts, thermal cycling, chemical exposure, and mechanical stress inherent to commercial kitchens without denting, warping, corroding, or deteriorating. The polished stainless finish maintains its appearance through years of service while wiping clean effortlessly, enabling the quick cleaning between services and thorough end-of-day sanitation essential for commercial foodservice operations. The professional appearance enhances kitchen aesthetics while projecting quality and cleanliness to health inspectors, customers in open-kitchen environments, and staff who take pride in working with professional equipment.

The porcelain enamel oven interior provides durable, easy-to-clean surfaces specifically engineered for the demanding conditions of commercial baking. The smooth porcelain finish resists food particle adhesion and wipes clean with minimal effort, simplifying the sanitation essential for ovens processing diverse products throughout service periods. The white porcelain interior enhances product visibility, enabling operators to monitor baking progress through the oven window without opening the door and losing heat that would extend baking times and waste energy. The durable enamel coating withstands repeated thermal cycling and cleaning without cracking, chipping, or deteriorating, maintaining its protective properties and sanitary conditions through years of commercial service.

The fully insulated construction throughout the lining and burner box maintains comfortable kitchen working conditions by containing heat within the range rather than radiating it into the surrounding environment. The complete insulation keeps exterior surfaces cool to the touch, reducing burn risks from accidental contact during busy service periods while improving operator comfort by minimizing radiant heat exposure. The thermal containment also enhances fuel efficiency by ensuring that BTU input translates directly to cooking performance rather than heating the kitchen, reducing gas consumption and lowering operating costs. The insulated construction reduces the heat load on kitchen air conditioning systems, providing additional energy savings while maintaining comfortable working conditions for kitchen staff.

The removable welded steel top grates provide stable, secure support for heavy stockpots, braziers, and large-format cookware while lifting off easily for thorough cleaning and burner maintenance. The welded construction ensures structural integrity that withstands the weight and thermal cycling of commercial cooking without warping or failing. The removable design enables complete cleaning access to burners and the rangetop surface, ensuring thorough sanitation and proper burner maintenance that maintains optimal performance. The professional grate design accommodates diverse cookware sizes and enables efficient use of the full cooking surface.

The 9-1/4" deep front rail provides substantial workspace for utensils, ingredients, and plated items while protecting front-mounted controls from heat and splashing. The generous depth prevents oversized cookware from overlapping onto the front rail where trapped heat could damage electrical components and controls, ensuring long service life when used with appropriately sized cookware as intended. The removable drip tray collects spills and boil-overs, maintaining clean appearance and simplifying cleanup procedures. The professional front rail design reflects understanding of commercial kitchen workflows and the importance of accessible workspace during demanding service periods.

The 32-inch sectional design provides substantial cooking capacity while maintaining compatibility with modular kitchen layouts and battery configurations. The ability to connect multiple sections using the 1-1/4" front gas manifold enables custom cooking line creation tailored to specific operational requirements, protecting equipment investment while providing scalability as operations grow. The unit can occupy any position in a battery, offering maximum layout flexibility for diverse kitchen designs and enabling operators to start with a single unit and expand capacity by adding sections as volume increases. This modular approach minimizes initial investment while ensuring that equipment capacity can grow with business demands.

The 120V single-phase electrical operation with 5.9 amp draw and included 7-foot power cord with ground plug simplifies installation and enables connection to standard commercial electrical circuits. The low amperage draw allows multiple pieces of equipment on shared circuits, maximizing electrical service efficiency in commercial kitchens where circuit availability often limits equipment placement. The plug-in operation eliminates the complexity and expense of hardwired electrical connections while providing the flexibility to relocate equipment if kitchen layouts change. The single-phase power requirement avoids the cost and complexity of three-phase electrical service while providing reliable power for the convection blower motor and controls.

The 6-inch adjustable stainless steel legs provide proper working height for comfortable operation while enabling precise leveling on uneven floors common in commercial kitchens. The adjustable design accommodates floor variations and ensures stable, level installation essential for proper cooking performance and liquid management. The stainless steel construction resists corrosion from floor cleaning chemicals and moisture while supporting the substantial weight of the fully loaded range. The 6-inch height provides clearance for floor cleaning equipment, enabling thorough sanitation beneath the unit and meeting commercial kitchen cleaning standards required by health departments.

Manufactured by Southbend in Fuquay-Varina, North Carolina with American craftsmanship and decades of commercial cooking equipment expertise, the P32A-XX delivers proven performance for demanding foodservice operations. From fine dining restaurants requiring professional cooking capability to institutional kitchens feeding hundreds daily, from hotel operations serving diverse dining venues to catering companies requiring versatile portable cooking capacity, the Southbend P32A-XX provides the professional performance, innovative engineering, and exceptional reliability that commercial cooking operations demand.

Experience professional restaurant range performance – where Southbend P32A-XX combines four 45,000 BTU Signature Pyromax burners with 1/2 HP convection oven, all-stainless steel construction, and 120V plug-in convenience in a space-efficient 32-inch commercial gas range built in America.
