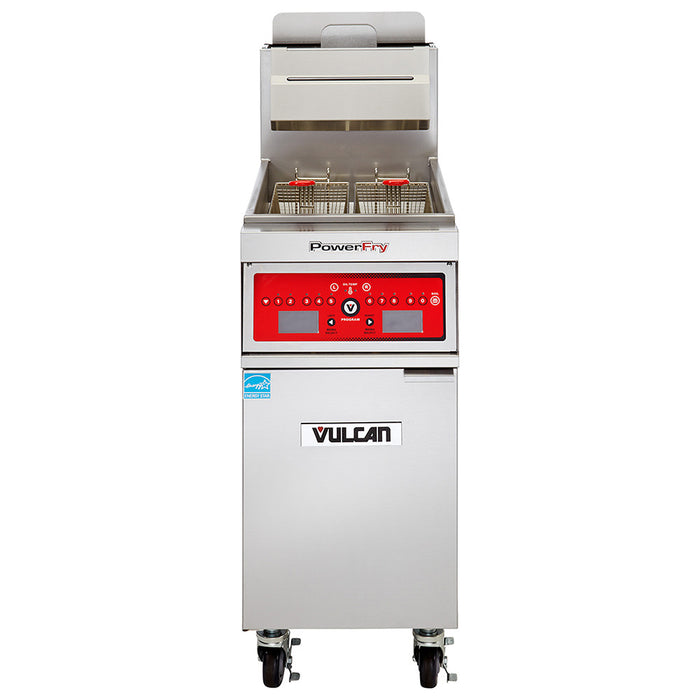

Vulcan 1TR85D Gas Fryer - (1) 90 Lb Vat, Floor Model, Natural Gas
The Vulcan 1TR85D PowerFry3® freestanding fryer is a high-efficiency model that operates with natural gas and can output 90,000 BTUs per hour. Its 19 1/2-inch-wide by 18 1/4-inch-deep vat accommodates 90 pounds of oil to keep up with medium- and high-traffic restaurant demands. With the solid-state digital controls, employees can set oil temperature from 200 to 290 degrees Fahrenheit, set two countdown timers, initiate an automatic boil-out mode, and select one of three melt modes. To prevent scorched oil, the SoftStart® ignition system outputs 45,000 BTUs per hour to raise oil temperature slowly. Its ThreePass® heat transfer system efficiently moves heat from the burners to the oil to establish 60 percent cooking efficiency and 72 percent thermal efficiency. When the unit reaches the set temperature, it only outputs 5,575 BTUs to maintain it.
To keep contents contained as they're fried, the Vulcan 1TR85D commercial floor-model fryer includes twin fryer baskets. Their plastic-coated handles enhance user safety by minimizing heat transfer. For long-term back-of-house use, the cabinet and frypot are made of stainless steela€”a durable metal that resists corrosion and simplifies cleaning. This 21-inch-wide by 34 3/8-inch-deep by 47 1/8-inch-tall unit provides a 36 1/4-inch working height, and it's positioned on four 6-inch casters to simplify repositioning for cleaning or maintenance.
- Featured in the PowerFry3 series
- Frypot accommodates 90 lbs. of oil
- Electronic matchless ignition
- SoftStart ignition system minimizes risk of scorching oil
- ThreePass mechanism effectively transfers heat from burners to oil
- 60 percent cooking efficiency and 72 percent thermal efficiency
- Idle temperature setting maintains set temperatures while outputting 5,575 BTUs per hour
- Flue temperature doesn't exceed 750 degrees F at maximum production rate
- Hi-limit shutoff
- Freestanding unit with 1 frypot
- 36 1/4-in. working height
- Corrosion-resistant stainless steel cabinet and frypot
- Twin fryer baskets featuring plastic-coated handles
- Includes tank brush and clean-out rod
- 1 1/4-in. port ball-type drain valve
- Equipped with (4) 6-in. casters (2 locking)
- 6-in. clearance required at sides and rear when placed near combustible construction
- 16-in. minimum clearance to adjacent open-top burner units
- 90,000 BTU
- Operating temperature range: 200-390 degrees F
- Temperatures can be displayed in Fahrenheit or Celsius
- Cooks with compensating time or actual time
- Automatic boil-out mode
- 3 melt modes
- 2 countdown timers
- Tank: 19 1/2 in. W x 18 1/4 in. D
- Overall: 21 in. W x 34 3/8 in. D x 47 1/8 in. H
- Powered by natural gas
- Includes 120-volt cord and NEMA 5-15P plug
- 3/4-in. OD rear gas connection
Specifications
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 90000 |
| Capacity (lbs) | 90 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | NG |
| Heat | Gas |
| NEMA | 5-15P |
| Number of Fry Pots | 1 |
| Oil Capacity (lb) | 90 |
| Oil Capacity/Fryer (lb) | 90 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry3® |
| Special Features | Casters Included - Uninstalled |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 21 |
| Weight | 267.00 |
