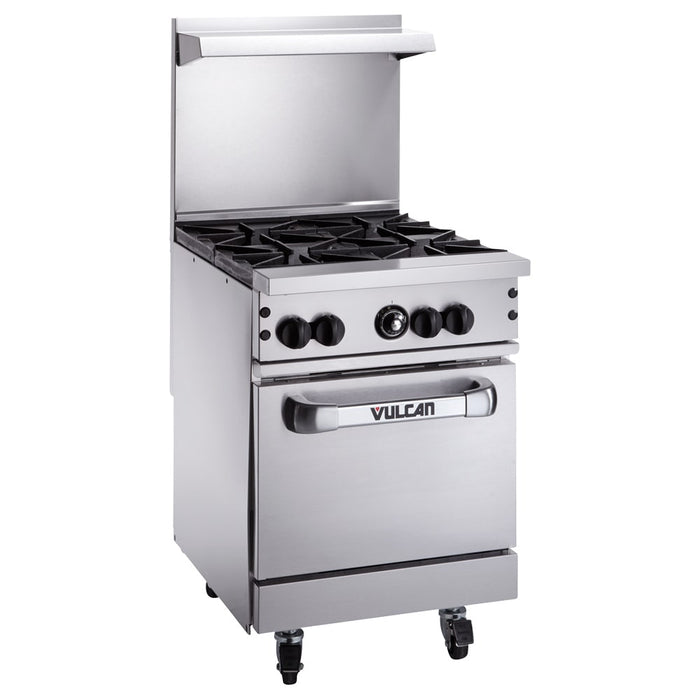

Vulcan 24S-4B 24" 4 Burner Gas Range W/ Standard Oven, Liquid Propane

SKU 24S-4B-LP
Original price $0.00 - Original price $0.00
Original price $0.00
$4,483.00
$4,483.00 - $4,483.00
Current price $4,483.00

The Vulcan 24S-4B gas range has four 30,000 BTU burners powered by propane. The lift-off heads on the burners provide access to the components for maintenance and cleanup. There are two pilots for the four burners with a shrouded flash tube pilot system, minimizing gas use to save energy. The front grates measure 12 inches wide by 12 1/2 inches deep and can be lifted off to easily clean underneath them. Stock pots and large pans fit on the rear burners since they measure 12 inches wide by 14 1/2 inches deep. An aeration bowl is integrated into each grate to direct heat toward pots and pans.

The standard oven can accommodate two full-size sheet pans front to back on two racks. They can be adjusted to four positions to offer a variety of cooking options. The temperature can be set between 250 and 500 degrees Fahrenheit and has a low setting for delicate products. The Vulcan 24S-4B gas range has a full MIG-welded, aluminized steel frame to add strength and structure. With its stainless steel high shelf, backriser, front, and sides, the range resists minor damage and is heavy duty for frequent commercial use.

  • (4) 30,000 BTU burners have lift-off heads so they are easy to clean
  • 2 pilots for the 4 burners reduce gas use with a shrouded flash tube pilot system
  • 12-in. x 12 1/2-in. front grates lift off for servicing and cleanup
  • 12-in. x 14 1/2-in. rear grates hold large stock pots and pans
  • Each grate has an integrated aeration bowl to direct heat towards the pots and pans
  • Pull-out crumb tray has welded corners and an extra deep design
  • Stainless steel high shelf, backriser, front, and sides are durable and resist corrosion
  • Steel frame is aluminized and fully MIG-welded for durability
  • 6-in. stainless steel legs can be adjusted
  • 3/4-in. rear gas connection and pressure regulator
  • 143,000 BTU

  • 2 oven racks accommodate 2 full-size sheet pans front to back
  • Racks adjust to 4 positions for a variety of cooking options
  • Temperature range: 250-500 degrees F
  • Low setting prepares delicate menu items
  • Door is heavy duty for commercial applications

  • Oven Interior: 20 1/4 in. W x 26 1/4 in. D x 14 in. H
  • Overall: 24 in. W x 34 in. D x 58 in. H
  • Heated by LP gas

Specifications

Manufacturer Vulcan
Additional Info Contact Customer Service for altitudes above 2,000 feet
Application Restaurant
Base Standard Oven
BTU / Burner 30000
Burner Configuration Standard
Burner Style Grates
Burner Type(s) Open
Controls Manual
Depth (in) 34
Gas Inlet Size 0.75
Gas Type LP
Heat Gas
Height (in) 58
Installation Type Freestanding
Max Temp 500
Number of Burners 4
Number of Ovens Single
Open Burner BTU (ea) 30000
Product Gas Ranges
Product Type Cooking Equipment
Rack Positions per Standard Oven 4
Racks per Standard Oven 1
Range Configuration Burners
Rating Better
Series Endurance®
Standard Oven BTU/hr 23000
Standard Oven Dimensions 20-1/4"W x 26-1/4"D x 14"H
Total BTU 143000
Vent Backriser w/ hi-shelf
Warranty 1-year Limited Parts & Labor
Width (in) 24
Weight 350.00
