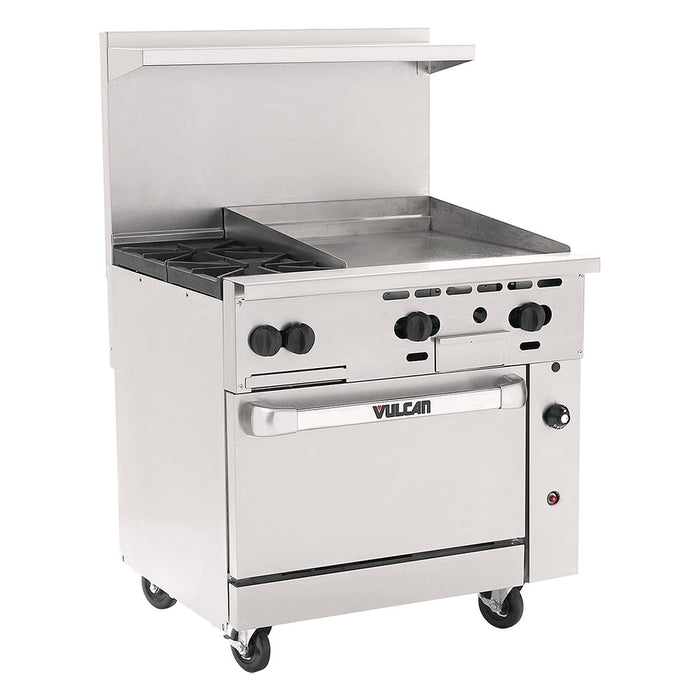

Vulcan 36C-2B24G 36" 2 Burner Gas Range W/ Griddle & Convection Oven, Natural Gas
Operators can cook, boil, and grill at once with the Vulcan 36C-2B24G NG gas range, which has two open burners and a griddle top. It has a fully MIG-welded chassis and stainless steel front, sides, back riser, and lift-off high shelf for lasting durability in rigorous kitchen environments. So it can be set up at an optimal working height, it has 6-inch adjustable legs. Its extra-deep pull-out crumb tray and 4-inch-wide front grease trough enable simple cleanup, and it measures 36 inches wide by 34 inches deep by 58 inches high overall, operating with natural gas.
The Vulcan 36C-2B24G NG gas range has a 24-inch-long griddle with a 3/4-inch-thick plate to grill, saute, or sear various menu items. Its shrouded flash tube pilot system enables one pilot to heat two burners at once to reduce gas consumption, and to accommodate large pots and pans, it has heavy-duty grates with easy lift off. While its built-in aeration bowl enhances efficiency, its burner knobs stay cool to the touch.
This unit has three oven racks to cook multiple products at once, and Its oven has a standard backers depth and a porcelain bottom and door panel. Its temperature ranges from 250 to 500 degrees Fahrenheit with a low setting for flexible cooking. It also has a heavy-duty door with an integrated hinge and spring mechanism that doesn't require adjustments. To accommodate full-sized sheets, this oven measures 26 3/8 inches wide by 24 inches deep by 13 7/8 inches high.
- Part of the Endurance® series
- Stainless steel front, sides, back riser, and lift-off high shelf
- Fully MIG-welded chassis
- 6-in.-high adjustable legs
- Extra-deep pull-out crumb tray with welded corners
- 3/4-in.-dia. rear gas connection and pressure regulator
- Casters not included
- (1) 24-in.-long griddle with 3/4-in.-thick plate on right side of unit
- Lift-off burner heads
- 4-in.-wide front grease trough
- Two open-top burners (each burner is 30,000 BTU/hr
- Energy-saving, shrouded flash tube pilot system (one pilot per two burners)
- Heavy-duty cast grates with easy lift off
- Convection oven
- 35,000 BTU/hr convection oven
- Includes three oven racks
- Grates have a built-in aeration bowl for enhanced efficiency
- Burner knobs are cool to the touch, high-temperature material
- Standard bakers-depth oven with porcelain bottom and door panel
- Temperature range: 250 to 500 degrees F with a low setting
- Includes (2) racks, (2) rack guides, and (4) rack positions
- Door is heavy duty with integrated door hinge/spring mechanism (no adjustments required)
- Full-sized sheet pans only fit side to side
- Convection oven motor requires field attachment
- Front grate: 12 in. L x 12 1/2 in. W
- Rear grate: 12 in. L x 14 1/2 in. W
- Oven: 26 3/8 in. W x 24 in. D x 13 7/8 in. H
- Overall: 36 in. W x 34 in. D x 58 in. H
- Total input: 135,000 BTU/hr
- 115 V/60 Hz/1 ph, 4 A
- 6-ft.-long cord and plug
- Natural gas
Specifications
| Manufacturer | Vulcan |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Restaurant |
| Base | Convection Oven |
| BTU / Burner | 30000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Controls | Thermostatic |
| Convection Oven BTU/hr | 35000 |
| Convection Oven Dimensions | 26-3/8"W x 24"D x 13-7/8"H |
| Depth (in) | 34 |
| Gas Inlet Size | 0.75 |
| Gas Type | NG |
| Griddle Location | Right |
| Griddle Width (in) | 24 |
| Heat | Gas/Electric |
| Height (in) | 58 |
| Hertz | 60 |
| Installation Type | Freestanding |
| Max Temp | 500 |
| Number of Burners | 2 |
| Number of Ovens | Single |
| Open Burner BTU (ea) | 30000 |
| Phase | 1 |
| Plate Thickness (in) | 3/4 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Convection Oven | 4 |
| Racks per Convection Oven | 2 |
| Range Configuration | Burners/Griddle |
| Rating | Better |
| Series | Endurance® |
| Total BTU | 135000 |
| Vent | Backriser w/ hi-shelf |
| Voltage | 115 |
| Warranty | 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts |
| Width (in) | 36 |
| Weight | 630.00 |
