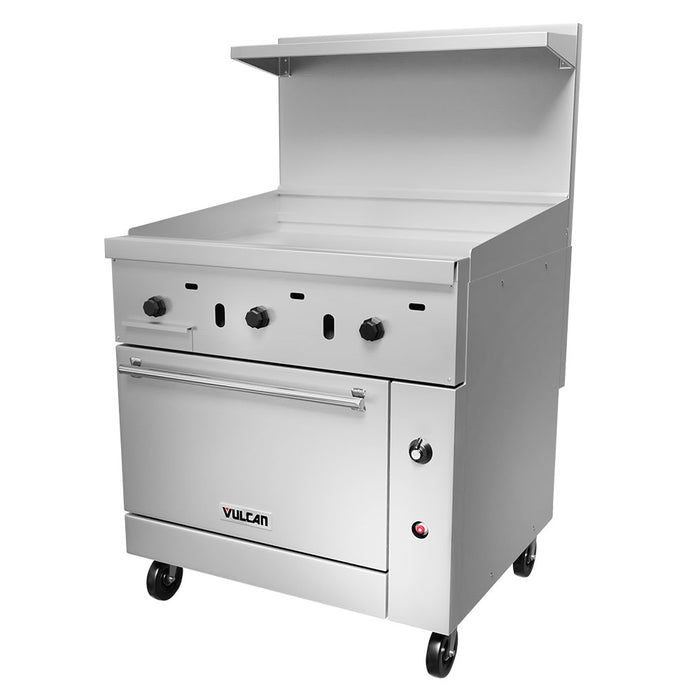

Vulcan 36C-36G 36" Gas Range W/ Full Griddle & Convection Oven, Natural Gas
The Vulcan 36C-36G gas range has a fully MIG-welded steel frame that adds structure to the unit, while the stainless steel construction resists corrosion and provides durability. It measures 36 inches wide by 34 inches deep by 58 inches tall and has a 36-inch-wide griddle and convection oven. The griddle plate measures 3/4-inch thick and comes with a 4-inch-wide grease trough. Since the crumb tray pulls out, it is easy to access for cleanup. The oven has three racks and accommodates full-size pans side to side. The ovena€™s thermostat operates at temperatures between 250 and 500 degrees Fahrenheit and has a low setting for delicate items. Four 6-inch adjustable legs keep the Vulcan 36C-36G gas range lifted off floors so it is easy to clean underneath.
- Operates with natural gas
- 36-in. griddle plate has a thickness of 3/4 in.
- Grease trough has a width of 4-in. to collect liquids
- Crumb tray is deep, pulls out, and has welded corners
- Durability is created with a fully MIG-welded steel frame
- High shelf, backriser, front, and sides are stainless steel to resist corrosion
- 6-in. stainless steel legs are adjustable for uneven floors
- 3/4-in. rear gas connection and pressure regulator
- 95,000 BTU
- Overall Dimensions: 36 in. W x 34 in. D x 58 in. H
- Full-size sheet pans fit side to side on 3 oven racks
- Thermostat can be adjusted from 250-500 degrees F
- Low setting prepares delicate products
- Door construction is heavy duty to support commercial use
- Hinge and spring mechanism does not require adjustments
- Interior Dimensions: 26 3/8 in. W x 24 in. D x 13 7/8 in. H
Specifications
| Manufacturer | Vulcan |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Restaurant |
| Base | Convection Oven |
| BTU / Burner | 35000 |
| Burner Configuration | Standard |
| Burner Style | None |
| Burner Type(s) | None |
| Controls | Thermostatic |
| Convection Oven BTU/hr | 35000 |
| Convection Oven Dimensions | 26-3/8"W x 24"D x 13-7/8"H |
| Depth (in) | 34 |
| Gas Inlet Size | 0.88 |
| Gas Type | NG |
| Griddle Location | Full |
| Griddle Width (in) | 36 |
| Heat | Gas/Electric |
| Height (in) | 58 |
| Hertz | 60 |
| Installation Type | Freestanding |
| Max Temp | 500 |
| Number of Burners | None |
| Number of Ovens | Single |
| Phase | 1 |
| Plate Thickness (in) | 7/8 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Convection Oven | 4 |
| Racks per Convection Oven | 2 |
| Range Configuration | Griddle |
| Rating | Better |
| Series | Endurance® |
| Total BTU | 95000 |
| Vent | Backriser w/ hi-shelf |
| Voltage | 115 |
| Warranty | 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts |
| Width (in) | 36 |
| Weight | 660.00 |
