Vulcan 48C-2B36G 48" 2 Burner Gas Range W/ Griddle & Convection Oven, Liquid Propane

SKU 48C-2B36G-LP
Original price $0.00 - Original price $0.00
Original price $0.00
$17,327.00
$17,327.00 - $17,327.00
Current price $17,327.00

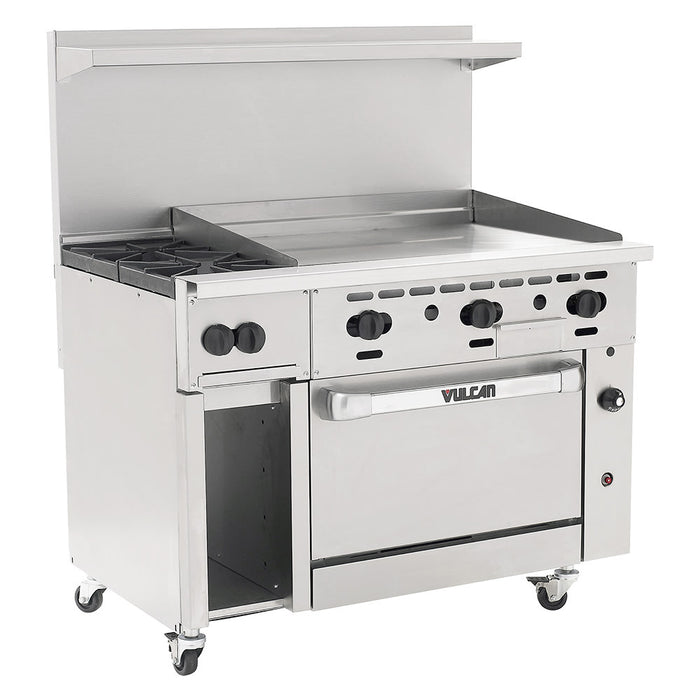

The Vulcan 48C-2B36G Endurance® restaurant range features two burners and a griddle on its top section so operators can saute, fry, or boil foods simultaneously. The left-side's open-top burners each output 30,000 BTUs and feature a lift-off burner head. Their energy-saving flashtube pilot system is shrouded to ensure it remains lit during use, creating a reliable source of heat. While the front burner features a 12-inch by 12 1/2-inch heavy-duty cast grate, the rear burner is fitted with a 12-inch by 14 1/2-inch cast grate. Each lift-off grate is built with an aeration bowl to encourage an even distribution of heat. Staff can adjust each burner's heat with the corresponding cool-to-the-touch burner knobs.

On the right side, a 36-inch-wide griddle measuring 3/4 of an inch thick includes corresponding heat controls to accommodate changing menus. The side splash guards and backriser protect nearby surfaces from pops of hot oil. Staff can remove grease and debris from the 4-inch-wide grease trough and extra-deep crumb tray with welded corners. Beneath the stovetop, a 35,000-BTU convection oven boasts a 26 3/8-inch-wide by 24-inch-deep by 13 7/8-inch-tall interior that accommodates full-size sheet pans inserted side to side. The interior cavity features a porcelain base and door panel and includes two door racks with two rack guide sets that provide four rack positions. To achieve desired roasting, baking, or broiling results, the oven can be set from 250 to 500 degrees Fahrenheit.

The Vulcan 48C-2B36G LP-gas-powered range measures 48 inches wide by 34 inches deep by 58 inches tall to save space in compact kitchens. To ensure it's stable on uneven flooring, its 6-inch stainless steel feet can be raised or lowered. Ingredients, supplies, and additional items can be stored on the top-mounted shelf for convenient storage access. The front, sides, backriser, and lift-off high shelf are made of durable corrosion-, wear-, and rust-resistant stainless steel to prolong its service life and complement existing equipment. For lasting strength, its frame is fully MIG welded.

  • Part of the Endurance collection
  • Stainless steel front, sides, backriser, and lift-off high shelf
  • (2) 30,000-BTU open-top burners with lift-off heads
  • Energy-saving flashtube shrouded pilot ignition system
  • 12-in. x 12 1/2-in. heavy-duty cast front grate
  • 12-in. x 14 1/2-in. heavy-duty cast rear grate
  • Grates feature efficient built-in aeration bowls
  • 60,000-BTU 36-in.-wide griddle
  • 3/4-in.-thick griddle plate
  • 4-in.-wide grease trough in front of griddle
  • Extra-deep pull-out stainless steel crumb tray with welded corners
  • Cool-to-the-touch burner knobs for burners and griddle

  • Uses convection heat for quick, thorough baking
  • Operating temperature: 250-500 degrees F
  • Low-temperature setting
  • 2 racks with 2 rack guide sets
  • 4 rack positions
  • Accommodates full-size sheet pans inserted side to side
  • Porcelain oven base and door panel
  • Hinged oven door with spring mechanism
  • Blower motor requires field attachment
  • 6-in. adjustable stainless steel legs
  • 35,000 BTU

  • Oven interior: 26 3/8 in. W x 24 in. D x 13 7/8 in. H
  • Overall: 48 in. W x 34 in. D (53 1/2 in. D when oven door is open) x 58 in. H
  • 4 A
  • 115 V/60 Hz/1 ph, 6-ft. cord with plug
  • Powered by LP gas
  • 155,000 BTU
  • 3/4-in. rear gas connection

Specifications

Manufacturer Vulcan
Application Restaurant
Base Convection Oven
BTU / Burner 30000
Burner Configuration Standard
Burner Style Grates
Burner Type(s) Open
Controls Manual
Depth (in) 34
Gas Type LP
Griddle Width (in) 36
Heat Gas
Height (in) 58
Installation Type Freestanding
Number of Burners 2
Number of Ovens Single
Plate Thickness (in) 7/8
Product Gas Ranges
Product Type Cooking Equipment
Rack Positions per Convection Oven 4
Racks per Convection Oven 2
Range Configuration Burners/Griddle
Rating Better
Series Endurance®
Total BTU 155000
Vent Backriser w/ hi-shelf
Warranty 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts
Width (in) 48
Weight 810.00
