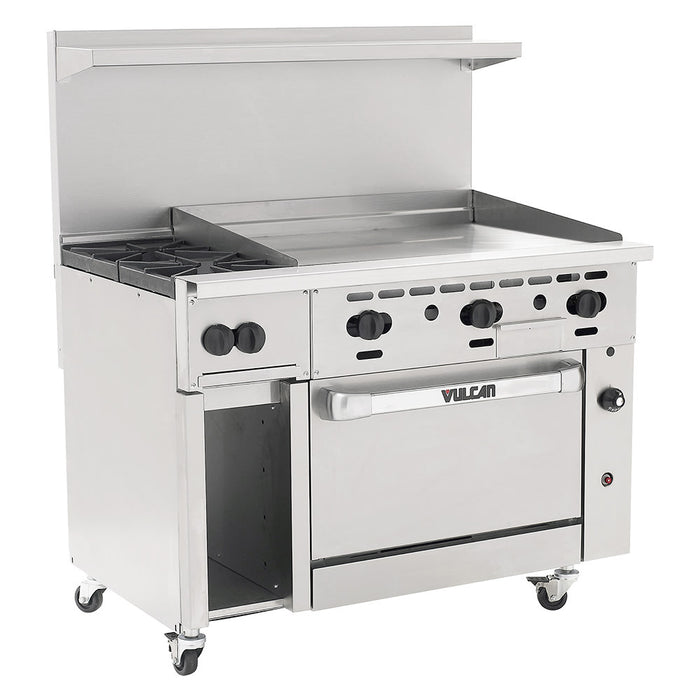

Vulcan 48C-2B36GT 48" 2 Burner Gas Range W/ Griddle & Convection Oven, Natural Gas

SKU 48C-2B36GT-NG
Original price $0.00 - Original price $0.00
Original price $0.00
$18,349.00
$18,349.00 - $18,349.00
Current price $18,349.00

The Vulcan 48C-2B36GT Endurance® restaurant range is a three-in-one unit comprised of two burners, one griddle, and a convection oven. While the stovetop features two burners on the left side and a 36-inch-wide griddle on the right side, the convection oven is positioned beneath these units for convenience. This 48-inch-wide by 34-inch-deep by 58-inch-tall unit's front, sides, backriser, and lift-off high shelf are made of stainless steela€”a durable rust- and corrosion-resistant metal that ties into most back-of-house themes. For additional rigidity, its frame is fully MIG welded. To stabilize the unit on irregular flooring, it's fitted with 6-inch stainless steel legs that can be raised or lowered.

A flashtube pilot system lights both of the unit's burners, and its shrouded design provides lasting durability. Each burner features a heavy-duty cast grate with an integrated aeration bowl for enhanced efficiency. The front grate measures 12 inches by 12 1/2 inches, while the rear grate measures 12 inches by 14 1/2 inches to accommodate stock pots or large pans. Operators can adjust the burners' heat with the corresponding cool-to-the-touch knobs. The griddle built onto the stovetop's right side measures 3/4 of an inch thick to withstand repeated heating and cooling and retain heat to reduce lag times during reheating. Staff can adjust the griddle's temperature with the corresponding snap-action thermostatic controls. Because it's built with side splash guards and a backriser, it can contain oil from popping onto the burners and adjacent areas to maintain a clean workspace. For quick cleanup between uses, it features a 4-inch-wide grease trough and an extra-deep pull-out crumb tray.

The Vulcan 48C-2B36GT natural-gas-powered range is built with a convection oven so dishes can be baked, broiled, or roasted quickly. This oven uses a fan to circulate radiant heat, and employees can adjust temperatures between 250 to 500 degrees Fahrenheit. Its 26 3/8-inch-wide by 24-inch-deep by 13 7/8-inch-tall interior accommodates full-sized sheet pans inserted side to side on its two oven racks. So the racks can be secured in various positions, this unit includes two rack guide sets and four placement options. To ease cleaning, the base and door panel are made of porcelain.

  • Part of Vulcan's Endurance collection
  • Stainless steel front, sides, backriser, and lift-off high shelf
  • Frame is MIG welded and made from aluminized steel
  • (2) 30,000-BTU open-top burners with lift-off heads
  • Shrouded flashtube pilot ignition system for enhanced reliability
  • 2 heavy-duty cast grates with built-in aeration bowls
  • 12-in. x 12 1/2-in. cast front grate
  • 12-in. x 14 1/2-in. cast rear grate
  • Cool-to-the-touch burner knobs made of heat-resistant material
  • 60,000-BTU, 36-in.-wide griddle on stovetop's right side
  • 3/4-in.-thick griddle plate
  • Corresponding thermostatic snap-action burner knobs for griddle
  • 4-in.-wide front grease trough
  • Extra-deep stainless steel crumb tray with welded corners can be pulled out

  • Uses convection heat
  • Operating temperature: 250-500 degrees F
  • Low-temperature setting
  • 2 racks and 2 rack guide sets with 4 rack positions
  • Accommodates full-size sheet pans positioned side to side
  • Porcelain oven base and door panel
  • Hinged oven door for simple insertion and removal
  • Blower motor requires field attachment
  • Rests atop four 6-in. adjustable stainless steel legs
  • 35,000 BTU

  • Oven interior: 26 3/8 in. W x 24 in. D x 13 7/8 in. H
  • Overall: 48 in. W x 34 in. D (53 1/2 in. D when oven door is open) x 58 in. H
  • 4 A
  • 115 V/60 Hz/1 ph, 6-ft. cord with plug
  • Powered by natural gas
  • 155,000 BTU
  • 3/4-in. rear gas connection

Specifications

Manufacturer Vulcan
Application Restaurant
Base Convection Oven
BTU / Burner 30000
Burner Configuration Standard
Burner Style Grates
Burner Type(s) Open
Controls Thermostatic
Depth (in) 34
Gas Type NG
Griddle Width (in) 36
Heat Gas
Height (in) 58
Installation Type Freestanding
Number of Burners 2
Number of Ovens Single
Plate Thickness (in) 7/8
Product Gas Ranges
Product Type Cooking Equipment
Rack Positions per Convection Oven 4
Racks per Convection Oven 2
Range Configuration Burners/Griddle
Rating Better
Series Endurance®
Total BTU 155000
Vent Backriser w/ hi-shelf
Warranty 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts
Width (in) 48
Weight 810.00
