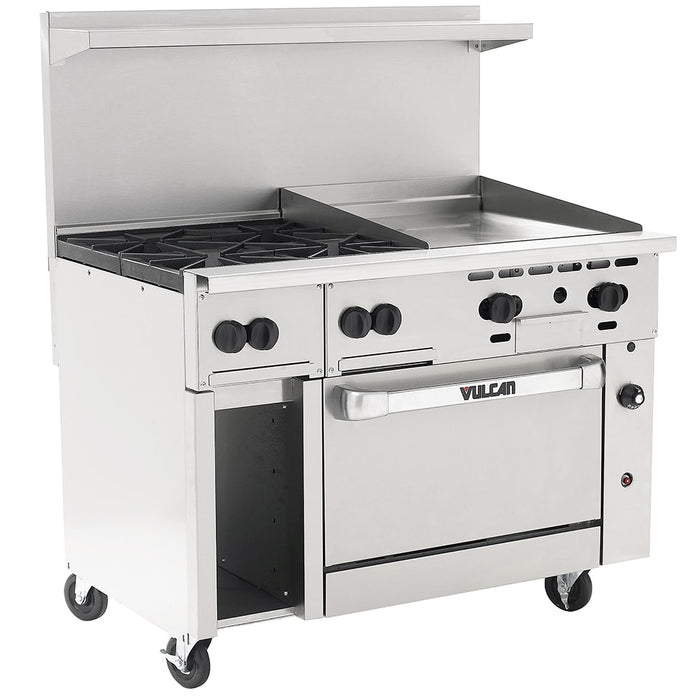

Vulcan 48S-4B24G 48" 4 Burner Gas Range W/ Griddle & Standard Oven, Natural Gas

SKU 48S-4B24G-NG
Original price $0.00 - Original price $0.00
Original price $0.00
$12,089.00
$12,089.00 - $12,089.00
Current price $12,089.00

So operators can fry, boil, simmer, bake, and roast ingredients with one unit, the Vulcan 48S-4B24G NG restaurant range is built with four burners, a 36-inch-wide griddle, and a standard oven. This 48-inch-wide by 34-inch-deep by 58-inch-tall unit is made of stainless steela€”a rugged, rust- and corrosion-resistant metal that's durable enough to survive daily use in fast-paced restaurants. For extra strength, its chassis is fully welded. This unit features a lift-off high shelf above the range for convenient storage, and to reduce the risk of rocking during operation, it's positioned on four 6-inch stainless steel legs that can be raised or lowered.

The oven base's 27-inch depth accommodates full-size pans inserted side to side or front to back for flexibility. The two included oven racks feature rack guide sets that enable placement in four positions. Staff members can simply open the hinged oven door to access the interior, and to reduce injury risk, its handle remains cool to the touch. The interior temperature can be set between 250 and 500 degrees Fahrenheit for broiling, roasting, or baking needs, and to withstand long-term exposure to high heat and simplify cleaning, its door panel and base are made of porcelain.

The Vulcan 48S-4B24G NG Endurance® range's 48-inch-wide cooktop features four open-top burners on the left and a 24-inch-wide griddle on the right. Two shrouded flashtube pilot systems control the four burners to save gas; each burner has a corresponding cast grate and integrated aeration bowl for efficient heat conduction. While the front grates are sized for small or medium cookware, the rear grates are ideal for large stockpots and saucepans. So operators can safely adjust temperature during operation, the burner knobs remain cool to the touch.

The 3/4-inch-thick griddle plate warms evenly and retains heat to reduce lag times when reheating is required for consecutive use. While the backriser and two side splash guards protect the burners and nearby surfaces from hot, popping oil, the manual controls ease operation. Operators can remove food residue and grease from the extra-deep crumb tray and 4-inch-wide grease trough.

  • Part of the Endurance line
  • (4) 30,000-BTU open-top burners with lift-off heads
  • 2 shrouded flashtube pilot ignition systems (1 system per 2 burners)
  • 4 heavy-duty cast grates with built-in aeration bowls
  • (2) 12-in. x 12 1/2-in. cast front grates
  • (2) 12-in. x 14 1/2-in. cast rear grates
  • Cool-to-the-touch burner knobs
  • Extra-deep pull-out stainless steel crumb tray with welded corners
  • 24-in.-wide griddle outputs 60,000-BTUs
  • 3/4-in.-thick plate
  • Manual controls
  • 2 side splash guards
  • 4-in.-wide front grease trough
  • Front, sides, backriser, and high lift-off shelf made of durable stainless steel
  • Fully MIG-welded chassis

  • Operating temperature: 250-500 degrees F
  • Low-temperature setting
  • Baker's depth holds full-size sheet pans side to side or front to back
  • Includes 2 racks with 2 rack guide sets
  • 4 oven rack positions
  • Porcelain door panel and oven base
  • Hinged oven door features cool-to-the-touch door handle
  • 6-in. adjustable stainless steel legs
  • 35,000 BTU

  • Oven interior: 26 3/8 in. W x 27 in. D x 14 in. H
  • Overall: 48 in. W x 34 in. D (46 1/2 in. D when oven door is open) x 58 in. H
  • Powered by natural gas
  • 195,000 BTU
  • 1-in. rear gas connection

Specifications

Manufacturer Vulcan
Application Restaurant
Base Standard Oven
BTU / Burner 30000
Burner Configuration Standard
Burner Style Grates
Burner Type(s) Open
Controls Manual
Depth (in) 34
Gas Type NG
Griddle Width (in) 24
Heat Gas
Height (in) 58
Installation Type Freestanding
Number of Burners 4
Number of Ovens Single
Plate Thickness (in) 3/4
Product Gas Ranges
Product Type Cooking Equipment
Rack Positions per Standard Oven 4
Racks per Standard Oven 2
Range Configuration Burners/Griddle
Rating Better
Series Endurance®
Total BTU 195000
Vent Backriser w/ hi-shelf
Warranty 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts
Width (in) 48
Weight 720.00
