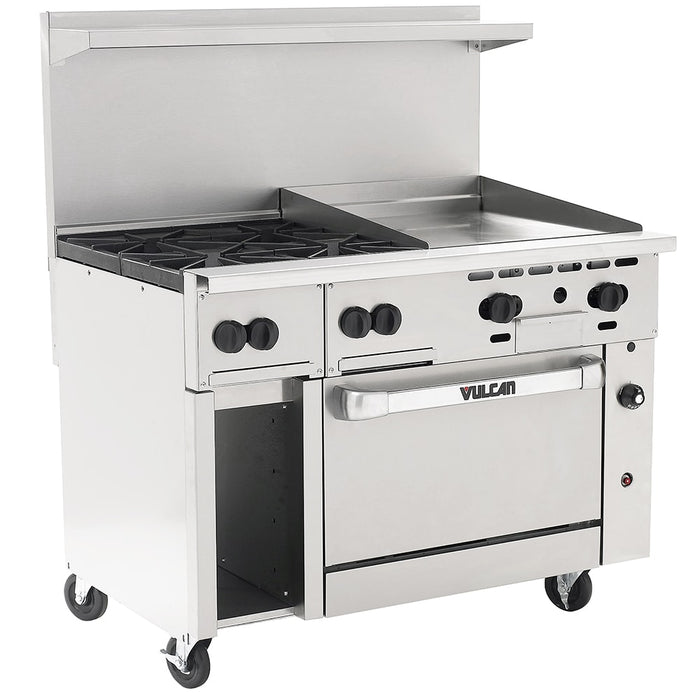

Vulcan 48S-4B24GT 48" 4 Burner Gas Range W/ Griddle & Standard Oven, Natural Gas

SKU 48S-4B24GT-NG
Original price $0.00 - Original price $0.00
Original price $0.00
$12,784.00
$12,784.00 - $12,784.00
Current price $12,784.00

Because the Vulcan 48S-4B24GT NG Endurance® gas restaurant range is built with four burners, a 24-inch-wide griddle, and an oven, it eliminates the need for operators to purchase these three pieces of equipment separately. To save space in compact kitchens, it measures 48 inches wide by 34 inches deep by 58 inches high. Its 6-inch-tall stainless steel legs can be raised or lowered as needed on sloped or irregular surfaces, reducing the risk of the unit wobbling or rocking during operation. To complement other pieces of equipment without sacrificing durability, its front, sides, lift-off high shelf, and backriser are made of resilient, rust- and corrosion-resistant stainless steel. For added strength, its frame is fully MIG welded, and this natural-gas-powered unit outputs 195,000 BTUs in total and uses 1-inch rear gas connections.

The 48-inch-wide range is divided into two sectionsa€”burners on the left side and a griddle on the right. Two shrouded flashtube pilot systems control the four open-top burners to conserve energy, and staff members can adjust the burners' heat with the corresponding cool-to-the-touch control knobs. The two front heavy-duty cast grates measures 12 inches by 12 1/2 inches to accommodate small or medium cookware, while the rear grates are 12 inches by 14 1/2 inches to support large pots and pans. For thorough cleaning, the cast grates can be lifted off, and a pull-out extra-deep crumb tray collects food residue. The 24-inch-wide griddle's 3/4-inch-thick plate is durable enough to withstand repeated heating and cooling. So users can set the heat to a specific temperature, it has corresponding thermostatic controls. Operators can remove leftover oil with the 4-inch-wide front grease trough.

A standard oven built beneath the Vulcan 48S-4B24GT NG commercial range's stovetop features a simple-to-open hinged door with a handle that remains cool to the touch during baking. Because of its 26-inch depth, full-size pans can be inserted front to back or side to side for flexibility. Its two oven racks include two rack guide sets that can be placed in four positions. Great for broiling, roasting, reheating, or baking, its temperature can be set from 250 to 500 degrees Fahrenheit or at a low-heat setting, and for quick cleanup, its door panel and base are made of porcelain.

  • Part of Vulcan's Endurance series
  • (4) 30,000-BTU open-top burners
  • 2 shrouded flashtube pilot ignition systems (1 system per 2 burners)
  • 4 heavy-duty cast grates with built-in aeration bowls
  • (2) 12-in. x 12 1/2-in. cast front grates
  • (2) 12-in. x 14 1/2-in. cast rear grates
  • High-temperature-resistant burner knobs remain cool to the touch
  • Extra-deep pull-out stainless steel crumb tray featuring welded corners
  • 24-in.-wide, 3/4-in.-thick griddle plate
  • Thermostatic controls enable precise adjustment
  • 4-in.-wide front grease trough
  • Stainless steel front, sides, backriser, and high lift-off shelf
  • Fully MIG-welded frame

  • Operating temperature: 250-500 degrees F
  • Low-heat option
  • 27-in. baker's depth accommodates full-size pans side to side or front to back
  • Includes 2 racks with 2 rack guide sets
  • 4 oven rack positions
  • Hinged oven door with cool-to-the-touch handle
  • Porcelain door panel and oven base
  • 6-in. adjustable stainless steel legs
  • 35,000 BTU

  • Oven interior: 26 3/8 in. W x 27 in. D x 14 in. H
  • Overall: 48 in. W x 34 in. D (46 1/2 in. D when oven door is open) x 58 in. H
  • Powered by natural gas
  • 195,000 BTU
  • 1-in. rear gas connection

Specifications

Manufacturer Vulcan
Application Restaurant
Base Standard Oven
BTU / Burner 30000
Burner Configuration Standard
Burner Style Grates
Burner Type(s) Open
Controls Thermostatic
Depth (in) 34
Gas Type NG
Griddle Width (in) 24
Heat Gas
Height (in) 58
Installation Type Freestanding
Number of Burners 4
Number of Ovens Single
Plate Thickness (in) 3/4
Product Gas Ranges
Product Type Cooking Equipment
Rack Positions per Standard Oven 4
Racks per Standard Oven 2
Range Configuration Burners/Griddle
Rating Better
Series Endurance®
Total BTU 195000
Vent Backriser w/ hi-shelf
Warranty 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts
Width (in) 48
Weight 720.00
