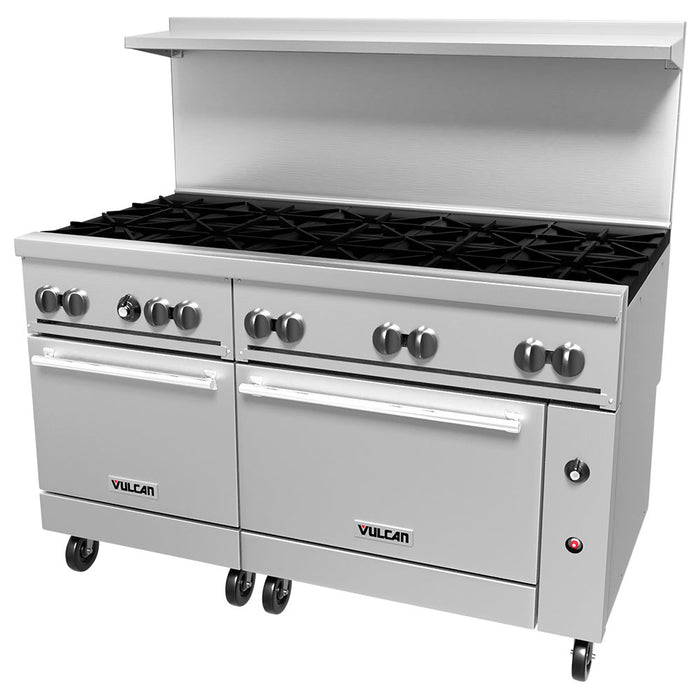

Vulcan 60SC-10B 60" 10 Burner Gas Range W/ (1) Standard & (1) Convection Ovens, Liquid Propane

SKU 60SC-10B-LP
Original price $0.00 - Original price $0.00
Original price $0.00
$17,179.00
$17,179.00 - $17,179.00
Current price $17,179.00

The Vulcan 60SC-10B LP Endurance® gas restaurant range's 10 open burners, standard oven, and convection oven enable staff to perform multiple cooking tasks in a single footprint. This three-in-one piece of equipment measures 60 inches wide by 34 inches deep by 58 inches high to conserve space in compact settings; it's positioned on 6-inch-tall legs that can be raised or lowered to stabilize the unit on sloped or uneven surfaces. To withstand high-volume use in fast-paced kitchens, its frame is fully MIG welded, while its body is made of resilient rust- and corrosion-resistant stainless steel.

Great for sauteing vegetables and proteins, simmering sauces, and boiling stew, the 10 open-top burners each output 30,000 BTUs. Instead of each burner having a corresponding pilot light, one shrouded flashtube pilot system powers two burners to reduce gas usage. The burners are fitted with heavy-duty cast grates that can be lifted off for thorough cleaning, and their integrated aeration bowls enhance efficiency. While stock pots and sauce pans can be heated on the five 12-inch by 14 1/2-inch rear grates, the five 12-inch by 12 1/2-inch front greatest accommodate small or medium cookware. To remove food debris, an extra-deep crumb tray positioned beneath the burners can be pulled out.

The Vulcan 60SC-10B LP restaurant range features a convection and standard oven so users can bake different dishes simultaneously. The left side is a standard 23,000-BTU oven with a 20 1/4-inch-wide by 26 1/4-inch-deep by 14-inch-tall baker's-depth interior, while the convection oven on the right side features a 26 3/8-inch-wide by 27-inch-deep by 14-inch-tall interior. Both interiors accept 18-inch by 26-inch sheet pans inserted side to side, and both ovens provide four rack positions to accommodate various baking requirements. To ease pan insertion and retrieval, staff can simply open the hinged oven doors. Operators can adjust each oven's heat from 250 to 500 degrees Fahrenheit as baking needs change.

  • Part of the Endurance line
  • Rust- and corrosion-resistant stainless steel body with fully MIG-welded frame
  • 10 open-top burners powered by 5 shrouded flashtube pilot ignition systems (1 system per 2 burners)
  • 10 heavy-duty lift-off cast grates
  • (5) 12-in. x 12 1/2-in. cast front grates
  • (5) 12-in. x 14 1/2-in. cast rear grates
  • Integrated aeration bowls enhance efficiency
  • High-temperature-resistant burner knobs remain cool
  • Extra-deep pull-out crumb tray with welded corners
  • 300,000 BTU

  • Standard oven on left side and convection oven on right side
  • Both ovens accommodate 18-in. x 26-in. pans side to side
  • Both ovens include 2 racks with 2 rack guide sets
  • 4 oven rack positions
  • 2 hinged oven doors
  • Porcelain door panels and oven bases
  • 6-in. adjustable stainless steel legs
  • Operating temperature: 250-500 degrees F
  • Low setting
  • Convection oven motor requires field attachment
  • Left oven: 23,000 BTU
  • Right oven: 35,000 BTU

  • Standard oven interior: 20 1/4 in. W x 26 1/4 in. D x 14 in. H
  • Convection oven interior: 26 3/8 in. W x 27 in. D x 14 in. H
  • Overall: 60 in. W x 34 in. D (46 1/2 in. D when oven doors are open) x 58 in. H
  • 4 A
  • 115 V/60 Hz/1 ph, 6-ft. cord with plug
  • Powered by LP gas
  • 1-in. rear gas connection
  • 358,000 BTU

Specifications

Manufacturer Vulcan
Additional Info Contact Customer Service for altitudes above 2,000 feet
Application Restaurant
Base Standard/Convection Ovens
BTU / Burner 35000
Burner Configuration Standard
Burner Style Grates
Burner Type(s) Open
Controls Thermostatic
Convection Oven BTU/hr 35000
Convection Oven Dimensions 26-3/8"W x 24"D x 13-7/8"H
Depth (in) 34
Gas Inlet Size 1
Gas Type LP
Heat Gas/Electric
Height (in) 58
Hertz 60
Installation Type Freestanding
Max Temp 500
Number of Burners 10
Number of Ovens Double
Open Burner BTU (ea) 30000
Phase 1
Product Gas Ranges
Product Type Cooking Equipment
Rack Positions per Convection Oven 4
Rack Positions per Standard Oven 4
Racks per Convection Oven 2
Racks per Standard Oven 2
Range Configuration Burners
Rating Better
Series Endurance®
Standard Oven BTU/hr 23000
Standard Oven Dimensions 20-1/4"W x 26-1/4"D x 14"H
Total BTU 358000
Vent Backriser w/ hi-shelf
Voltage 115
Warranty 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts
Width (in) 60
Weight 950.00
