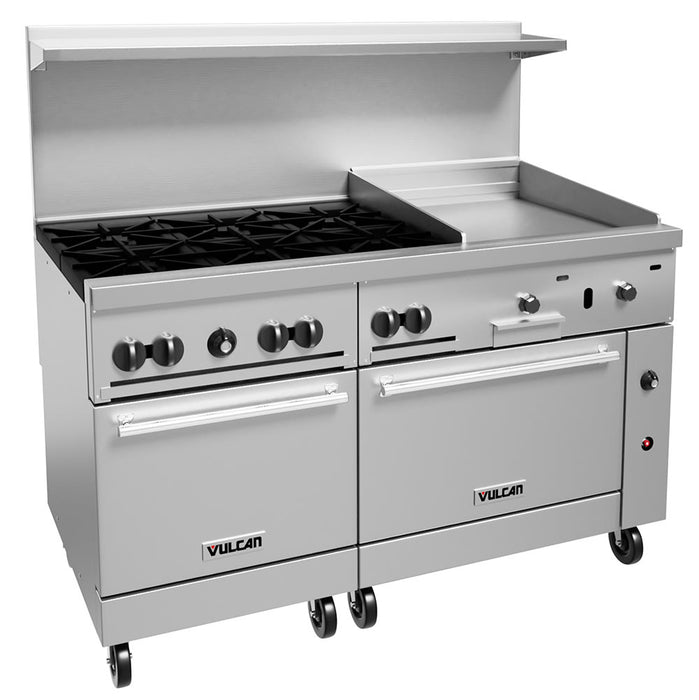

Vulcan 60SC-6B24G 60" 6 Burner Gas Range W/ Griddle & (1) Standard & (1) Convection Ovens, Natural Gas

SKU 60SC-6B24G-NG
Original price $0.00 - Original price $0.00
Original price $0.00
$18,545.00
$18,545.00 - $18,545.00
Current price $18,545.00

Built to endure high-volume use in fast-paced kitchens, the Vulcan 60SC-6B24G restaurant range's front, sides, and backriser are constructed of corrosion-resistant, simple-to-clean stainless steel. It's furnished with an extra-deep pull-out crumb tray and 4-inch-wide grease trough to further streamline cleaning. To accommodate various cooking needs in a single footprint, it features a 24-inch-wide griddle, six open-top burners covered with heavy-duty cast grates, a standard oven, and a convection oven. This unit's burner's knobs remain cool to the touch to ensure safe, comfortable operation.

The Vulcan 60SC-6B24G commercial range's two baker's-depth ovens both accommodate 18-inch by 26-inch pans, and their temperatures can be set between 250 and 500 degrees Fahrenheit or set to low. Great for establishments with varied menus, one oven uses convection heat while the other uses conventional heating elements. To stabilize the unit on sloped or irregular flooring, its 6-inch stainless steel legs are adjustable. Overall, this natural gas-powered unit measures 60 inches wide by 34 inches deep by 58 inches high and outputs a total of 278,000 BTUs.

  • Part of the Endurance® collection
  • Stainless steel front, sides, backriser, and high shelf
  • Fully MIG-welded frame
  • 3 shrouded flashtube pilot ignition systems (1 for every 2 burners)
  • (6) 30,000-BTU open-top burners
  • 6 heavy-duty, lift-off cast grates with built-in aeration bowls
  • 12-in. x 12 1/2-in. cast front grates
  • 12-in. x 14 1/2-in. cast rear grates
  • Burner knobs remain cool to the touch
  • Extra-deep pull-out crumb tray with welded corners
  • 24-in.-wide griddle with 3/4-in.-thick griddle plate
  • Manual controls
  • 4-in.-wide grease trough
  • 6-in. adjustable stainless steel legs

  • Standard oven on left side and convection oven on right side
  • Each oven is baker's depth and accepts 18-in. x 26-in. pans
  • 2 racks with 2 rack guide sets per oven
  • 4 oven rack positions
  • Temperature range: 250-500 degrees F
  • Low-heat setting
  • 2 hinged oven doors with spring mechanisms
  • Standard oven: 23,000 BTU
  • Convection oven: 35,000 BTU

  • Standard oven interior: 20 1/4 in. W x 26 1/4 in. D x 14 in. H
  • Convection oven interior: 26 3/8 in. W x 24 in. D x 13 7/8 in. H
  • Overall: 60 in. W x 34 in. D x 58 in. H
  • 4 A
  • 115 V/60 Hz/1 ph, 6-ft. cord with plug
  • Powered by natural gas
  • 1-in. rear gas connection
  • 278,000 BTU

Specifications

Manufacturer Vulcan
Additional Info Contact Customer Service for altitudes above 2,000 feet
Application Restaurant
Base Standard/Convection Ovens
BTU / Burner 30000
Burner Configuration Standard
Burner Style Grates
Burner Type(s) Open
Controls Manual
Convection Oven BTU/hr 35000
Convection Oven Dimensions 26-3/8"W x 24"D x 13-7/8"H
Depth (in) 34.75
Gas Inlet Size 1
Gas Type NG
Griddle Location Right
Griddle Width (in) 24
Heat Gas/Electric
Height (in) 58
Hertz 60
Installation Type Freestanding
Max Temp 500
Number of Burners 6
Number of Ovens Double
Open Burner BTU (ea) 30000
Phase 1
Plate Thickness (in) 3/4
Product Gas Ranges
Product Type Cooking Equipment
Rack Positions per Convection Oven 4
Rack Positions per Standard Oven 4
Racks per Convection Oven 2
Racks per Standard Oven 2
Range Configuration Burners/Griddle
Rating Better
Series Endurance®
Standard Oven BTU/hr 23000
Standard Oven Dimensions 20-1/4"W x 26-1/4"D x 14"H
Total BTU 278000
Vent Backriser w/ hi-shelf
Voltage 115
Warranty 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts
Width (in) 60
Weight 1050.00
