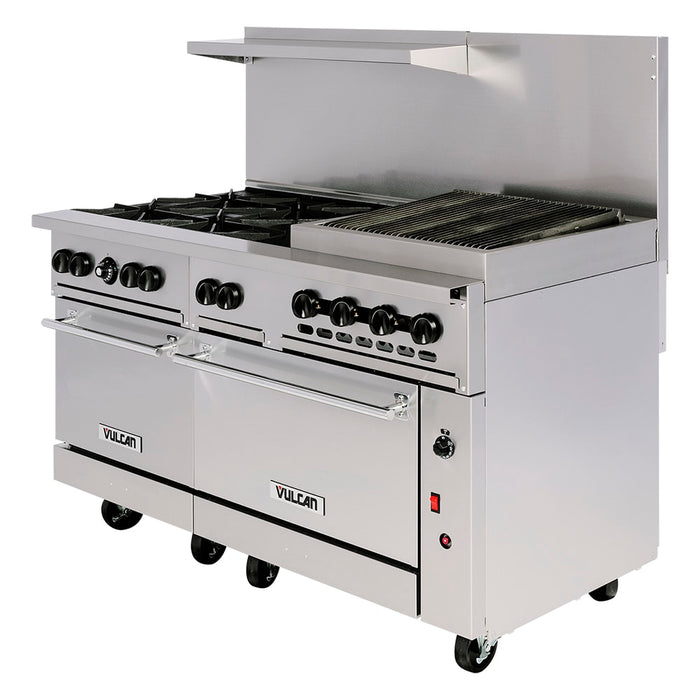

Vulcan 60SC-6B24GB 60" 6 Burner Gas Range W/ Griddle/broiler, (1) Standard & (1) Convection Oven, Liquid Propane
The Vulcan 60SC-6B24GB gas range has a 24-inch griddle-broiler to expand your cooking options. To make it easy to clean, there is a 4-inch-wide grease trough and pull-out crumb tray. The base has a 23,000 BTU standard oven and 35,000 BTU convention oven. Each ovena€™s temperature can be set between 250 and 500 degrees Fahrenheit and comes with two racks and two rack guide sets. The racks can be adjusted to four positions to achieve a variety of results. The front, sides, high shelf, and backriser are made of stainless steel, providing durability for commercial use.
The range top has 12-inch-by-12 1/2-inch front grates that easily lift off for cleaning. The rear grates are 12 inches wide and 14 1/2 inches deep, accommodating large pans and stock pots. Aeration bowls under each grate direct the heat and add structure to prevent breaking of the fingers. Lift-off heads on the six burners allow the operator to clean underneath the grates. The shrouded flash tube pilot system uses one pilot for every two burners, limiting the flow of gas to save money. The burner knobs stay cool while the Vulcan 60SC-6B24GB gas range heats up to reduce the risk of injury.
- 12-in. x 12 1/2-in. front cast iron grates easily lift off for cleaning
- 12-in. x 14 1/2-in. rear cast iron grates hold large pots and pans
- Structure is added to the gratesa€™ fingers with aeration bowls
- Aeration bowls direct the heat flow upward to pots and pans, creating even heat
- 6 open top burners have lift-off heads to facilitate cleaning
- Shrouded flash tube pilot system has 1 pilot per 2 burners to limit gas use
- Cool-to-the-touch burner knobs keep users safe
- 24-in. manual griddle-broiler has a 4-in. grease trough to collect liquids
- Pull-out crumb tray makes the unit easy to clean
- Durability is added with its stainless steel-constructed front, backriser, high shelf, and sides
- Fully MIG welded frame creates strength for the structure
- 6-in. adjustable, stainless steel legs keep the range elevated off floors
- 238,000 total BTU
- Standard oven on the left side of the base
- Convection oven on the right side of the base
- 2 racks and 2 rack guide sets in each oven adjust to 4 positions
- Oven can be used from 250-500 degrees F
- Delicate product can be prepared on the low temperature setting
- Doors are heavy duty to stand up to commercial use
- Hinge and spring mechanism in the doors do not require adjustments
- Standard oven operates at 23,000 BTU
- Convection oven operates at 35,000 BTU
- Standard oven interior: 20 1/4 in. W x 26 1/4 in. D x 14 in. H
- Convection oven interior: 26 3/8 in. W x 27 in. D x 14 in. H
- Overall: 60 in. W x 34 in. D x 58 in. H
- LP gas powered
Specifications
| Manufacturer | Vulcan |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Restaurant |
| Base | Standard/Convection Ovens |
| BTU / Burner | 30000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Controls | Manual |
| Convection Oven BTU/hr | 35000 |
| Convection Oven Dimensions | 26-3/8"W x 24"D x 13-7/8"H |
| Depth (in) | 34.75 |
| Gas Inlet Size | 1 |
| Gas Type | LP |
| Griddle Location | Right |
| Griddle Width (in) | 24 |
| Heat | Gas/Electric |
| Height (in) | 58 |
| Hertz | 60 |
| Installation Type | Freestanding |
| Max Temp | 500 |
| Number of Burners | 6 |
| Number of Ovens | Double |
| Open Burner BTU (ea) | 30000 |
| Phase | 1 |
| Plate Thickness (in) | 7/8 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Convection Oven | 4 |
| Rack Positions per Standard Oven | 4 |
| Racks per Convection Oven | 2 |
| Racks per Standard Oven | 2 |
| Range Configuration | Burners/Griddle/Broiler |
| Rating | Better |
| Series | Endurance® |
| Standard Oven BTU/hr | 23000 |
| Standard Oven Dimensions | 20-1/4"W x 26-1/4"D x 14"H |
| Total BTU | 268000 |
| Vent | Backriser w/ hi-shelf |
| Voltage | 115 |
| Warranty | 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts |
| Width (in) | 60 |
| Weight | 1045.00 |
