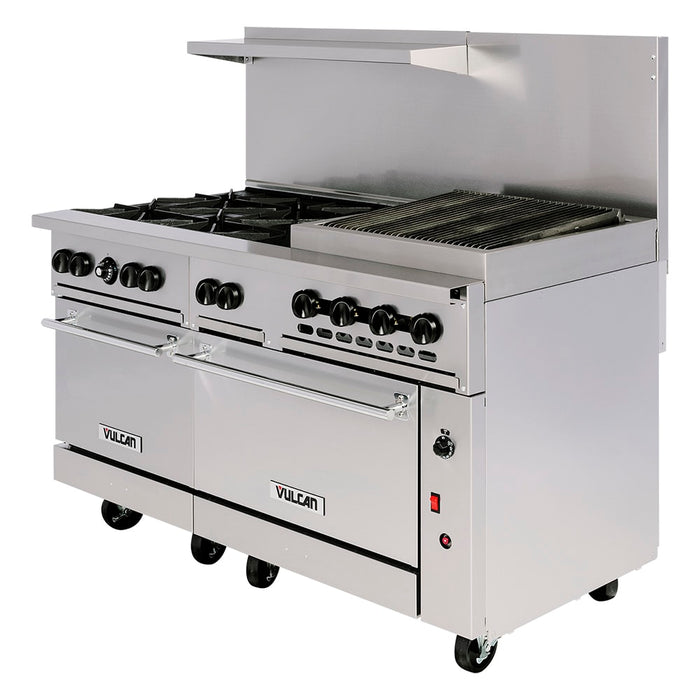

Vulcan 60SC-6B24GB 60" 6 Burner Gas Range W/ Griddle/broiler & (1) Standard & (1) Convection Ovens, Natural Gas
The Vulcan 60SC-6B24GB gas range can hold large pans and stock pots on its 12-inch-by-14 1/2-inch rear grates. The front grates are designed to easily lift off for maintenance and cleanup. Structure is added to the gratesa€™ fingers with integrated aeration bowls; this design also accurately directs the flow of heat to the cooking equipment. Lift-off heads on the burners offer access to the components so they are easy to clean. The 24-inch manual griddle-broiler is perfect for preparing burgers and breakfast foods like pancakes, eggs, and more. A 4-inch grease trough collects liquids, while the crumb tray accumulates food particles, making the unit easy to clean.
There are standard and convection ovens in the base. Each of the cavities has two racks, two guide sets, and four rack positions. Full-size sheet pans fit in the standard oven front to back and side to side, while they fit side to side in the convection oven. The ovens operate at temperatures between 250 and 500 degrees Fahrenheit and include a low setting for delicate products. Durability is added to the Vulcan 60SC-6B24GB gas range with a fully-welded frame and stainless steel parts. Elevated off the floor with 6-inch adjustable legs, it is easy to clean under the unit.
- Natural gas heated
- Lift-off heads on the 6 open top burners facilitate cleaning
- Gas use is limited with a shrouded flash tube pilot system that has 1 pilot per 2 burners
- Front grates measure 12 in. x 12 1/2 in. and easily lift off
- Rear grates measure 12 in. x 14 1/2 in. to hold stock pots and large pans
- Gratesa€™ fingers are supported with integrated aeration bowls
- Aeration bowls direct the heat flow up towards cooking equipment
- Burner knobs remain cool to the touch to keep users safe from burns
- 24-in. manual griddle-broiler has a 4-in. grease trough that collects liquids
- Crumb tray pulls out to make the unit easy to clean
- Stainless steel-constructed front, backriser, high shelf, and sides offer durability
- Strength and structure are added with a fully MIG-welded steel frame
- (4) 6-in. legs are made of stainless steel and adjust on uneven floors
- 1-in. rear gas connection and pressure regulator
- 268,000 total BTU
- Overall Dimensions: 60 in. W x 34 3/4 in. D x 58 in. H
- Left side of the base houses the standard oven
- Basea€™s right side has a convection oven
- Each oven has 2 racks and 2 rack guide sets that adjust to 4 positions
- Standard oven accommodates full-size sheet pans front to back
- Convection oven can fit full-size sheet pans side to side
- Ovens can be heated from 250-500 degrees F
- Cook delicate products on the low temperature setting
- Hinge and spring mechanism in the heavy-duty doors open and close easily and do not need adjustments
- Standard oven operates at 23,000 BTU
- Convection oven operates at 35,000 BTU
- Standard Oven Interior Dimensions: 20 1/4 in. W x 26 1/4 in. D x 14 in. H
- Convection Oven Interior Dimensions: 26 3/8 in. W x 27 in. D x 14 in. H
Specifications
| Manufacturer | Vulcan |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Restaurant |
| Base | Standard/Convection Ovens |
| BTU / Burner | 30000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Controls | Manual |
| Convection Oven BTU/hr | 35000 |
| Convection Oven Dimensions | 26-3/8"W x 24"D x 13-7/8"H |
| Depth (in) | 34.75 |
| Gas Inlet Size | 1 |
| Gas Type | NG |
| Griddle Location | Right |
| Griddle Width (in) | 24 |
| Heat | Gas/Electric |
| Height (in) | 58 |
| Hertz | 60 |
| Installation Type | Freestanding |
| Max Temp | 500 |
| Number of Burners | 6 |
| Number of Ovens | Double |
| Open Burner BTU (ea) | 30000 |
| Phase | 1 |
| Plate Thickness (in) | 7/8 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Convection Oven | 4 |
| Rack Positions per Standard Oven | 4 |
| Racks per Convection Oven | 2 |
| Racks per Standard Oven | 2 |
| Range Configuration | Burners/Griddle/Broiler |
| Rating | Better |
| Series | Endurance® |
| Standard Oven BTU/hr | 23000 |
| Standard Oven Dimensions | 20-1/4"W x 26-1/4"D x 14"H |
| Total BTU | 268000 |
| Vent | Backriser w/ hi-shelf |
| Voltage | 115 |
| Warranty | 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts |
| Width (in) | 60 |
| Weight | 1045.00 |
