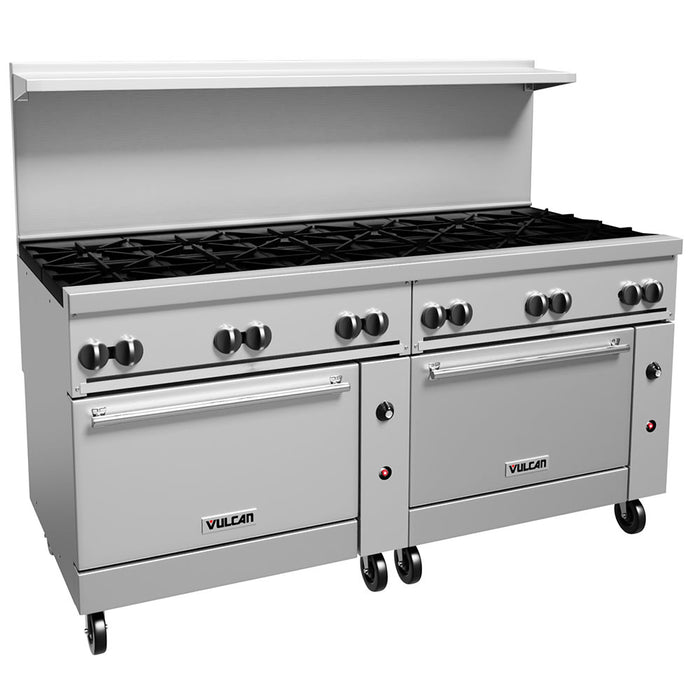

Vulcan 72CC-12B 72" 12 Burner Gas Range W/ (2) Convection Ovens, Liquid Propane
The Vulcan 72CC-12B gas range has twelve open top burners. Each burner head lifts off to provide access for cleaning and servicing. The shrouded flash tube pilot system is designed to save energy by using one pilot for every two burners. The front grates measure 12 inches wide by 12 1/2 inches deep and easily lift off. Since there are 12-inch by 14 1/2-inch rear grates, large pans and stock pots fit on the range. Under each grate, there are aeration bowls, adding structure to the gratesa€™ fingers and directing heat toward the pots and pans.
The convection ovens measure 26 3/8 inches wide by 24 inches deep by 13 7/8 inches tall, accommodating full-size sheet pans side to side. Three oven racks are included for each oven and can be adjusted to four positions. The Vulcan 72CC-12B gas rangea€™s convection ovens have a temperature range of 250 to 500 degrees Fahrenheit. To reduce the risk of burns, the heavy-duty doors have handles that remain cool to the touch while baking.
- Propane gas heated
- Aluminized steel frame is fully MIG welded for strength and structure
- Front, high shelf, backriser, and sides are constructed from stainless steel to provide durability and corrosion resistance
- (12) 30,000 BTU open top burners have lift-off heads
- 1 pilot per 2 burners with a shrouded flash tube pilot system saves energy
- 12-in. x 12 1/2-in. front grates lift off to facilitate cleaning
- Accommodates large pots and pans on the 12-in. x 14 1/2-in. rear grates
- Aeration bowls under the grates direct heat toward cooking appliances and adds structure
- Pull-out crumb tray is deep with welded corners
- 6-in. legs are adjustable for uneven floors
- 1-in. rear gas connection and pressure regulator
- 430,000 BTU
- Overall Dimensions: 72 in. W x 41 in. D x 58 in. H
- Temperature can be adjusted from 250-500 degrees F
- 3 oven racks in each cavity adjust in 4 positions
- Full-size sheet pans fit side to side
- Doors are heavy duty to withstand commercial use
- Door handles remain cool for user safety
- Oven Cavities Dimensions: 26 3/8 in. W x 24 in. D x 13 7/8 in. H
Specifications
| Manufacturer | Vulcan |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Restaurant |
| Base | Convection Oven |
| BTU / Burner | 30000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Controls | Thermostatic |
| Convection Oven BTU/hr | 35000 |
| Convection Oven Dimensions | 26-3/8"W x 24"D x 13-7/8"H |
| Depth (in) | 34.75 |
| Gas Inlet Size | 1 |
| Gas Type | LP |
| Heat | Gas/Electric |
| Height (in) | 58 |
| Hertz | 60 |
| Installation Type | Freestanding |
| Max Temp | 500 |
| Number of Burners | 12 |
| Number of Ovens | Double |
| Open Burner BTU (ea) | 30000 |
| Phase | 1 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Convection Oven | 4 |
| Racks per Convection Oven | 2 |
| Range Configuration | Burners |
| Rating | Better |
| Series | Endurance® |
| Total BTU | 430000 |
| Vent | Backriser w/ hi-shelf |
| Voltage | 115 |
| Warranty | 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts |
| Width (in) | 72 |
| Weight | 1120.00 |
