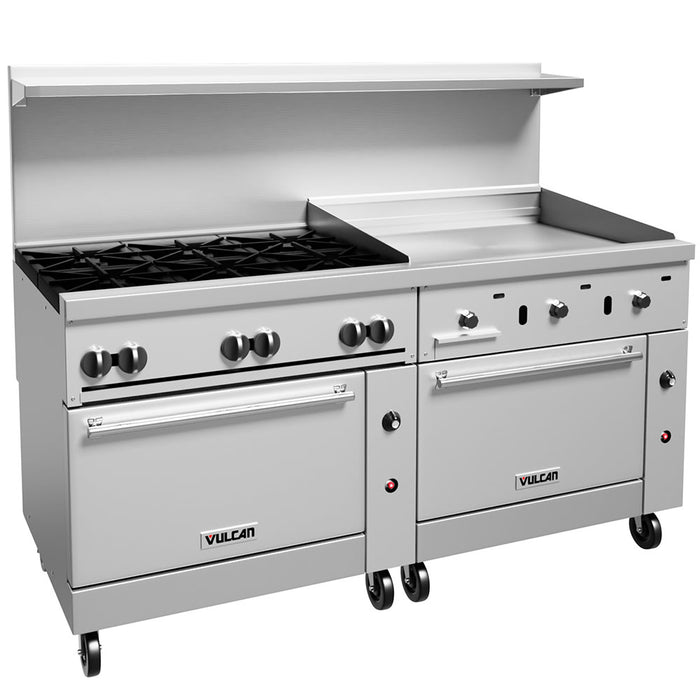

Vulcan 72CC-6B36GT 72" 6 Burner Gas Range W/ Griddle & (2) Convection Ovens, Natural Gas
The Vulcan 72CC-6B36GT NG gas range is an all-in-one unit containing six stove top burners, a 36-inch griddle, and dual convection ovens. It's powered using natural gas delivered through a 1-inch rear-mounted connection and outputs 310,000 BTUs per hour. Its six stove top burners use three shrouded flash tube pilot lights to distribute heat evenly and reduce mechanical failure risks. Its ovens can be set between 250-500 degrees Fahrenheit or turned to a low setting, and it can be adjusted with its thermostatic control system. It measures 72 inches wide by 41 inches wide by 58 inches high and is constructed of stainless steel with an MIG-welded frame. Each oven include three adjustable racks that can hold full-size pans side by side.
To simplify use and cleaning, the Vulcan 72CC-6B36GT NG restaurant range is equipped with a variety of features. Its burner tops have an extra-deep removable crumb tray to catch debris for removal, and its griddle comes with a 4-inch-wide grease trough. For deep cleaning purposes, each of its stove top burner covers can be removed and fully cleaned before being replaced. The unit rests on a series of 6-inch adjustable legs that can be raised or lowered to a comfortable working height, while its back riser comes with a stainless steel shelf to keep popular ingredients and spices within reach of the cooking and prep areas.
- Featured in the Endurance series
- MIG-welded stainless steel frame
- Stainless steel front, sides, back riser, and lift-off shelf
- Front grates: 12 in. x 12 1/2 in.
- Rear grates: 12 in. x 14 1/2 in.
- 36-in. manual griddle with 7/8-in. thick plate
- 6 burners with removable heavy-duty grates for simplified cleaning
- 3 shrouded flash tube pilot light systems (1 system per 2 burners)
- Extra-deep crumb tray with welded corners and 4-in.-wide grease trough
- Control knobs remain cool to the touch through use
- Back riser includes metal shelf
- 6-in. adjustable legs
- Two standard baker's-depth convection ovens
- Includes 3 adjustable racks per oven
- Hold full-size sheet pans side to side
- 35,000 BTU/hr.
- Ovens: (2) 26 3/8 in. W x 27 in. D x 14 in. H
- Overall: 72 in. W x 41 in. D x 58 in. H
- 115 V/1 ph/4 A
- Includes 6-ft. cord and plug
- Natural gas
- 310,000 BTU/hr
- 1-in. rear gas connection with pressure regulator
Specifications
| Manufacturer | Vulcan |
| Application | Restaurant |
| Base | Convection Oven |
| BTU / Burner | 30000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Controls | Thermostatic |
| Depth (in) | 34 |
| Gas Type | NG |
| Griddle Width (in) | 36 |
| Heat | Gas |
| Height (in) | 58 |
| Installation Type | Freestanding |
| Number of Burners | 6 |
| Number of Ovens | Double |
| Plate Thickness (in) | 7/8 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Convection Oven | 4 |
| Racks per Convection Oven | 2 |
| Range Configuration | Burners/Griddle |
| Rating | Better |
| Series | Endurance® |
| Total BTU | 310000 |
| Vent | Backriser w/ hi-shelf |
| Warranty | 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts |
| Width (in) | 72 |
| Weight | 1210.00 |
