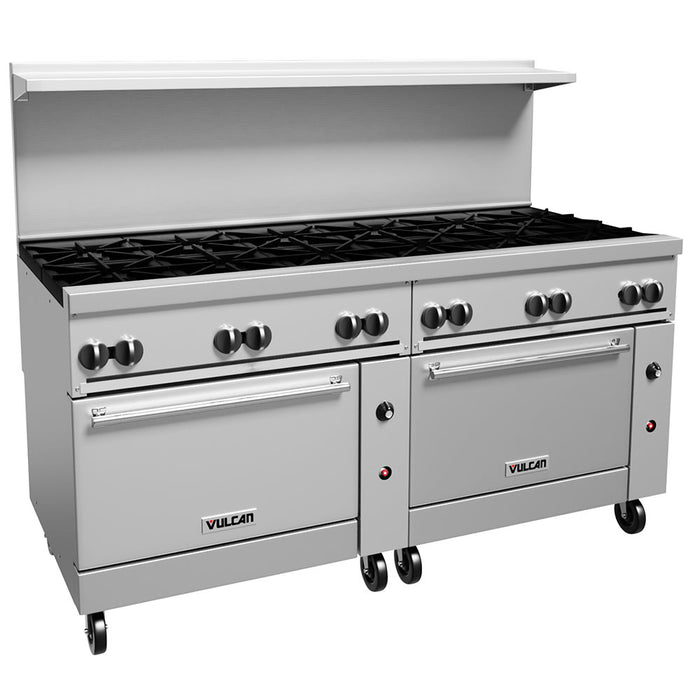

Vulcan 72SC-12B 72" 12 Burner Gas Range W/ (1) Standard Oven & (1) Convection Oven, Liquid Propane
To save space and eliminate the need to purchase multiple pieces of equipment, the Vulcan 72SC-12B Endurance® LP-gas-powered range measures 72 inches wide by 41 inches deep by 58 inches tall and is equipped with 12 open-top burners, a standard oven, and a convection oven. This unit outputs 430,000 BTUs per hour, has a 1-inch rear gas connection, and includes a rear manifold and pressure regulator. While its front, sides, backriser, and lift-off high shelf are made of rust- and corrosion-resistant stainless steel, its frame is fully MIG welded for added strength. So the unit doesn't wobble or rock during operation, it's built on 6-inch adjustable legs.
To reduce gas consumption, one shrouded flashtube pilot system powers two burners; each burner outputs 30,000 BTUs and features a heavy-duty lift-off cast grate with an integrated aeration bowl for added efficiency. While the six front grates measure 12 inches by 12 1/2 inches to accommodate small or medium cookware, the six rear grates are 12 inches by 14 1/2 inches to support large sauce pans or stock pots. Operators can adjust burner heat with the high-temperature-resistant burner knobs that remain cool to the touch through use. When food debris needs to be removed from beneath the burners, the grates can be lifted, and the extra-deep crumb tray can be pulled out.
While a standard oven is built into the Vulcan 72SC-12B commercial range's left side, the right side features a convection oven. To perform various tasks, these ovens operate differently. The standard oven uses radiant heat, and the convection oven relies on a fan to circulate hot air for quick, efficient baking. Both ovens can be set to low heat or set to a temperature between 250 and 500 degrees Fahrenheit. Despite the different interior dimensions, both ovens accommodate full-size pans. The standard oven features a baker's depth with two adjustable racks, and pans can be inserted side to side or front to back. The convection oven comes with three racks and accepts pans inserted side to side. To ease pan insertion and removal, the doors feature a spring mechanism that doesn't require adjustment, and the handles remain cool to the touch. Because the ovens' bases and door panels are made of porcelain, they're simple to clean as needed.
- Part of Vulcan's Endurance series
- Stainless steel front, sides, backriser, and high shelf
- Fully MIG-welded frame
- 6 shrouded flashtube pilot ignition systems (1 pilot per 2 burners)
- 12 open-top burners featuring lift-off burner heads
- 12 heavy-duty lift-off cast grates with built-in aeration bowls for enhanced efficiency
- (6) 12-in. x 12 1/2-in. cast front grates
- (6) 12-in. x 14 1/2-in. cast rear grates
- High-temperature-resistant burner knobs stay cool
- Extra-deep pull-out crumb tray with welded corners
- Standard oven on left and convection oven on right
- Both ovens accept 18-in. x 26-in. pans
- Standard oven includes 2 racks with 2 rack guide sets
- Standard oven has 4 oven rack positions
- Convection oven comes with 3 racks
- Operating temperature: 250-500 degrees F
- Low setting
- Porcelain door panels and oven bases
- 2 hinged oven doors with spring mechanisms
- Cool-to-the-touch door handles
- 6-in. adjustable stainless steel legs
- Convection oven motor requires field attachment
- 35,000-BTU standard oven
- 35,000-BTU convection oven
- Standard oven interior: 26 3/8 in. W x 27 in. D x 14 in. H
- Convection oven interior: 26 3/8 in. W x 24 in. D x 13 7/8 in. H
- Overall: 72 in. W x 41 in. D x 58 in. H
- 4 A
- 115 V/60 Hz/1 ph, 6-ft. cord with plug
- Powered by LP gas
- 1-in. rear gas connection
- 430,000 BTU
Specifications
| Manufacturer | Vulcan |
| Application | Restaurant |
| Base | Standard/Convection Ovens |
| BTU / Burner | 30000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Depth (in) | 34 |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 58 |
| Installation Type | Freestanding |
| Number of Burners | 12 |
| Number of Ovens | Double |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Range Configuration | Burners |
| Rating | Better |
| Series | Endurance® |
| Total BTU | 430000 |
| Vent | Backriser w/ hi-shelf |
| Warranty | 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts |
| Width (in) | 72 |
| Weight | 1060.00 |
