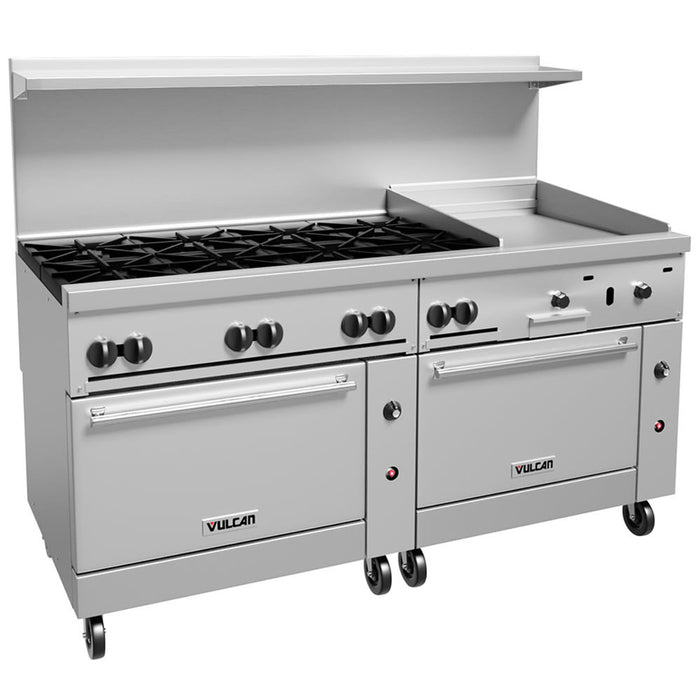

Vulcan 72SC-8B24GT 72" 8 Burner Gas Range W/ Griddle, (1) Standard Oven, & (1) Convection Oven, Natural Gas
Constructed of stainless steel, the 72-inch 72SC-8B24GT gas range with griddle offers durability in high-heat kitchens. Its layout includes eight 30,000-BTU open burners and a 24-inch, 3/4-inch-thick manual griddle with a 4-inch grease trough. Designed for flexibility, this unit also includes a convection oven and a standard oven. Total input is rated at 350,000 BTU.
The fully MIG welded frame adds strength beneath the heavy-duty cast grates and porcelain oven interior. Oven thermostat settings range from 250 to 500 degrees Fahrenheit. Each oven accommodates full-size pans, and the convection oven includes a plug-in blower motor. The Vulcan 72SC-8B24GT gas range with griddle also includes an extra-deep crumb tray and cool-touch oven door handles.
- Endurance® series
- Stainless steel front, sides, backriser, and high shelf
- Fully MIG welded frame
- 350,000-BTU total output
- (8) 30,000-BTU open burners with lift-off heads
- 24-in. griddle with 3/4-in. thickness and 4-in. front grease trough
- Thermostatic burner controls
- Shrouded flash tube pilot systema€”1 pilot per 2 burners
- Extra-deep pull-out crumb tray with welded corners
- Cool-touch oven door handles
- 6-in. adjustable stainless steel legs
- 35,000 BTU baker's depth oven
- Interior dimensions: 27 in. D x 26 3/8 in. W x 14 in. H
- Accommodates full-size pans side-to-side or front-to-back
- Thermostat adjustable from 250 to 500 degrees F
- Porcelain oven bottom and door panel
- Includes 2 oven racks and 4 rack positions
- 35,000 BTU convection oven replaces standard oven (right side)
- Interior dimensions: 24 in. D x 26 3/8 in. W x 13 7/8 in. H
- Accepts full-size sheet pans side-to-side
- Includes 3 oven racks
- Blower motor: 115 V/1 ph, 4 A, with 6-ft. cord and plug
- Field attachment required for convection motor
- Gas type: Natural
- Overall dimensions: 72 in. W x 41 in. D x 58 in. H
- Electrical (convection motor): 115 V/1 ph, 4 A, 6-ft. cord with NEMA 6-20P plug
Specifications
| Manufacturer | Vulcan |
| Application | Restaurant |
| Base | Standard/Convection Ovens |
| BTU / Burner | 30000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Controls | Thermostatic |
| Depth (in) | 41 |
| Gas Type | NG |
| Griddle Width (in) | 24 |
| Heat | Gas |
| Height (in) | 58 |
| Installation Type | Freestanding |
| Number of Burners | 8 |
| Number of Ovens | Double |
| Plate Thickness (in) | 3/4 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Range Configuration | Burners/Griddle |
| Rating | Better |
| Series | Endurance® |
| Total BTU | 350000 |
| Vent | Backriser w/ hi-shelf |
| Warranty | 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts |
| Width (in) | 72 |
| Weight | 1110.00 |
