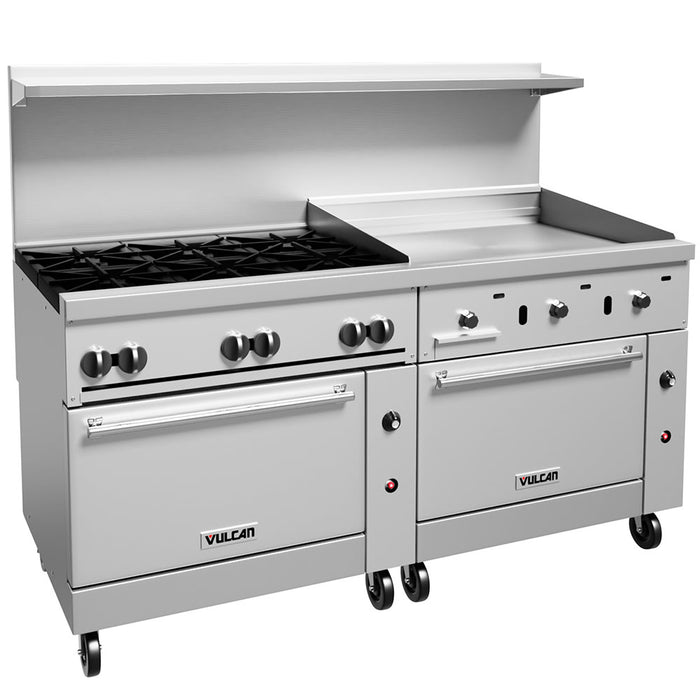

Vulcan 72SS-6B36G 72" 6 Burner Gas Range W/ Griddle & (2) Standard Ovens, Liquid Propane
The Vulcan 72SS-6B36G gas range has six open top burners that each operate at 30,000 BTU with propane gas. The burner knobs remain cool as the range heats up, keeping operators safe from burns. For every two burners, there is one pilot to reduce the use of gas with the shrouded flash tube pilot system. The front grates remove so they can be cleaned, while the rear grates are large enough to accommodate large pots and pans. Integrated into each grate, the aeration bowls direct heat towards the cooking instruments for efficient, even heating.
The base of the Vulcan 72SS-6B36G gas range has two standard ovens. Each oven has a low temperature setting and temperature range of 250 to 500 degrees Fahrenheit. There are two oven racks that each accommodate full-size sheet pans front to back and side to side. Racks can be adjusted to four positions on two rack guide sets. The heavy-duty oven doors easily open and close with hinge and spring mechanisms.
- Powered by propane gas
- 12-in. x 12 1/2-in. front grates lift off for cleaning
- 12-in. x 14 1/2-in. rear grates hold stock pots and large pans
- Integrated aeration bowls in the grates accurately direct heat to the cooking instruments
- 6 open top burners with lift-off heads each operate at 30,000 BTU
- Shrouded flash tube pilot system reduces gas use by using 1 pilot for every 2 burners
- Burn risks are reduced since the burner knobs stay cool
- 36-in. manual griddle is 3/4-in. thick
- Liquids are collected in the 4-in. front grease trough
- Crumb tray pulls out to simplify the cleaning process
- Durability is added with the stainless steel construction of the front, backriser, high shelf, and sides
- Fully MIG-welded steel frame creates strength and structure
- 6-in. stainless steel legs are adjustable for uneven flooring
- 1-in. rear gas connection and pressure regulator
- 310,000 total BTU
- Overall Dimensions: 72 in. W x 34 in. D x 58 in. H
- Can be operated at temperatures from 250-500 degrees F
- Low setting is ideal for cooking delicate items
- Accommodates 18-in. x 26-in. sheet pans side to side and front to back
- Each oven has 2 racks and 2 rack guide sets with 4 rack positions
- Heavy-duty doors work well in commercial settings
- Hinge and spring mechanisms allow the doors to easily open and close
- Interior Dimensions: 26 3/8 in. W x 27 in. D x 14 in. H
Specifications
| Manufacturer | Vulcan |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Restaurant |
| Base | Standard Oven |
| BTU / Burner | 30000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Controls | Thermostatic |
| Depth (in) | 34.75 |
| Gas Inlet Size | 1 |
| Gas Type | LP |
| Griddle Location | Right |
| Griddle Width (in) | 36 |
| Heat | Gas |
| Height (in) | 58 |
| Installation Type | Freestanding |
| Max Temp | 500 |
| Number of Burners | 6 |
| Number of Ovens | Double |
| Open Burner BTU (ea) | 30000 |
| Plate Thickness (in) | 7/8 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Standard Oven | 4 |
| Racks per Standard Oven | 2 |
| Range Configuration | Burners/Griddle |
| Rating | Better |
| Series | Endurance® |
| Standard Oven BTU/hr | 35000 |
| Standard Oven Dimensions | 26-3/8"W x 27"D x 14"H |
| Total BTU | 310000 |
| Vent | Backriser w/ hi-shelf |
| Warranty | 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts |
| Width (in) | 72 |
| Weight | 1090.00 |
