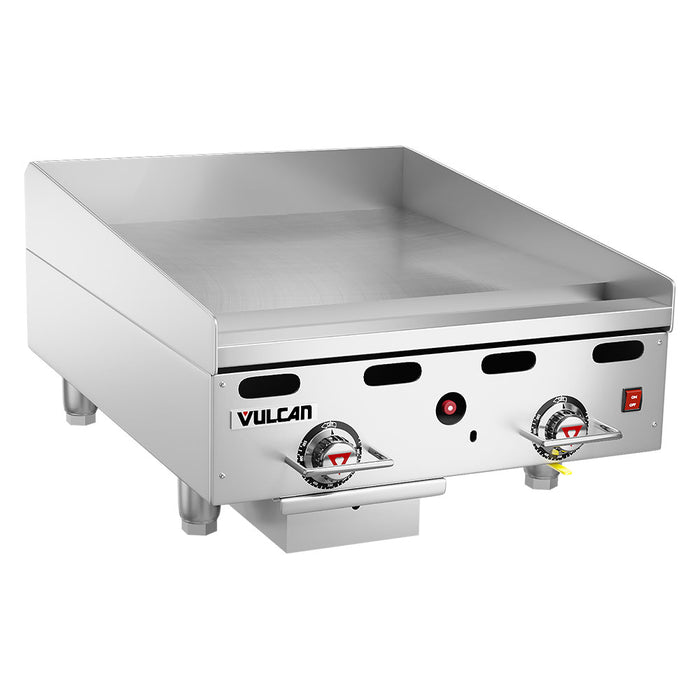

Vulcan 924RX 24" Gas Griddle W/ Thermostatic Controls - 1" Steel Plate, Liquid Propane

SKU 924RX-LP
Original price $0.00 - Original price $0.00
Original price $0.00
$9,001.00
$9,001.00 - $9,001.00
Current price $9,001.00

Capable of cooking a variety of foods, the Vulcan 924RX 24-inch gas griddle is a versatile addition to any restauranta€™s kitchen. A countertop design ensures this griddle can be placed in numerous locations around the kitchen. The front, sides, and front top ledge on the unit are made of durable stainless steel, and this griddle features two u-shaped burners for multiple cook zones controlled by a snap-action thermostat. These burners distribute even temperature across the 1-inch thick steel griddle plate.

A wraparound splatter guard on the Vulcan 924RX countertop griddle contains grease during cooking to minimize messes. The tapered side splatter guards provide access to the griddle plate, while the grease gutter on the griddle provides clearance to enable a spatula to simply scrape excess grease. Excess grease is safely contained in a 6-quart stainless steel grease drawer, and 4-inch legs on the bottom of the griddle are adjustable to provide stability on uneven surfaces.

  • Countertop model
  • Stainless steel front, sides, and front top ledge
  • Temperature range: 200-550 degrees F
  • 2 U-shaped aluminized steel burners for multiple cook zones
  • Dual electric and manual burner ignition
  • Pilot safety valve cuts fuel flow if pilot goes out
  • Independently controlled burners
  • Manual gas inlet shut-off
  • Embedded snap-action thermostats
  • Heavy-duty chrome thermostat knob guards
  • Cool bull-nose design reduces risk of burns
  • 1-in.-thick polished steel griddle plate
  • Wraparound splatter guard with tapered sides contains grease
  • 12-ga. backsplash is 4 in. high
  • Grease gutter is 3 1/2 in. wide for simple spatula scraping
  • Fully welded gutter and chute
  • 6-qt. stainless steel grease drawer
  • Fully welded chassis frame made of stainless and aluminized steel
  • Bottom heat shields protect countertops
  • Low-profile, 11-in. cooking height
  • 4-in. adjustable legs
  • 54,000 BTU

  • Cook surface: 24 in. W x 24 in. D
  • Overall: 24 in. W x 31 1/2 in. D x 15 1/4 in. H
  • 1 A
  • 120 V/50-60 Hz/1 ph, NEMA 5-15P plug
  • 3/4-in. rear gas connection and pressure regulator
  • Uses LP gas

Specifications

Manufacturer Vulcan
Application Heavy Duty
BTU / Burner 27,000
Control Spacing (in) 12
Controls Thermostatic
Cooking Area Depth (in) 24
Cooking Area Width (in) 24
Gas Type LP
Heat Gas
NEMA 5-15P
Overall Width (in) 24
Plate Material Steel
Plate Thickness (in) 1
Product Griddles
Product Type Countertop Cooking Equipment
Rating Better
Series 900RX Series
Warranty 1-year Limited Parts & Labor
Width (in) 24
Weight 270.00
