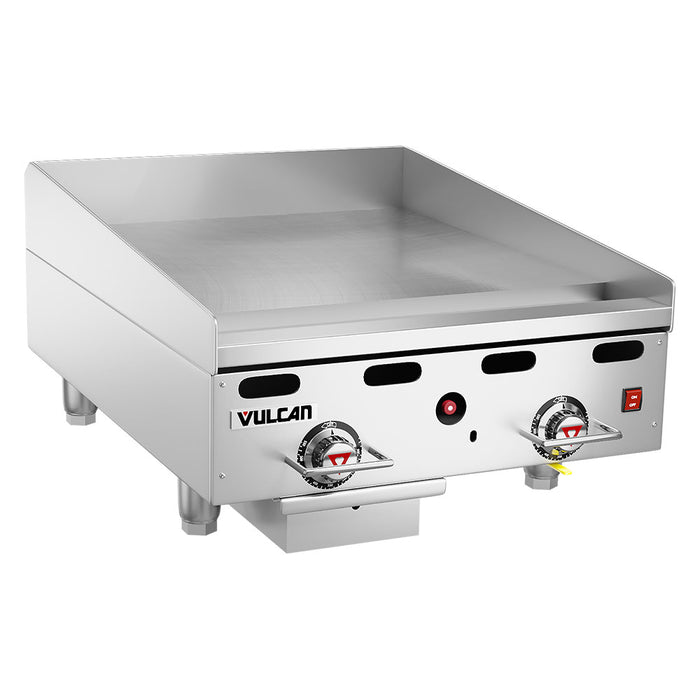

Vulcan 924RX-30 24" Gas Griddle W/ Thermostatic Controls - 1" Steel Plate, Natural Gas
Measuring 24 inches wide by 37 1/2 inches deep by 15 1/4 inches high, the Vulcan 924RX-30 gas griddle takes up minimal space on a crowded countertop. It has a mechanical snap-action thermostat embedded every 12 inches to provide individual cooking zones. To cook various foods, the temperature can be adjusted from 200 to 550 degrees Fahrenheit. If the pilot light extinguishes, the pilot safety valve shuts off the gas to prevent gas leaks and danger of explosion.
The Vulcan 924RX-30 countertop griddle has a grease trough in the front that holds 6 quarts. It has a 4-inch backsplash as well as tapered side splashes that contain messes, ensuring the wall and surrounding equipment stays clean. To wipe underneath the unit, it's positioned on 4-inch adjustable legs. This unit's griddle plate is 1 inch thick to provide quick recovery times as well as heat retention and uniform cooking.
- Polished steel griddle plate is 1 in. thick
- Embedded mechanical snap-action thermostat every 12 in.
- Temperature range: 200-550 degrees F
- Millivolt pilot safety shuts unit off if light extinguishes
- Manual or electric spark ignition
- Front manifold gas shut-off valve
- Countertop design with a low profile
- Bull-nose front protects users from burns
- Stainless steel construction offers rust resistance
- Front grease trough holds 6 qt.
- 4-in. tapered side splashes and backsplash
- Mounted on 4-in. adjustable legs
- 54,000 BTU
- Cooking surface: 24 in. W x 30 in. D
- Overall: 24 in. W x 37 1/2 in. D x 15 1/4 in. H
- Uses natural gas
- 3/4-in. rear gas connection
Specifications
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| BTU / Burner | 27000 |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 30 |
| Cooking Area Width (in) | 24 |
| Gas Type | NG |
| Heat | Gas |
| NEMA | 5-15P |
| Overall Width (in) | 24 |
| Plate Material | Steel |
| Plate Thickness (in) | 1 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Series | 900RX Series |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 24 |
| Weight | 270.00 |
