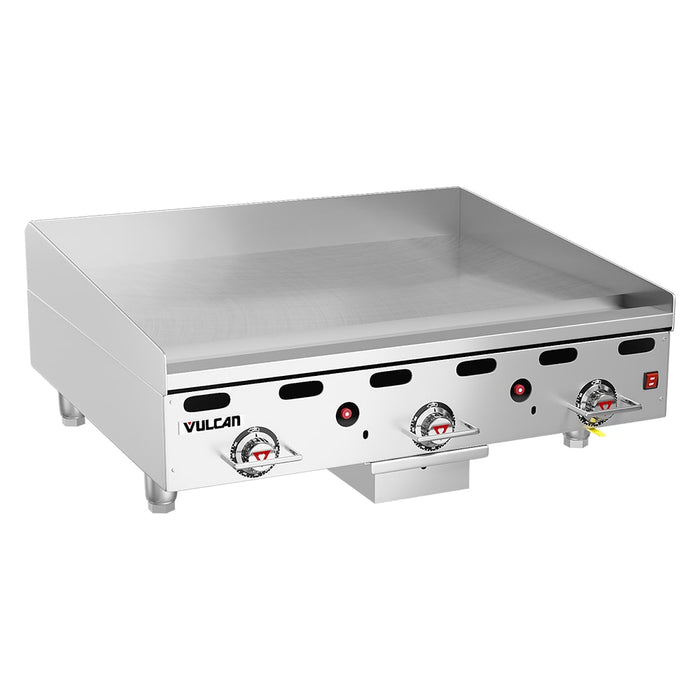

Vulcan 936RX 36" Gas Griddle W/ Thermostatic Controls - 1" Steel Plate, Liquid Propane

SKU 936RX-LP
Original price $0.00 - Original price $0.00
Original price $0.00
$10,901.00
$10,901.00 - $10,901.00
Current price $10,901.00

A heavy-duty countertop model made primarily of stainless steel, the Vulcan 936RX 36-inch gas griddle is well suited for high-volume kitchens. This griddle features separate cook zones provided by its 3 U-shaped steel burners that ensure evenly distributed heat across the cook surface. Burners on the griddle can be ignited via electric or manual ignition, and a pilot safety valve cuts off gas flow so gas will be safely contained if the pilot is extinguished. The burners are individually controlled for full control of temperature on each individual cook zone.

The Vulcan 936RX 36-inch gas griddle has a 1-inch-thick steel cooking surface that keeps food from sticking to it and streamlines cleanup. Grease is safely contained by a wraparound splatter guard to reduce messes, and the grease gutter accommodates spatulas to facilitate simple grease removal from the cook area. A chute welded to the gutter moves grease down into the grease shelf for neat storage and simplified removal. Furthermore, the griddle is equipped with 4-inch adjustable legs that keep it stable and firmly supported.

  • Countertop model
  • Front, sides, and front top ledge are rust-resistance stainless steel
  • Temperature range: 200-550 degrees F
  • Separate cook zones provided by 3 aluminized U-shaped steel burners
  • Dual electric and manual burner ignition
  • Pilot safety valve shuts off gas flow if pilot is extinguished
  • Individually controlled burners enable precise temperature adjustments
  • Manual gas inlet shut-off
  • Embedded snap-action thermostat
  • Heavy-duty, chromed thermostat knob guards resist scratches
  • Bull-nose design stays cool to protect hands from burns
  • 1-in.-thick polished steel griddle plate releases food to prevent sticking
  • Tapered sides on wraparound splatter guard
  • 12-ga. backsplash is 4 in. high
  • Built with 3 1/2-in.-wide grease gutter
  • Fully welded chute and gutter contains grease migration
  • 6-qt. capacity stainless steel drawer catches drippings
  • Stainless and aluminized steel chassis frame is fully welded for additionally support
  • Integrated bottom heat shields protect countertops
  • Low-profile, 11-in. cooking height
  • 4-in. adjustable legs
  • 81,000 BTU

  • Cook surface: 36 in. W x 24 in. D
  • Overall: 36 in. W x 31 1/2 in. D x 15 1/4 in. H
  • 1 A
  • 120 V/50-60 Hz/1 ph, NEMA 5-15P plug
  • Rear gas connection and pressure regulator: 3/4 in.
  • Uses LP gas

Specifications

Manufacturer Vulcan
Application Heavy Duty
BTU / Burner 27,000
Control Spacing (in) 12
Controls Thermostatic
Cooking Area Depth (in) 24
Cooking Area Width (in) 36
Gas Type LP
Heat Gas
NEMA 5-15P
Overall Width (in) 36
Plate Material Steel
Plate Thickness (in) 1
Product Griddles
Product Type Countertop Cooking Equipment
Rating Better
Series 900RX Series
Warranty 1-year Limited Parts & Labor
Width (in) 36
Weight 405.00
