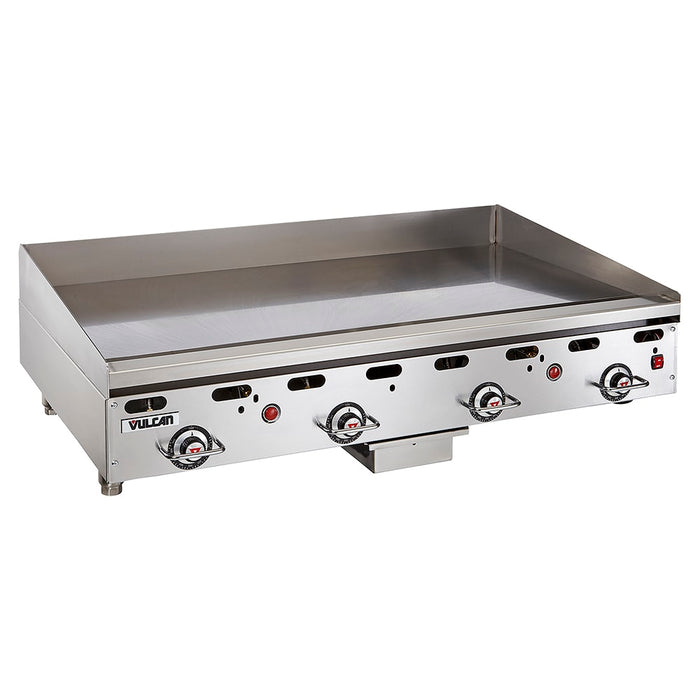

Vulcan 948RX-30 48" Gas Griddle W/ Thermostatic Controls - 1" Steel Plate, Liquid Propane

SKU 948RX-30-LP
Original price $0.00 - Original price $0.00
Original price $0.00
$15,206.00
$15,206.00 - $15,206.00
Current price $15,206.00

The Vulcan 948RX-30 48-inch gas griddle is a heavy-duty countertop model for demanding kitchen environments. This griddle features four U-shaped burners that provide multiple cook zones across its cooking surface, and these burners are capable of being ignited by electric spark or manually. In the event of the pilot being extinguished a safety valve disables gas flow, and for further safety, the gas inlet can be manually shut off.

For precise temperature adjustments, heating of the Vulcan 948RX-30 48-inch gas griddle is thermostatically controlled. The griddle plate is a 1-inch-thick steel plate that facilitates streamlined cleanup and grease removal, while a wraparound splatter guard reduces messes and keeps excess grease safely contained to the cook area. The grease gutter enables quick removal of excess grease and accommodates spatulas. Waste grease is moved through the gutter down a welded chute for storage in the grease drawer, streamlining storage and cleanup.

  • Countertop model
  • Rust-resistant front, sides, and front top ledge constructed of stainless steel
  • Temperature range: 200-550 degrees F
  • 4 aluminized U-shaped steel burners
  • Dual electric and manual burner ignition
  • Pilot safety valve cuts gas flow if pilot is extinguished
  • Burners are individually controlled to create separate cook zones
  • Manual gas inlet shut-off
  • Snap-action embedded thermostat design
  • Chromed, heavy-duty thermostat knob guards
  • Heat-resistant bull-nose design stays cool during use
  • Smooth, 1-in.-thick polished steel griddle plate facilitates cleaning
  • Wraparound splatter guard has tapered sides
  • 12-ga. backsplash is 4 in. high
  • Grease gutter is 3 1/2 in. wide
  • Fully welded chute and gutter prevent leaking
  • Grease drippings collect in the 6-qt. capacity stainless steel drawer
  • Fully welded stainless and aluminized steel chassis frame supports the unit
  • Countertops protected by integrated bottom heat shields
  • Low-profile, 11-in. cooking height
  • 4-in. adjustable legs
  • 108,000 BTU

  • Cook surface: 48 in. W x 30 in. D
  • Overall: 48 in. W x 37 1/2 in. D x 15 1/4 in. H
  • 1 A
  • 120 V/50-60 Hz/1 ph, NEMA 5-15P plug
  • Rear gas connection and pressure regulator: 3/4 in.
  • Uses LP gas

Specifications

Manufacturer Vulcan
Application Heavy Duty
BTU / Burner 27000
Control Spacing (in) 12
Controls Thermostatic
Cooking Area Depth (in) 30
Cooking Area Width (in) 48
Gas Type LP
Heat Gas
NEMA 5-15P
Overall Width (in) 48
Plate Material Steel
Plate Thickness (in) 1
Product Griddles
Product Type Countertop Cooking Equipment
Rating Better
Series 900RX Series
Warranty 1-year Limited Parts & Labor
Width (in) 48
Weight 535.00
