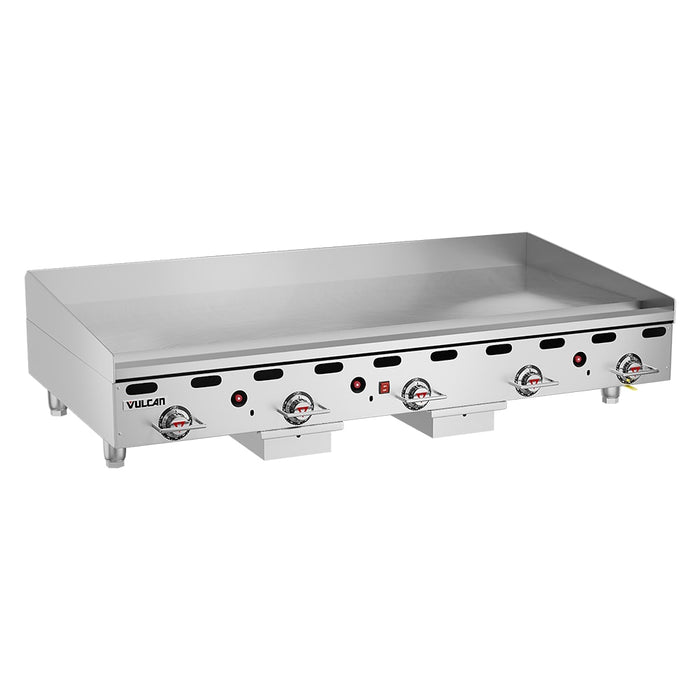

Vulcan 960RX-30 60" Gas Griddle W/ Thermostatic Controls - 1" Steel Plate, Natural Gas

SKU 960RX-30-NG
Original price $0.00 - Original price $0.00
Original price $0.00
$17,696.00
$17,696.00 - $17,696.00
Current price $17,696.00

To accommodate multiple products at once, the Vulcan 960RX-30 countertop gas griddle has a cook surface 60 inches wide by 30 inches deep and has five individually controlled burners to create separate cook zones. The burners can ignite manually or electrically, while the thermostats operate with snap action. To cook everything from fresh eggs to pork chops to chicken breasts, the griddle can be set from 200 to 550 degrees Fahrenheit.

The Vulcan 960RX-30 countertop griddle has five U-shaped burners, each of which is made of aluminized steel for corrosion resistance. The unita€™s front, sides, and front top ledge are made of stainless steel, while the four stainless steel legs can be adjusted to remain level on uneven countertops. To stand up to high-heat use, the griddlea€™s plate is 1 inch thick and made of polished steel. Wrapping around the griddle, its splatter guard stands 4 inches high in the rear and tapers down the sides of the unit, blocking splatters of hot grease from striking the surrounding areas.

  • Countertop model
  • Stainless steel sides, front, and front top ledge resist rust
  • Temperature range: 200-550 degrees F
  • 5 U-shaped burners are aluminized steel
  • Dual electric and manual burner ignition
  • Pilot safety valve prevents gas leaks
  • Burners are individually controlled to provide multiple cook zones
  • Manual gas inlet shut-off
  • Thermostats are embedded and activated with snap action
  • Chromed thermostat knob guards prevent corrosion
  • Stay-cool bull-nose design resists heat transfer
  • Polished griddle plate is 1 in. thick
  • Splatter guard wraps around back and sides with tapered sides
  • 12-ga. backsplash is 4 in. high
  • Grease gutter can fit spatulas as wide as 3 1/2 in.
  • Fully welded chute and gutter prevent grease migration
  • Grease runoff is caught in 6-qt. stainless steel grease drawer
  • Chassis frame made of fully welded aluminized and stainless steel
  • Heat shields built into griddle bottom
  • Low-profile, 11-in. cooking height
  • 4-in. adjustable legs
  • 135,000 BTU

  • Cook surface: 60 in. W x 30 in. D
  • Overall: 60 in. W x 37 1/2 in. D x 15 1/4 in. H
  • 1 A
  • 120 V/50-60 Hz/1 ph, NEMA 5-15P plug
  • Rear gas connection and pressure regulator: 3/4 in.
  • Uses natural gas

Specifications

Manufacturer Vulcan
Application Heavy Duty
BTU / Burner 27,000
Control Spacing (in) 12
Controls Thermostatic
Cooking Area Depth (in) 24
Cooking Area Width (in) 60
Gas Type NG
Heat Gas
NEMA 5-15P
Overall Width (in) 60
Plate Material Steel
Plate Thickness (in) 1
Product Griddles
Product Type Countertop Cooking Equipment
Rating Better
Series 900RX Series
Warranty 1-year Limited Parts & Labor
Width (in) 60
Weight 670.00
