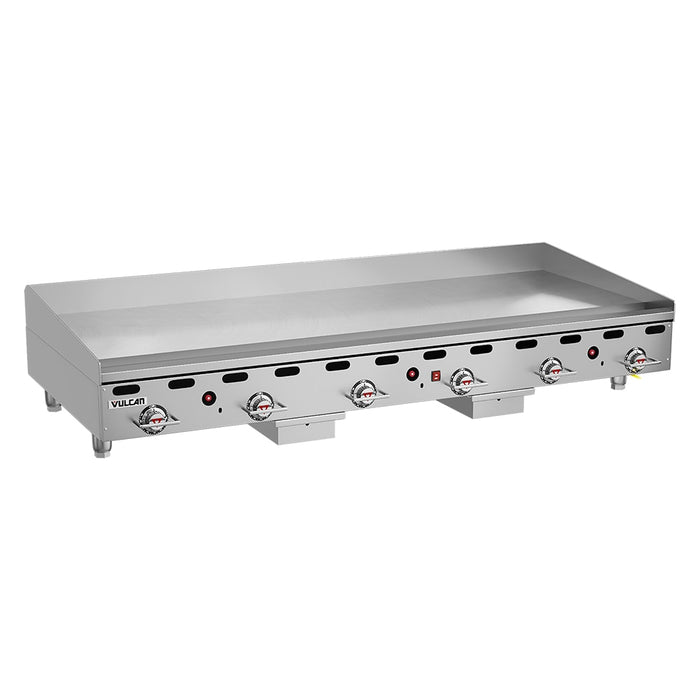

Vulcan 972RX-30 72" Gas Griddle W/ Thermostatic Controls - 1" Steel Plate, Liquid Propane
The Vulcan 972RX-30 gas griddle is thermostatically controlled and has six individual control knobs each protected by a chromed guard that prevents users from accidentally striking against the knobs and changing the settings. Enabling users to cook various types of food at different temperatures on different parts of the grilla€™s surface, each thermostat is individually controlled. For comfortable use, the grilla€™s cook surface is just 11 inches high and rests on 4-inch steel legs that can be adjusted to ensure stability.
The Vulcan 972RX-30 gas griddle cooks food on its steel griddle plate, which is polished smooth to prevent food from sticking and streamline cleanup. Producing 162,000 BTUs, the griddlea€™s six burners are aluminized to evenly spread heat and resist corrosion. To prevent gas from leaking if the pilot light goes out, a pilot safety valve is built in to cut the flow of gas. Adding support to the griddlea€™s structure, it has a fully welded aluminized and stainless steel chassis frame.
- Countertop model
- Sides, front, and front top ledge are stainless steel
- Temperature range: 200-550 degrees F
- 6 aluminized steel burners feature a U shape
- Dual electric and manual burner ignition
- If pilot light is extinguished, pilot safety valve cuts off gas
- Individual burner controls enable multiple cook zones
- Manual gas inlet shut-off
- Snap-action thermostats are embedded
- Thermostat knob guards finished with corrosion-resistant chrome
- Stay-cool bull-nose design prevents heat transfer
- 1-in.-thick polished griddle plate resists warping from frequent use
- Splatter guard wraps around back and sides with tapered edges
- 12-ga. backsplash is 4 in. high
- Grease gutter measures 3 1/2 in. wide to collect fat drippings
- Grease leaks prevented with fully welded chute and gutter
- Fat drippings stored in 6-qt. stainless steel grease drawer
- Welded chassis frame is stainless and aluminized steel
- Griddle bottom heat transfer prevented with bottom heat shields
- Low-profile, 11-in. cooking height
- 4-in. adjustable legs
- 162,000 BTU
- Cook surface: 72 in. W x 30 in. D
- Overall: 72 in. W x 37 1/2 in. D x 15 1/4 in. H
- 1 A
- 120 V/50-60 Hz/1 ph, NEMA 5-15P plug
- Rear gas connection and pressure regulator: 3/4 in.
- Uses LP gas
Specifications
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| BTU / Burner | 27000 |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 30 |
| Cooking Area Width (in) | 72 |
| Gas Type | LP |
| Heat | Gas |
| NEMA | 5-15P |
| Overall Width (in) | 72 |
| Plate Material | Steel |
| Plate Thickness (in) | 1 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Series | 900RX Series |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 72 |
| Weight | 805.00 |
