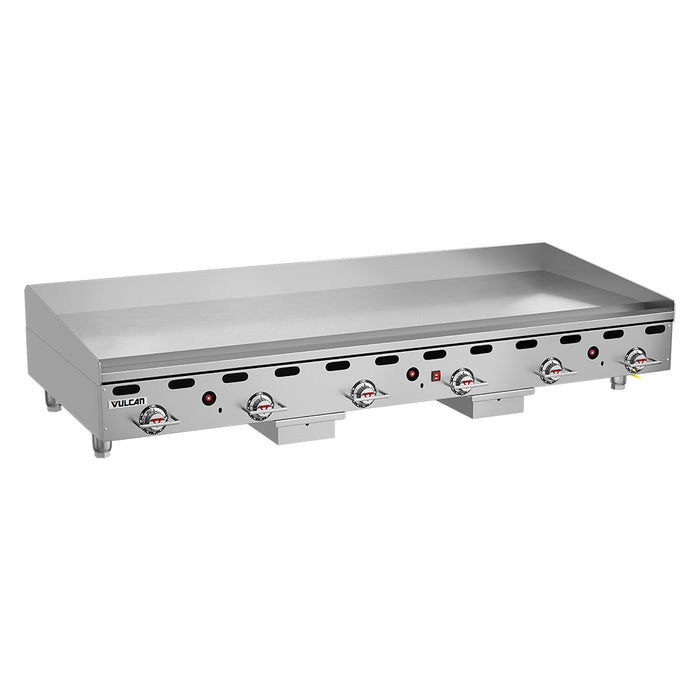

Vulcan 972RX 72" Gas Griddle W/ Thermostatic Controls - 1" Steel Plate, Natural Gas
The Vulcan 972RX gas griddle is 72 inches wide and has six thermostats that each control a U-shaped, aluminized steel burner. The snap-action thermostats are front mounted and protected from accidental impacts with chromed guards. Able to reach temperatures from 200 to 550 degrees Fahrenheit, the griddle is useful for cooking eggs, bacon, sausages, hamburgers and chicken.
Preventing gas leaks and reducing fire risks, the Vulcan 972RX gas griddle has a built-in pilot safety valve that blocks the flow of gas if the pilot light is extinguished. To reduce burns when cooking, the griddlea€™s front bull-nose design stays cool to the touch and has a 3 1/2-inch-wide grease channel that directs hot oil into the grease drawer. To prevent leaks, the grease chute and gutter are fully welded, as is the unita€™s stainless and aluminized steel chassis frame.
- Countertop model
- Made with stainless steel sides, front, and front top ledge
- Temperature range: 200-550 degrees F
- 6 U-shaped steel burners are aluminized
- Dual electric and manual burner ignition
- Pilot safety valve stops gas flow if pilot light goes out
- Individually controlled burners
- Manual gas inlet shut-off
- Snap-action embedded thermostats
- Thermostat knob guards are chromed for corrosion resistance
- Bull-nose design stays cool to prevent burns
- 1-in.-thick polished griddle plate for high-volume use
- Grease splashes blocked by wraparound splatter guard with tapered sides
- 12-ga. backsplash is 4 in. high
- Wide 3 1/2-in. grease gutter can fit a spatula
- Fully welded chute and gutter direct grease into drawer
- (2) 6-qt. stainless steel grease drawers hold spent grease
- Welded stainless and aluminized steel chassis frame supports unit
- Bottom heat shields on griddle shield counters from burning
- Low-profile, 11-in. cooking height
- 4-in. adjustable legs
- 162,000 BTU
- Cook surface: 72 in. W x 24 in. D
- Overall: 72 in. W x 31 1/2 in. D x 15 1/4 in. H
- 1 A
- 120 V/50-60 Hz/1 ph, NEMA 5-15P plug
- Rear gas connection and pressure regulator: 3/4 in.
- Uses natural gas
Specifications
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| BTU / Burner | 27,000 |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 72 |
| Gas Type | NG |
| Heat | Gas |
| NEMA | 5-15P |
| Overall Width (in) | 72 |
| Plate Material | Steel |
| Plate Thickness (in) | 1 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Series | 900RX Series |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 72 |
| Weight | 805.00 |
