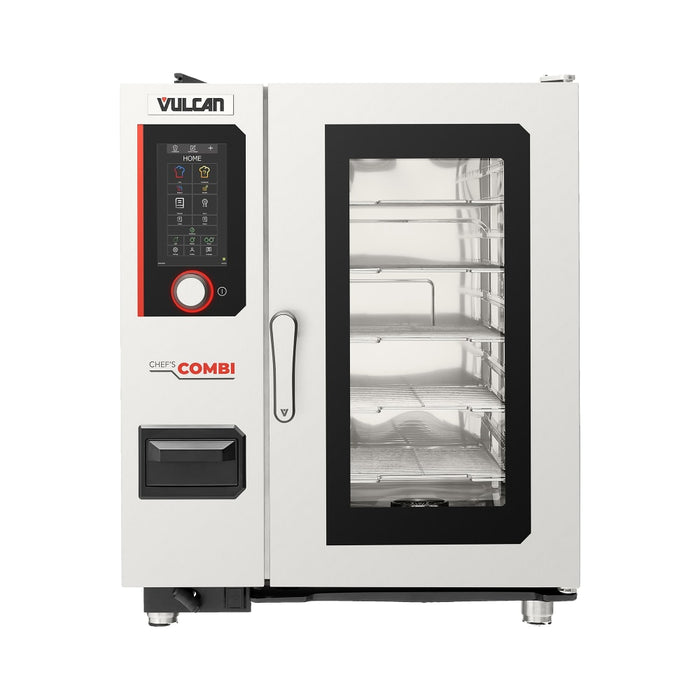

Vulcan CHEF-101E Chef'scombi Half Size Combi Oven - Boiler Based, 240v/3ph
The Vulcan CHEF-101E Chef'sCombi half-size combi oven features a half-size capacity that supports (10) 13-inch by 18-inch half-size sheet pans or (10) 12-inch by 20-inch hotel pans. Its single cooking chamber accommodates six pan levels, with each level supporting a maximum load of 11 pounds. Built from seamless ASTM 304 stainless steel, the cabinet includes rounded interior corners and a double-glazed glass door with heat-reflective coating, rear ventilation, and rotating panels for easier cleaning.
Comprehensive cooking control is achieved with the Vulcan CHEF-101E half-size combi ovena€™s boiler-based steam generation system and digital CombiOS interface. The 10-inch capacitive touchscreen enables intuitive programming, drag-and-drop step creation, and quick access to CombiGuide, MenuMix, and AutoClimate tools. Its advanced cooking platform supports convection, steam, and combination cooking modes. The system adjusts humidity, temperature, and cook times based on load characteristics, and automatically monitors and records HACCP data.
- Chefa€™sCombi series
- Half-size capacity
- Holds (10) 13-in. x 18-in. sheet pans
- Holds (10) 12-in. x 20-in. steam pans
- 6 pan levels
- ASTM 304 stainless steel interior
- 11-lb. maximum load per level
- 110.23-lb. total load capacity
- 2 16/25-in. spacing between rack levels
- 1 right-hinged, double-glazed door with heat-reflective glass door coating
- Integrated retractable sprayer
- 5 wire racks included
- IPX5-rated housing
- Boiler-based steam generation system
- Convection cooking: 80a€“575 degrees F
- Steam cooking: 90a€“270 degrees F
- Combination cooking: 80a€“575 degrees F
- Multi-point core temperature probe
- Delta-T cooking mode
- 5 fan speeds
- Air and water cabinet cooling
- CombiClimateControl automation
- AutoClimate adjustment
- Automatic proofing function
- Cook and hold feature
- 10-in. capacitive HD touchscreen
- CombiOS operating system
- CombiGuide cooking assistant
- MenuMix recipe planner
- Unlimited recipe storage
- 12-slot favorites menu
- Quick temperature and time menus
- Real-time humidity and temperature display
- Status LEDs and control illumination
- USB and Ethernet port
- WiFi/Bluetooth via USB dongle
- 33 1/2 in. W x 35 3/16 in. D x 42 3/8 in. H
- 19.8 kW, 50.1 A
- 240 V/60 Hz/3 ph
- 1 1/2-in. drain connection
- 3/8-in. GHT-M water connection
Specifications
| Manufacturer | Vulcan |
| Controls | Touch Screen |
| Depth (in) | 35.16 |
| Heat | Electric |
| Height (in) | 42.36 |
| Hertz | 60 |
| Hinge Configuration | Right |
| kW | 19.8 |
| No. of Compartments | Single |
| Pan Type | Full Size Steam Pans |
| Pan Type | Half Size Sheet Pans |
| Phase | 3 |
| Product | Combi Ovens |
| Product Type | Cooking Equipment |
| Rating | Better |
| Series | Chef'sCombi |
| Sheet Pan Capacity | 10 Half |
| Size | Half Size |
| Special Features | Cook & Hold |
| Special Features | HACCP Record Keeping |
| Special Features | USB Port |
| Steam Generator | Boiler-Based |
| Steam Pan Capacity | 10 Full |
| Steam Source | Water Reservoir |
| Voltage | 240 |
| Warranty | 2-year Limited Parts & Labor; 5-year Steam Generator |
| Width (in) | 33.54 |
| Weight | 386.00 |
