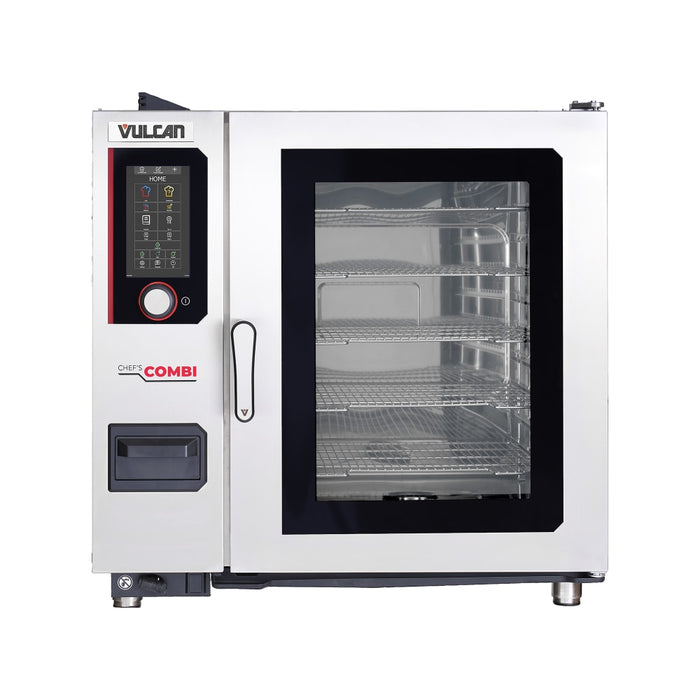

Vulcan CHEF-102E Chef'scombi Full Size Combi Oven - Boiler Based, 208v/3ph
The Vulcan CHEF-102E Chefa€™sCombi full-size combi oven is a boiler-based electric model equipped with 10 levels that hold up to 10 full-size sheet pans or 20 full-size steam pans. Its high-performance steam generator works in tandem with precision heating elements and a reversing fan wheel to ensure even heat circulation across all levels. With five adjustable fan speeds and programmable Delta-T cooking, it supports a wide variety of high-capacity cooking modes. The seamless cooking chamber is constructed of ASTM 304 stainless steel and is illuminated by long-life LEDs behind a double-glazed door with heat-reflective coating and rear ventilation.
The Vulcan CHEF-102E combi oven's operating system includes CombiGuide, MenuMix, AutoClimate, and CombiClimateControl, which facilitate custom control over cooking paths, timing, cabinet climate, and recipe loads. Maintenance is simplified by the CombiCare cleaning system, which includes four preset cycles and an ultrafast rinse. Solid cleaning tablets and descaling sticks automate the wash process across the chamber and steam generator. For data export and HACCP compliance, the system features USB, Ethernet, and optional WiFi/Bluetooth connectivity.
- Chefa€™sCombi series
- Full-size capacity
- Holds (10) 18-in. x 26-in. sheet pans
- Holds (20) 12-in. x 20-in. steam pans
- 10 pan levels
- ASTM 304 stainless steel interior
- 2 16/25-in. spacing between rack levels
- 1 right-hinged, double-glazed door with heat-reflective glass door coating
- Integrated retractable sprayer
- 5 wire racks included
- IPX5-rated housing
- Boiler-based steam generation system
- Convection cooking: 80a€“575 degrees F
- Steam cooking: 90a€“270 degrees F
- Combination cooking: 80a€“575 degrees F
- Multi-point core temperature probe
- Delta-T cooking mode
- 5 fan speeds
- Air and water cabinet cooling
- CombiClimateControl automation
- AutoClimate adjustment
- Automatic proofing function
- Cook and hold feature
- 10-in. capacitive HD touchscreen
- CombiOS operating system
- CombiGuide cooking assistant
- MenuMix recipe planner
- Unlimited recipe storage
- 12-slot favorites menu
- Quick temperature and time menus
- Real-time humidity and temperature display
- Status LEDs and control illumination
- USB and Ethernet port
- WiFi/Bluetooth via USB dongle
- 41 in. W x 41 1/16 in. D x 42 9/25 in. H
- 35.9 kW, 101.8 A
- 208 V/60 Hz/3 ph
- 1 1/2-in. drain connection
Specifications
| Manufacturer | Vulcan |
| Controls | Touch Screen |
| Depth (in) | 41.06 |
| Heat | Electric |
| Height (in) | 42.36 |
| Hertz | 60 |
| Hinge Configuration | Right |
| kW | 35.9 |
| No. of Compartments | Single |
| Pan Type | Full Size Sheet Pans |
| Pan Type | Full Size Steam Pans |
| Phase | 3 |
| Product | Combi Ovens |
| Product Type | Cooking Equipment |
| Rating | Better |
| Series | Chef'sCombi |
| Sheet Pan Capacity | 10 Full |
| Size | Full Size |
| Special Features | Cook & Hold |
| Special Features | HACCP Record Keeping |
| Special Features | USB Port |
| Steam Generator | Boiler-Based |
| Steam Pan Capacity | 20 Full |
| Steam Source | Water Reservoir |
| Voltage | 208 |
| Warranty | 2-year Limited Parts & Labor; 5-year Steam Generator |
| Width (in) | 41.02 |
| Weight | 474.00 |
