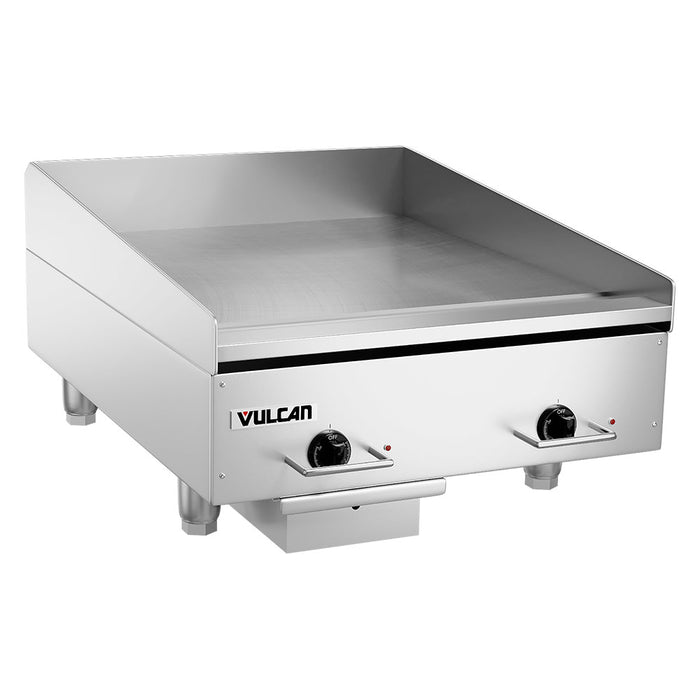

Vulcan HEG24E 24" Electric Griddle W/ Thermostatic Controls - 1/2" Steel Plate, 208v/1ph
For flexible application, the Vulcan HEG24E electric griddle has two separate thermostats that are individually controlled to create two separate cook zones. Its griddle plate is 1/2 inch thick and made of polished steel to resist warping and cracking. Small enough for countertop placement, the griddlea€™s cooking surface is 11 inches high, and the unit rests on adjustable stainless steel legs measuring 4 inches. The thermostat knobs are front mounted and have chromed guards that protect them from accidental changes.
To safely collect excess grease, the Vulcan HEG24E electric griddle has a 1.5-gallon grease drawer. Its front trough measures 3 1/2 inches wide and has a front bull-nose design that resists heat transfer to prevent burns. Blocking grease splatters from staining surrounding walls and surfaces, the griddle has a 4-inch rear splash with tapered side splashes. It has four sheathed heating elements.
- Countertop model
- Durable stainless steel front and sides
- Temperature range: 200-450 degrees F
- 4 sheathed heating elements
- 2 cycling lights
- Each burner is individually controlled
- 2 bottom-mounted snap-action thermostats
- Heavy-duty thermostat knob guards are chromed
- Front grease trough with cool bull-nose design
- 1/2-in.-thick polished steel griddle plate
- Back and sides wrap around to capture grease splashes
- 12-ga. backsplash is 4 in. high
- 3 1/2-in. grease gutter
- Large capacity grease drawer holds 1.5 gal.
- Low-profile, 11-in. cooking height
- 4-in. adjustable stainless steel legs
- Cook surface: 24 in. W x 24 in. D
- Overall: 24 in. W x 31 1/2 in. D x 15 3/10 in. H
- 10.8 kW
- 208 V/50-60 Hz/1 ph
Specifications
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 24 |
| Heat | Electric |
| Hertz | 60 |
| kW | 10.8 |
| Overall Width (in) | 24 |
| Phase | 1 |
| Plate Material | Steel |
| Plate Thickness (in) | 1/2 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Series | HEG-E Series |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 24 |
| Weight | 230.00 |
