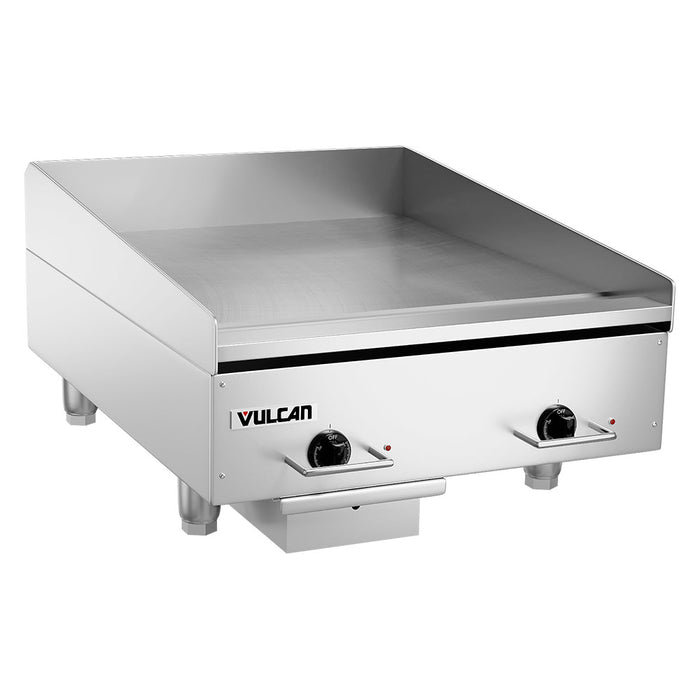

Vulcan HEG24E 24" Electric Griddle W/ Thermostatic Controls - 1/2" Steel Plate, 208v/3ph
The Vulcan HEG24E countertop electric griddle operates with thermostatic controls and provides a 24-inch by 24-inch cook surface. Controlled by dual thermostat knobs, the griddle can be used for dual cook zones so operators have the choice to set each side to a different cooking temperature. The snap-action thermostats are bottom mounted on the unita€™s front for accessibility. Resting on 4-inch adjustable stainless steel legs, the griddle has an 11-inch-high cooking surface.
To resist warping and streamline cleaning, the Vulcan HEG24E electric griddlea€™s 1/2-inch-thick cook plate is made of polished steel. A wraparound grease splash contains hot oil splashes, measuring 4 inches high in the back with sloped sides. Grease runoff travels through the 3 1/2-inch gutter and is collected in the grease drawer. Holding 1.5 gallons, the grease drawer enables extended use between cleanings.
- Countertop model
- Rust-resistant stainless steel front and sides
- Temperature range: 200-450 degrees F
- 4 sheathed heating elements
- 2 cycling lights
- Separately controlled burners for dual cook zones
- 2 bottom-mounted thermostats with snap action
- Chromed thermostat knob guards are heavy duty and corrosion resistant
- Front grease trough has cool bull-nose design to prevent burns
- 1/2-in.-thick griddle plate is polished steel
- Grease splash with 4-in. back and tapered sides wraps around griddle
- 12-ga. backsplash
- Wide 3 1/2-in. grease gutter
- 1.5-gal. grease drawer
- Low-profile, 11-in. cooking height
- 4-in. adjustable stainless steel legs
- Cook surface: 24 in. W x 24 in. D
- Overall: 24 in. W x 31 1/2 in. D x 15 3/10 in. H
- 10.8 kW
- 208 V/50-60 Hz/3 ph
Specifications
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 24 |
| Heat | Electric |
| Hertz | 60 |
| kW | 10.8 |
| Overall Width (in) | 24 |
| Phase | 3 |
| Plate Material | Steel |
| Plate Thickness (in) | 1/2 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Series | HEG-E Series |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 24 |
| Weight | 230.00 |
