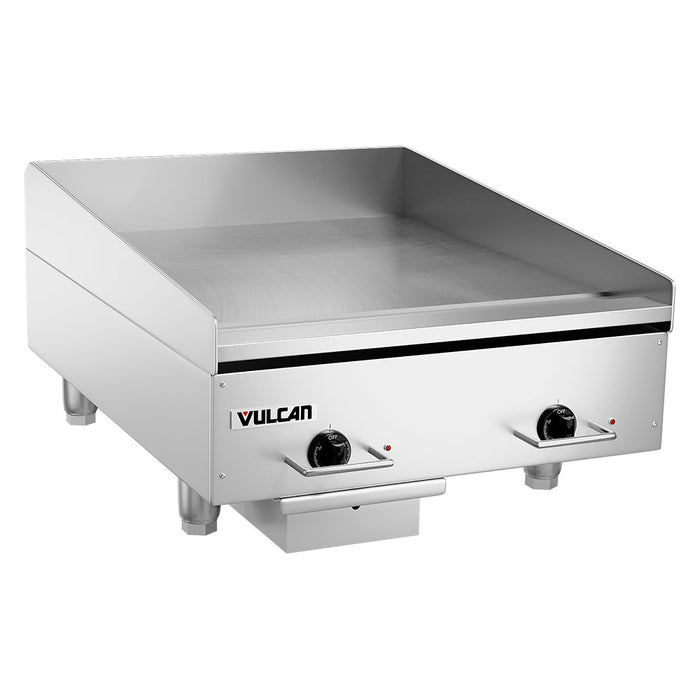

Vulcan HEG24E 24" Electric Griddle W/ Thermostatic Controls - 1/2" Steel Plate, 240v/1ph
To fit comfortably on top of a counter or tabletop, the Vulcan HEG24E electric griddle measures 24 inches wide by 31 1/2 inches deep and has a low-profile cook height of 11 inches for accessibility. It has four sheathed heating elements that are individually controlled to enable dual cook zones. Setting different temperatures for each side of the griddle enables users to toast buns, fry bacon, and cook burgers all at the same time. For long-term use in high-volume settings, the unita€™s front and sides are made of stainless steel.
Protecting the Vulcan HEG24E electric griddlea€™s thermostat knobs, chromed guards block the controls from impact to prevent accidental adjustments. The thermostats are bottom mounted and accessible from the front, while the griddle rests on 4-inch adjustable stainless steel legs. Also front mounted, the unita€™s grease trough measures 3 1/2 inches in width and drains into a grease drawer that holds as much as 1.5 gallons of oily runoff. Protecting neighboring surfaces, the griddle has a 4-inch rear splash with tapered side splashes.
- Countertop model
- Rust-resistant stainless steel front and sides
- Temperature range: 200-450 degrees F
- 4 sheathed heating elements
- 2 cycling lights
- Dual cook zones feature individually controlled burners
- 2 snap-action thermostats are bottom mounted
- Corrosion-resistant chromed thermostat knob guards are heavy duty
- Front grease trough has a cool bull-nose design to prevent burns
- Polished griddle plate is 1/2-in. thick
- Wraparound grease splash is 4 in. high with tapered sides
- Wide 3 1/2-in. grease gutter
- 1.5-gal. grease drawer
- Low-profile, 11-in. cooking height
- 4-in. adjustable stainless steel legs
- Cook surface: 24 in. W x 24 in. D
- Overall: 24 in. W x 31 1/2 in. D x 15 3/10 in. H
- 10.8 kW
- 240 V/50-60 Hz/1 ph
Specifications
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 24 |
| Heat | Electric |
| Hertz | 60 |
| kW | 10.8 |
| Overall Width (in) | 24 |
| Phase | 1 |
| Plate Material | Steel |
| Plate Thickness (in) | 1/2 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Series | HEG-E Series |
| Voltage | 240 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 24 |
| Weight | 230.00 |
