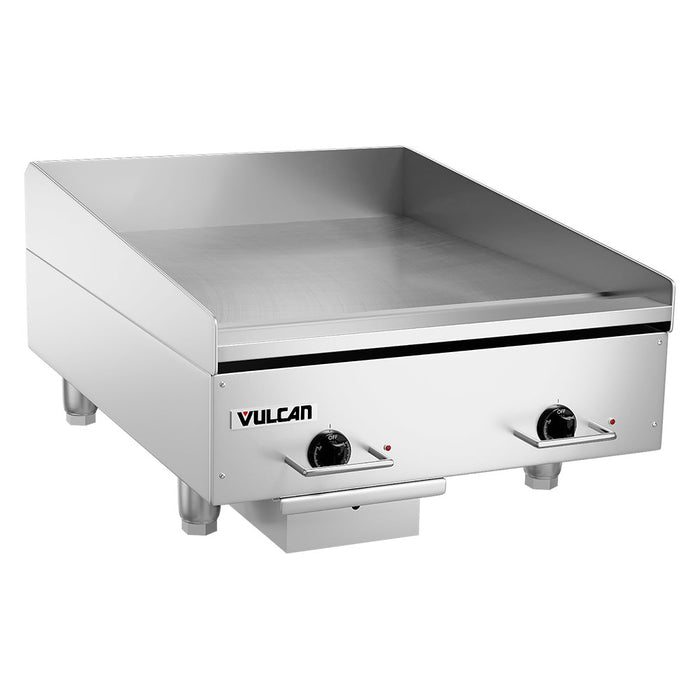

Vulcan HEG24E 24" Electric Griddle W/ Thermostatic Controls - 1/2" Steel Plate, 240v/3ph
The Vulcan HEG24E electric countertop griddle measures 24 inches in width and has four sheathed heating elements. With two individual thermostat controls, the griddle can be set for separate cook zones so users can fry eggs on one side and cook burgers or chicken on the other. Each thermostat is protected with a chromed guard that resists corrosion and prevents accidental temperature adjustments. To prepare a wide variety of foods, the griddle has a temperature range of 200 to 450 degrees Fahrenheit.
Extending time between cleaning, the Vulcan HEG24E electric griddlea€™s grease drawer can hold as much as 1.5 gallons of fat drippings before it needs to be emptied. Streamlining use, the griddlea€™s front grease trough measures 3 1/2 inches wide, which is large enough to accommodate most spatulas. Preventing burns, the griddlea€™s bull-nose front has a stay-cool design that resists heat transfer during cooking.
- Countertop model
- Front and sides are made of durable stainless steel
- Temperature range: 200-450 degrees F
- 4 sheathed heating elements
- 2 cycling lights
- Separately controlled burners enable dual cook zones
- 2 thermostats are bottom mounted and snap activated
- Chromed thermostat knob guards prevent accidental adjustments
- Cool bull-nose design on front grease trough prevents burns
- 1/2-in.-thick polished griddle plate resists warping
- 4-in. rear grease splash with wraparound tapered sides
- Grease gutter is 3 1/2-in. wide
- 1.5-gal. grease drawer holds fat drippings
- Low-profile, 11-in. cooking height
- 4-in. adjustable stainless steel legs
- Cook surface: 24 in. W x 24 in. D
- Overall : 24 in. W x 31 1/2 in. D x 15 3/10 in. H
- 10.8 kW
- 240 V/50-60 Hz/3 ph
Specifications
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 24 |
| Heat | Electric |
| Hertz | 60 |
| kW | 10.8 |
| Overall Width (in) | 24 |
| Phase | 3 |
| Plate Material | Steel |
| Plate Thickness (in) | 1/2 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Series | HEG-E Series |
| Voltage | 240 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 24 |
| Weight | 230.00 |
