Vulcan HEG36E 36" Electric Griddle W/ Thermostatic Controls - 1/2" Steel Plate, 208v/3ph

SKU HEG36E-2083
Original price $0.00 - Original price $0.00
Original price $0.00
$7,638.00
$7,638.00 - $7,638.00
Current price $7,638.00

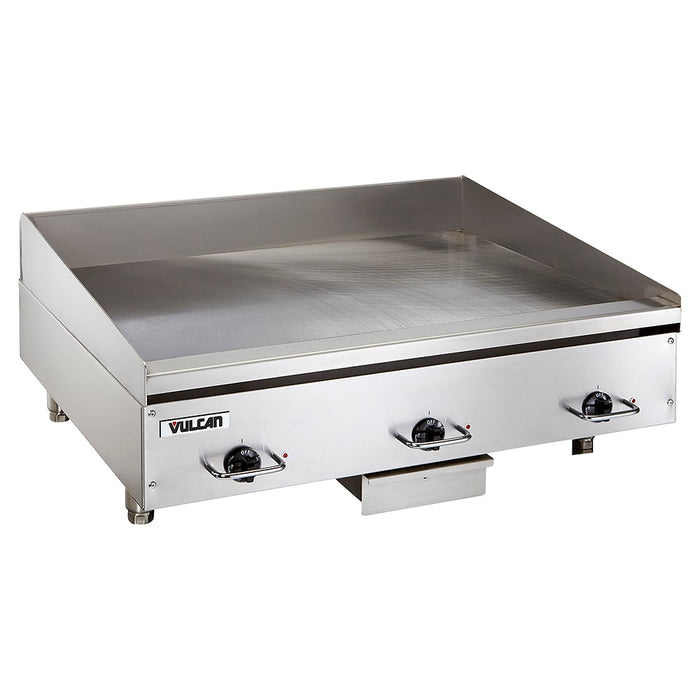

Ideal for high-volume grilling, the Vulcan HEG36E HEG-E Series heavy-duty electric griddle uses incoloy heating elements to heat its flat stainless steel surface between 200 and 450 degrees Fahrenheit. Its 1/2-inch-thick steel plate construction increases high-heat contact for quick recovery times on its 36-inch-wide by 24-inch-deep griddle plate. Equipped with a snap-action thermostat and a cycling light for every 12 inches of griddle width, this unit enables different foods to be cooked at one time on the same surface. Chrome thermostat knob guards help protect against accidental temperature adjustments. To change temperatures, users simply reach around the guards.

The Vulcan HEG36E heavy-duty electric griddle is designed to sit on countertops. It has four adjustable legs and an 11-inch-tall cooking height overall. Rear and side splash guards line the perimeter of the griddle plate, containing hot oil and grease from spilling over the sides. Instead, grease is directed toward a 3 1/2-inch-wide grease trough, which empties into a 1.5-gallon removable grease drawer for quick cleanup. This griddle's front, sides, and legs are made of durable stainless steel designed to withstand common kitchen wear, making it a long-lasting piece of equipment.

  • Part of the HEG-E series
  • Stainless steel construction
  • Thermostat range: 200-450 degrees F
  • 1/2-in.-thick steel griddle plate
  • Heated with 2 solid, sheathed, tubular incoloy heating elements
  • Warms 12-in. sections separately
  • 3 snap-action thermostats with cycling lights spaced 12 in. apart
  • Chrome thermostat knob guards
  • 4-in.-high rear splash
  • 2 tapered side splash guards
  • 3 1/2-in.-wide front grease trough
  • 1.5-gal. grease drawer
  • (4) 4-in.-high, adjustable legs
  • Side and rear clearance: 1 in.
  • Bottom clearance: 4 in.

  • Griddle plate: 36 in. W x 24 in. D
  • Overall: 36 in. W x 31 1/2 in. D x 15.3 in. H
  • 45 A, 16.2 kW
  • 208 V/60 Hz/3 ph

Specifications

Manufacturer Vulcan
Application Heavy Duty
Control Spacing (in) 12
Controls Thermostatic
Cooking Area Depth (in) 24
Cooking Area Width (in) 36
Heat Electric
Hertz 60
kW 16.2
Overall Width (in) 36
Phase 3
Plate Material Steel
Plate Thickness (in) 1/2
Product Griddles
Product Type Countertop Cooking Equipment
Rating Better
Series HEG-E Series
Voltage 208
Warranty 1-year Limited Parts & Labor
Width (in) 36
Weight 310.00
