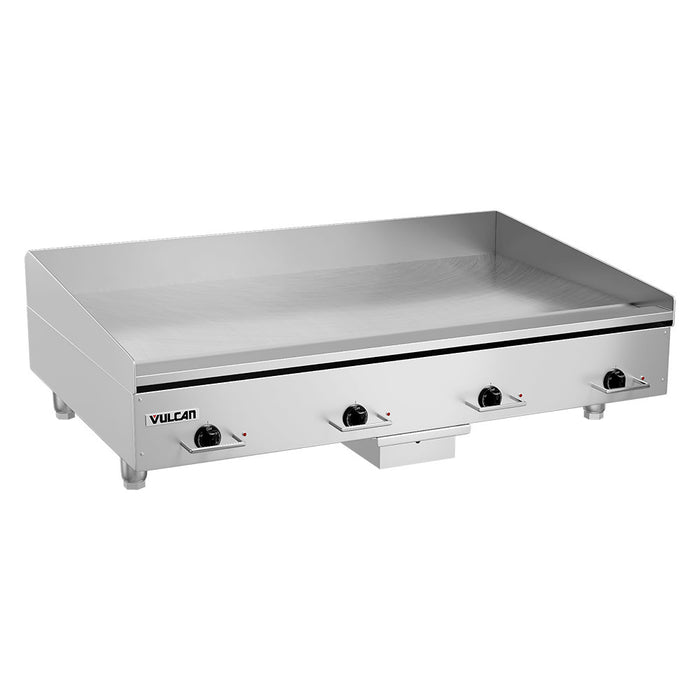

Vulcan HEG48E 48" Electric Griddle W/ Thermostatic Controls - 1/2" Steel Plate, 240v/1ph
Users can cook eggs, bacon, and pancakes simultaneously on this Vulcan HEG48E HEG-E Series heavy-duty electric griddle. It has a snap-action thermostat and cycling light for every 12-inch section, so users can input different temperatures for separate portions of the griddle. Heated by two sheathed incoloy warming elements, the griddle's 1/2-inch-thick steel plate gets hot quickly, which is ideal for sporadic use. The four thermostats have a versatile temperature range between 200 and 450 degrees Fahrenheit, and their controls are protected by chrome thermostat knob guards.
The Vulcan HEG48E commercial griddle's stainless steel construction is durable enough to withstand long durations of daily use. It's designed to sit on countertops and can be adjusted with its four 4-inch-tall legs to fit any kitchen environment. Equipped with rear and side splash guards, this griddle protects countertops from oil and hot grease spilling over the unit's sides. Instead, grease drains into the grease trough and the grease drawer for proper cleanup.
- Part of the HEG-E series
- Stainless steel construction
- 1/2-in.-thick griddle plate
- Temperature range: 200-450 degrees F
- 4 snap-action thermostats
- 4 cycling lights
- Heated by 2 incoloy warming elements
- Warms in 12-in. sections
- 4 chrome thermostat knob guards
- 3 1/2-in.-wide grease trough
- 1.5-gal. grease drawer
- 4-in.-high back splash guard
- 2 tapered side splash guards
- (4) 4-in.-tall adjustable legs
- Side and rear clearance: 1 in.
- Bottom clearance: 4 in.
- Griddle plate: 48 in. W x 24 in. D
- Overall: 48 in. W x 31 1/2 in. D x 15.3 in. H
- 90 A, 21.6 kW
- 240 V/50-60 Hz/1 ph
Specifications
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 48 |
| Heat | Electric |
| Hertz | 60 |
| kW | 21.6 |
| Overall Width (in) | 48 |
| Phase | 1 |
| Plate Material | Steel |
| Plate Thickness (in) | 1/2 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Series | HEG-E Series |
| Voltage | 240 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 48 |
| Weight | 400.00 |
