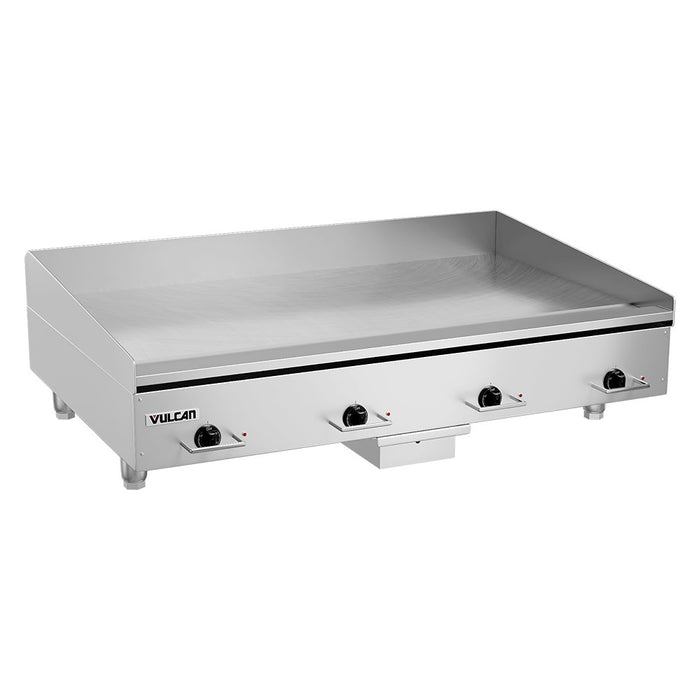

Vulcan HEG48E 48" Electric Griddle W/ Thermostatic Controls - 1/2" Steel Plate, 240v/3ph
The Vulcan HEG48E HEG-E Series heavy-duty electric griddle fits on a countertop for versatile cooking. Able to adjust on its 4-inch-tall legs, the griddle is made of durable stainless steel to thrive in humid, bustling kitchen environments. Its 48-inch-wide by 24-inch-deep griddle plate has a 1/2-inch-thick steel cooking surface that gets as hot as 450 degrees Fahrenheit. Snap-action thermostatic controls line the front of the griddle, separately heating four 12-inch-wide sections for independent cooking results. This griddle's plate is heated with two incoloy heating elements, and a cycling light is located beside each thermostat to alert the operator when the surface is hot.
Grease stays contained on top of the Vulcan HEG48E commercial griddle with a 4-inch-tall rear splash guard and two tapered side splash guards. Excess fat and oil drain into a grease trough located at the front of the griddle, and the grease drawera€”located below the trougha€”collects as much as 1.5 gallons of grease. The griddle's smooth surface is easy to wipe down, making it a low-maintenance, long-lasting item.
- Part of the HEG-E series
- Stainless steel construction
- Temperature range: 200-450 degrees F
- 1/2-in.-thick steel plate
- 4 snap-action thermostats with cycling lights
- Heats in 12-in. sections
- 2 solid, sheathed, tubular incoloy heating elements
- 4 chrome thermostat knob guards
- (4) 4-in.-high adjustable legs
- 4-in.-high rear splash guard and 2 tapered side splash guards
- 3 1/2-in.-wide front grease trough
- 1.5-gal. grease drawer
- Side and rear clearance: 1 in.
- Bottom clearance: 4 in.
- Griddle plate: 48 in. W x 24 in. D
- Overall: 48 in. W x 31 1/2 in. D x 15 3/10 in. H
- 39-58.5 A, 21.6 kW
- 240 V/50-60 Hz/3 ph
Specifications
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 48 |
| Heat | Electric |
| Hertz | 60 |
| kW | 21.6 |
| Overall Width (in) | 48 |
| Phase | 3 |
| Plate Material | Steel |
| Plate Thickness (in) | 1/2 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Series | HEG-E Series |
| Voltage | 240 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 48 |
| Weight | 400.00 |
