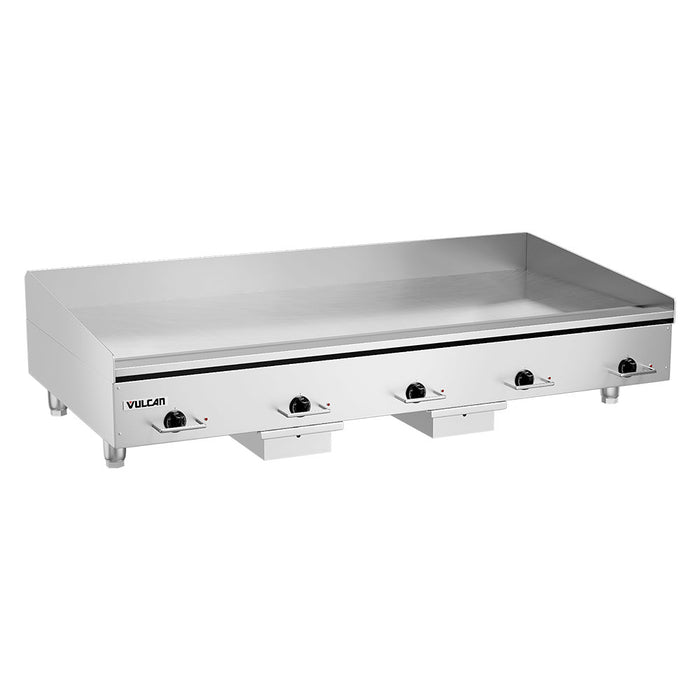

Vulcan HEG60E 60" Electric Griddle W/ Thermostatic Controls - 3/4" Steel Plate, 240v/3ph
Designed to cook several foods at once, the Vulcan HEG60E HEG-E Series electric griddle is a smart investment for high-traffic restaurants. Its 60-inch-wide by 24-inch-deep griddle plate fits on a countertop, and it's lifted with four adjustable legs for added versatility. Made of durable stainless steel, the griddle is heated with two incoloy elements. Every 12-inch section of the griddle is heated by a separate snap-action thermostat, which heats between 200 and 450 degrees Fahrenheit. Temperature controls are shielded with chrome thermostat knob guards.
The Vulcan HEG60E commercial electric griddle has built-in rear and side splash guards to keep hot oil from spilling over the sides. By collecting the grease in one place, it effectively drains down the 3 1/2-inch-wide grease trough into two 1.5-gallon-capacity grease drawers for easy cleanup. This griddle's stainless steel construction streamlines maintenance, and its smooth exterior can be wiped down after use for ensured sanitation.
- Part of the HEG-E series
- Constructed of stainless steel
- Temperature range: 200-450 degrees F
- 3/4-in.-thick steel plate
- Heats by 12-in. sections
- 2 incoloy heating elements
- 5 snap-action thermostatic controls with cycling lights
- Chrome knob guards cover thermostats
- (4) 4-in.-high adjustable legs
- 3 1/2-in.-wide grease trough
- (2) 1.5-gal.-capacity grease drawers
- 2 tapered side splash guards
- 4-in.-high rear splash guard
- Side and rear clearance: 1 in.
- Bottom clearance: 4 in.
- Griddle plate: 60 in. W x 24 in. D
- Overall: 60 in. W x 31 1/2 in. D x 15 3/10 in. H
- 19.5-39 A, 27 kW
- 240 V/50-60 Hz/3 ph
Specifications
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 60 |
| Heat | Electric |
| Hertz | 60 |
| kW | 27 |
| Overall Width (in) | 60 |
| Phase | 3 |
| Plate Material | Steel |
| Plate Thickness (in) | 3/4 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Series | HEG-E Series |
| Voltage | 240 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 60 |
| Weight | 535.00 |
