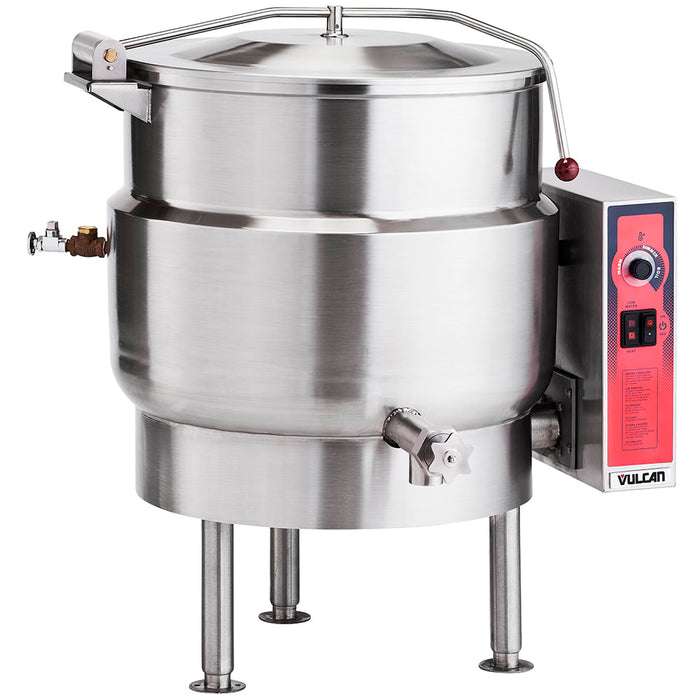

Vulcan K40EL 40 Gal Steam Kettle - Stationary, 2/3 Jacket, 208v/1ph

The K40EL 2081 steam-jacketed stationary kettle from Vulcan features a 40-gallon capacity with both gallon and liter markings on the kettle's interior. The kettle is rated for 50 psi operation and includes a pressure relief valve and a vacuum/pressure gauge so operators can keep an eye on the kettle's conditions. Its solid-state temperature control dial and power switch are housed in a rugged, waterproof enclosure to protect vital electronic components.

Product Details

• 40-gal. capacity
• 2/3 jacketed
• Formed, welded kettle liner features an ellipsoidal shape for strength
• 3/8 in. x 1 in. bar rim provides structural integrity
• Gallon and liter marking on kettle interior operator convenience
• Includes faucet bracket for conveniently-mounted faucet
• Rated for up to 50 psi pressure
• Stainless steel cover opens easily with spring-assist hinge and drop-down lift handle
• Condensate ring around lid helps avoid potential messes
• 2-in. compression tangent draw-off valve with perforated strainer for easily emptying and cleaning kettle
• Tubular, stainless steel legs and with flanged feet allow for stable installation and can be bolted down for safety
• Low-water cutoff prevents damage from elements running while kettle is empty
• Pressure relief valve prevents accidents from unsafe levels of pressure
• Controls are sealed in watertight casing
• 208 V/60 Hz/1-ph, 18kW, must be hardwired by a qualified electrician
• Overall Dimensions: 37 7/10 in. W x 35 1/4 in. D x 37 1/10 in. H

Easy-to-Use Controls

• On/Off power switch
• Power "On" Light
• Solid-state temperature dial
• Vacuum/Pressure gauge
• "Low Water" light
