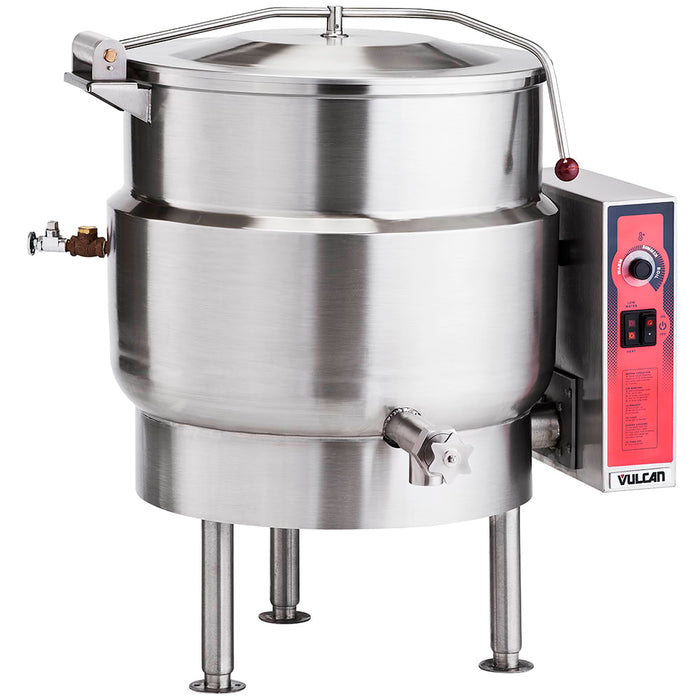

Vulcan K40EL 40 Gal Steam Kettle - Stationary, 2/3 Jacket, 240v/3ph
SKU K40EL-2403
Original price
-
Original price
Original price
-
Current price
Vulcan's K40EL 2403 electric kettle features a spring-assisted cover and a drop-down handle for easily opening and closing the equipment. The kettle is built for safety with its low-water cutoff, pressure relief valve, and waterproof casing. The steam-jacketed kettle features easy-to-understand controls with a solid-state temperature dial and a pressure gauge.
- 40-gal. capacity
- 2/3 jacketed
- Kettle liner is formed and fully welded with an ellipsoidal shape for maximum structural integrity
- Heavy-duty, 3/8 in. x 1 in. bar rim lends strength
- Kettle interior is embossed with both gallon and liter markings for operator convenience
- Includes faucet bracket for conveniently-mounted faucet
- Rated for up to 50 psi pressure
- Stainless steel cover opens easily with spring-assist hinge and drop-down lift handle
- Condensate ring around lid helps avoid potential messes
- 2-in. compression tangent draw-off valve with perforated strainer for easily emptying and cleaning kettle
- Tubular, stainless steel legs and with flanged feet allow for stable installation and can be bolted down for safety
- Low-water cutoff prevents damage from elements running while kettle is empty
- Pressure relief valve prevents accidents from unsafe levels of pressure
- Controls are sealed in watertight casing
- 240 V/60 Hz/3-ph, 18kW, must be hardwired by a qualified electrician
- Overall Dimensions: 37 7/10 in. W x 35 1/4 in. D x 37 1/10 in. H
- On/Off power switch
- Power "On" Light
- Solid-state temperature dial
- Vacuum/Pressure gauge
- "Low Water" light
Specifications
| Manufacturer | Vulcan |
| Base | Tri Leg |
| Capacity (gallons) | 40 |
| Design | 2/3 Jacket |
| Heat | Electric |
| Hertz | 60 |
| No. of Kettles | 1 |
| Phase | 3 |
| Series | KEL Series |
| Tilt Mechanism | Stationary |
| Type | Floor Model |
| Voltage | 240 |
| Warranty | 1-year Limited Parts & Labor |
| Weight | 255.00 |
