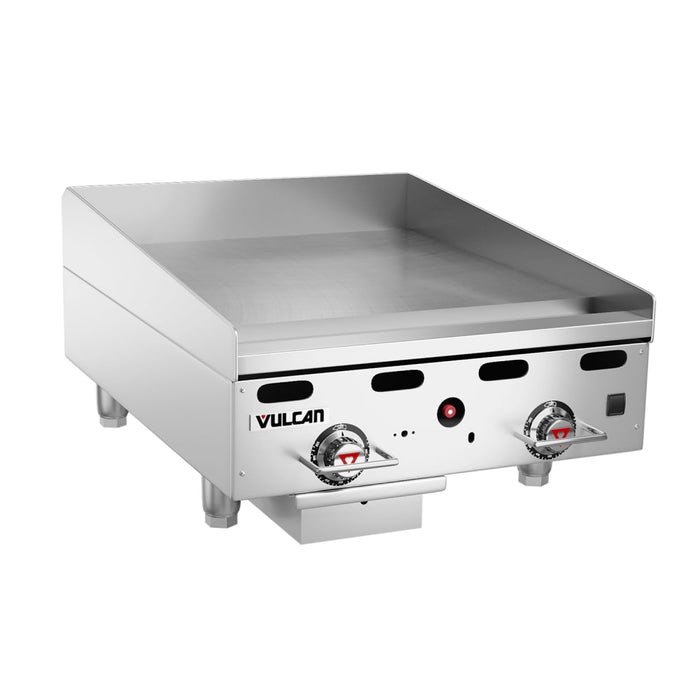

Vulcan MSA24-30 24" Gas Griddle W/ Thermostatic Controls - 1" Steel Plate, Liquid Propane
The Vulcan MSA24-30 gas griddle is a countertop unit and is mounted on 4-inch legs that can be adjusted for stabilization on uneven surfaces. It has a 4-inch backsplash and tapered side splashes that capture grease splatter and keep it from splashing onto the unit's surroundings. Underneath the griddle, it has a front grease trough that holds crumbs and food particles to facilitate cleaning. Measuring 24 inches wide by 37 1/2 inches deep by 15 1/4 inches high, this unit has a low-profile design.
Made of stainless steel, the Vulcan MSA24-30 commercial griddle is durable enough to withstand high-volume use. Enabling users to simultaneously cook two different foods, it has two cooking zones with a mechanical snap-action thermostat located every 12 inches. Changes can be made with front-mounted knobs that have knob guards to prevent unwanted adjustments. The steel griddle plate is 1 inch thick to retain heat and quickly recover temperatures.
- For countertop use
- 1-in.-thick polished steel griddle plate
- Temperature range: 200-550 degrees F
- Fully welded aluminized and stainless steel chassis frame
- 2 U-shaped aluminized steel burners
- Cool bull-nose design reduces burn risks
- Embedded mechanical snap-action thermostat every 12 in.
- Millivolt pilot safety shuts off unit if pilot extinguishes
- Manual ignition
- Heavy-duty knobs protect guards
- Low-profile design
- Made of durable stainless steel
- 6-qt. front grease trough
- 4-in. back and tapered side splashes
- 4-in. adjustable legs
- 54,000 BTU
- Cooking surface: 24 in. W x 30 in. D
- Overall: 24 in. W x 37 1/2 in. D x 15 1/4 in. H
- Uses LP gas
- 3/4-in. rear gas connection
Specifications
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| BTU / Burner | 27,000 |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 30 |
| Cooking Area Width (in) | 24 |
| Gas Type | LP |
| Heat | Gas |
| Overall Width (in) | 24 |
| Plate Material | Steel |
| Plate Thickness (in) | 1 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Series | MSA Series |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 24 |
| Weight | 265.00 |
