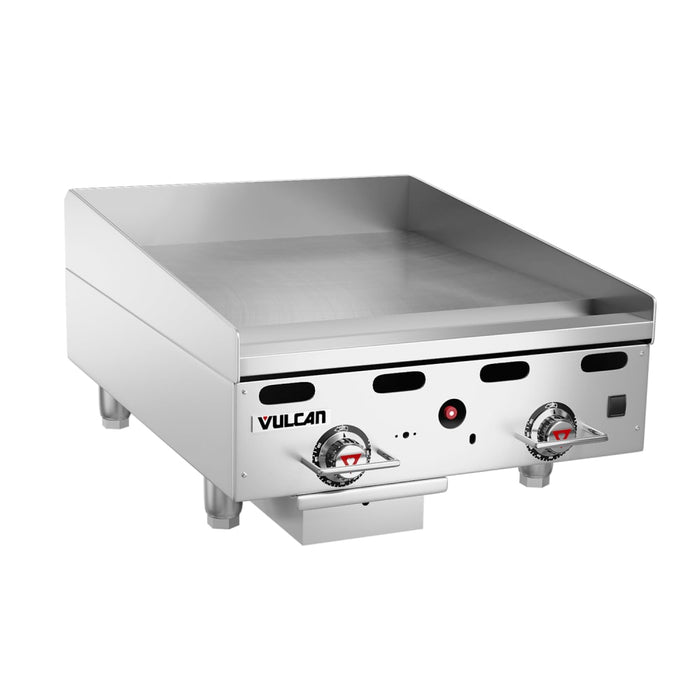

Vulcan MSA24-30 24" Gas Griddle W/ Thermostatic Controls - 1" Steel Plate, Natural Gas
A countertop unit, the Vulcan MSA24-30 gas griddle is positioned on adjustable 4-inch legs to stabilize it on uneven surfaces. Overall, it measures 24 inches wide by 37 1/2 inches deep by 15 1/4 inches high and has a low-profile design for a crowded environment. To prevent overheating, it has a millivolt pilot safety that shuts the unit off if the pilot is extinguished. Because it has a mechanical snap-action thermostat embedded every 12 inches, it has two cooking zones to prepare different foods at the same time.
The Vulcan MSA24-30 countertop griddle has a grease trough in the front that holds 6 quarts of crumbs and grease runoff. It has a 4-inch backsplash and tapered side splashes that prevent messes from splattering on the wall and other surroundings. To recover temperatures quickly, the griddle plate is made of 1-inch-thick steel and is polished to ease cleaning.
- Low-profile, countertop design
- Fully welded aluminized and stainless steel chassis frame
- Polished steel griddle plate is 1 in. thick
- 2 U-shaped aluminized steel burners
- Mechanical snap-action thermostat embedded every 12 in.
- Temperature range: 200-550 degrees F
- Millivolt pilot safety prevents overheating
- Manual ignition with front-mounted knobs
- Heavy-duty knob guards
- Cool bull-nose design ensures safe operation
- Made of resilient stainless steel
- Front grease trough holds 6 qts.
- 4-in. backsplash and tapered side splashes
- Mounted on 4-in. adjustable legs
- 54,000 BTU
- Cooking surface: 24 in. W x 30 in. D
- Overall: 24 in. W x 37 1/2 in. D x 15 1/4 in. H
- Uses natural gas
- 3/4-in. rear gas connection
Specifications
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| BTU / Burner | 27,000 |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 30 |
| Cooking Area Width (in) | 24 |
| Gas Type | NG |
| Heat | Gas |
| Overall Width (in) | 24 |
| Plate Material | Steel |
| Plate Thickness (in) | 1 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Series | MSA Series |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 24 |
| Weight | 265.00 |
