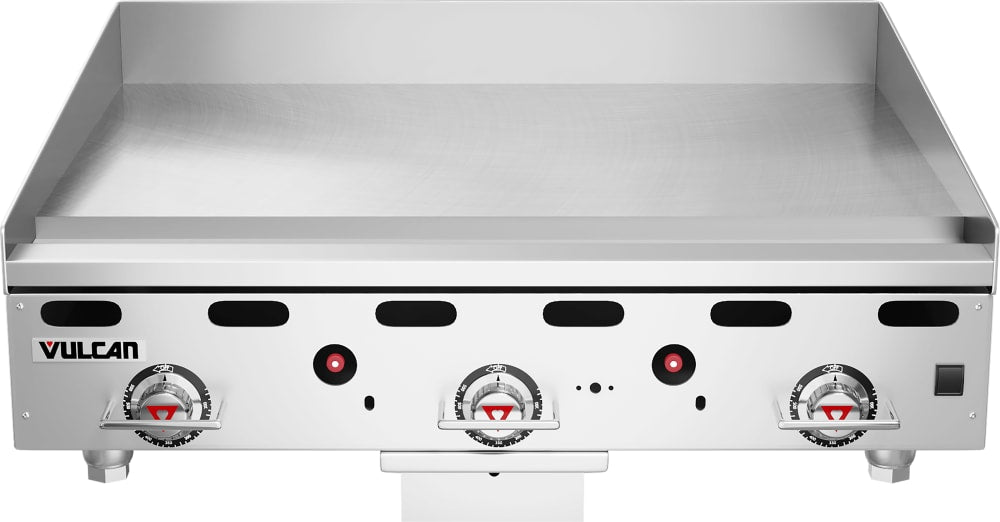

Vulcan MSA36-30 36" Gas Griddle W/ Thermostatic Controls - 1" Steel Plate, Natural Gas

SKU MSA36-30-NG
Original price $0.00 - Original price $0.00
Original price $0.00
$11,691.00
$11,691.00 - $11,691.00
Current price $11,691.00

For durability, the Vulcan MSA36-30 countertop griddle is made of stainless steel, helping it withstand dents and scratches through high-volume use. So it retains heat and provides uniform cooking, the griddle plate is made of 1-inch-thick polished steel. To cook different items at the same time, it has mechanical snap-action thermostats embedded every 12 inches, creating three cooking zones. This unit operates using manual ignition and has knobs on the front for temperature adjustment.

For cleaning underneath, the Vulcan MSA36-30 gas griddle is positioned on 4-inch adjustable legs. It has a 4-inch backsplash and tapered side splashes to keep its surroundings clean and has a front grease trough that holds 6 quarts of oil and food particles. To prevent unwanted temperature changes, the knobs have guards to protect them, and to prohibit overheating, this unit features millivolt pilot safety valves.

  • Countertop design
  • Low profile
  • Manual ignition
  • Front knobs with knob guards
  • 1-in.-thick polished griddle plate made of steel
  • Stay-cool bull-nose design increases comfort during use
  • 3 U-shaped aluminized steel burners
  • 3 cooking zones with mechanical snap-action thermostats embedded every 12 in.
  • Temperature range: 200-550 degrees F
  • Protected with millivolt pilot safety valves
  • Fully welded aluminized and stainless steel chassis frame
  • Resilient stainless steel construction
  • 6-qt. front grease trough captures crumbs
  • 4-in. backsplash and tapered sides
  • Sits on 4-in. adjustable legs
  • 81,000 BTU

  • Cooking surface: 36 in. W x 30 in. D
  • Overall: 36 in. W x 37 1/2 in. D x 15 1/4 in. H
  • Uses natural gas
  • 3/4-in. rear gas connection

Specifications

Manufacturer Vulcan
Application Heavy Duty
BTU / Burner 27,000
Control Spacing (in) 12
Controls Thermostatic
Cooking Area Depth (in) 30
Cooking Area Width (in) 36
Gas Type NG
Heat Gas
Overall Width (in) 36
Plate Material Steel
Plate Thickness (in) 1
Product Griddles
Product Type Countertop Cooking Equipment
Rating Better
Series MSA Series
Warranty 1-year Limited Parts & Labor
Width (in) 36
Weight 395.00
