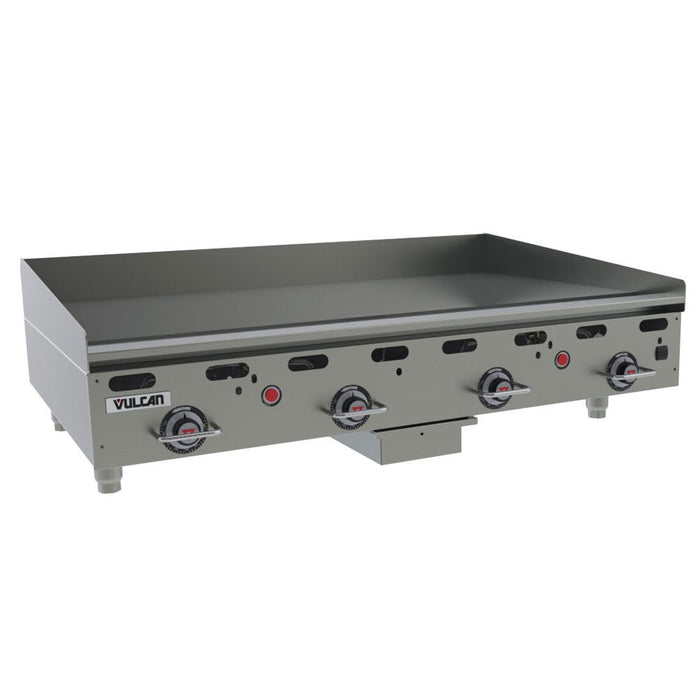

Vulcan MSA48-30 48" Gas Griddle W/ Thermostatic Controls - 1" Steel Plate, Liquid Propane

SKU MSA48-30-LP
Original price $0.00 - Original price $0.00
Original price $0.00
$14,085.00
$14,085.00 - $14,085.00
Current price $14,085.00

Preventing overheating, the Vulcan MSA48-30 commercial griddle has millivolt pilot safety valves that shut off the unit is a pilot extinguishes. In the front, a 6-quart grease trough captures crumbs and debris to keep them off the countertop, and on the back and sides, a 4-inch riser contains grease splatter to keep the surroundings clean. This unit is made of stainless steela€”a material that resists rust, scrapes, dents, and corrosion, and the griddle plate is made of 1-inch-thick steel to retain heat and recover temperatures quickly.

Because the plate on the Vulcan MSA48-30 gas griddle is polished, it's smooth enough to be wiped down when it needs to be cleaned. Measuring 48 inches wide by 37 1/2 inches deep by 15 1/4 inches high, this unit fits on a countertop. Positioned on 4-inch adjustable legs, it can be placed on uneven surfaces without wobbling or tilting over. A mechanical snap action thermostat is embedded every 12 inches to create four individually controlled cooking zones.

  • For countertop use
  • Low profile
  • Mechanical snap-action thermostats operate with manual ignition
  • Thermostats located every 12 in.
  • 4 U-shaped aluminized steel burners
  • Temperature range: 200-550 degrees F
  • Front knobs feature knob guards to prevent changes
  • Polished steel griddle plate is 1 in. thick
  • Fully welded aluminized and stainless steel chassis frame
  • 6-qt. front grease trough captures runoff
  • 4-in. backsplash
  • Tapered side splashes
  • Protected from overheating with millivolt pilot safety valves
  • Rust-resistant stainless steel construction with cool bull-nose design
  • Stabilized on 4-in. adjustable legs
  • 108,000 BTU

  • Cooking surface: 48 in. W x 30 in. D
  • Overall: 48 in. W x 37 1/2 in. D x 15 1/4 in. H
  • Uses LP gas
  • 3/4-in. rear gas connection

Specifications

Manufacturer Vulcan
Application Heavy Duty
BTU / Burner 27,000
Control Spacing (in) 12
Controls Thermostatic
Cooking Area Depth (in) 30
Cooking Area Width (in) 48
Gas Type LP
Heat Gas
Overall Width (in) 48
Plate Material Steel
Plate Thickness (in) 1
Product Griddles
Product Type Countertop Cooking Equipment
Rating Better
Series MSA Series
Warranty 1-year Limited Parts & Labor
Width (in) 48
Weight 525.00
