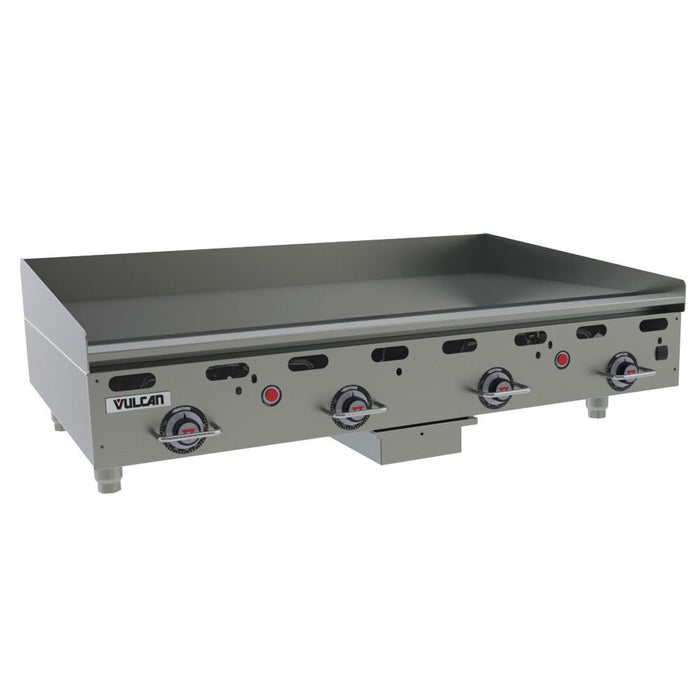

Vulcan MSA48-30 48" Gas Griddle W/ Thermostatic Controls - 1" Steel Plate, Natural Gas

SKU MSA48-30-NG
Original price $0.00 - Original price $0.00
Original price $0.00
$14,085.00
$14,085.00 - $14,085.00
Current price $14,085.00

To create four cooking zones, the Vulcan MSA48-30 gas griddle has a mechanical snap-action thermostat embedded every 12 inches. Each cooking zone has individual controls, so different foods can be cooked simultaneously. To prevent accidental changes if an employee bumps into them, the knobs are protected with heavy-duty guards. Taking up minimal space in a crowded kitchen, this low-profile unit measures 48 inches wide by 37 1/2 inches deep by 15 1/4 inches high.

The Vulcan MSA48-30 commercial griddle is safe to operate with millivolt pilot safety valves that shut off the unit if a pilot extinguishesa€”this prevents overheating and protects the heating elements from damage. To capture food particles, this unit has a front-mounted grease trough that holds 6 quarts. It has a 4-inch backsplash with tapered side splashes that contain messes to keep the wall free of splatter.

  • Intended for countertop use
  • Low profile
  • Mechanical snap-action thermostats
  • Temperature range: 200-550 degrees F
  • Thermostats located every 12 in. to create 4 cooking zones
  • 4 U-shaped aluminized steel burners
  • Manual ignition
  • Adjustable with front-mounted knobs
  • Heavy-duty guards protect knobs
  • 1-in.-thick polished steel griddle plate
  • Cool bull-nose design increases comfort during use
  • 6-qt. front grease trough
  • 4-in. backsplash with tapered side splashes
  • Millivolt pilot safety valves protect overheating
  • Corrosion-resistant stainless steel construction
  • Fully welded aluminized and stainless steel chassis frame
  • 4-in. adjustable legs provide stability
  • 108,000 BTU

  • Cooking surface: 48 in. W x 30 in. D
  • Overall: 48 in. W x 37 1/2 in. D x 15 1/4 in. H
  • Uses natural gas
  • 3/4-in. rear gas connection

Specifications

Manufacturer Vulcan
Application Heavy Duty
BTU / Burner 27,000
Control Spacing (in) 12
Controls Thermostatic
Cooking Area Depth (in) 30
Cooking Area Width (in) 48
Gas Type NG
Heat Gas
Overall Width (in) 48
Plate Material Steel
Plate Thickness (in) 1
Product Griddles
Product Type Countertop Cooking Equipment
Rating Better
Series MSA Series
Warranty 1-year Limited Parts & Labor
Width (in) 48
Weight 525.00
