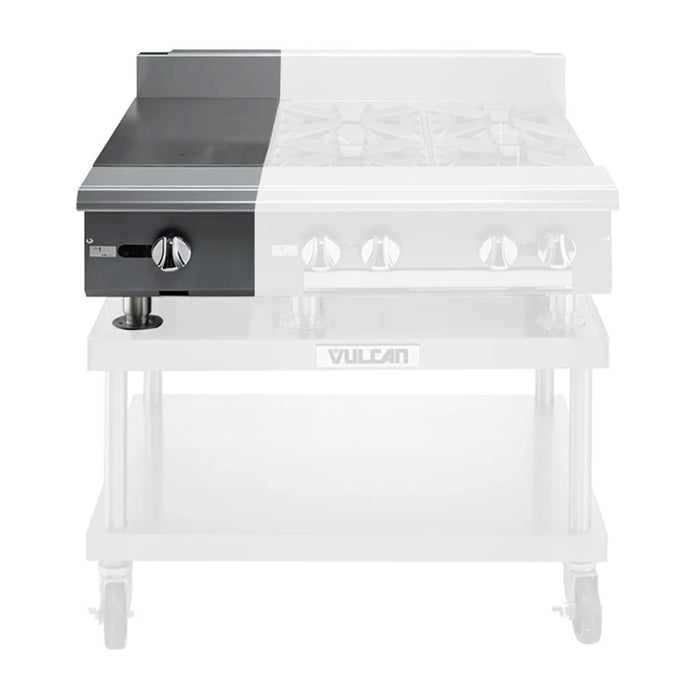

Vulcan V112H 12" Gas Range Top W/ (1) Hot Top - Modular, Natural Gas
SKU V112H-NG
Original price
-
Original price
Original price
-
Current price
Suited to low-heat applications, the Vulcan V112H modular gas range top operates on natural gas and features a full hot top made from polished cast iron. Its 30,000 BTU burner delivers even surface heating, which is ideal for simmering sauces, holding food, or gentle warming. Flanged feet provide a sturdy, fixed base.
The Vulcan V112H 12-inch gas range top features a rugged modular frame and stainless steel surfaces for strength and durability. A single pilot and control valve help manage heat output precisely, and the cast iron top retains heat between uses. A 1 1/4-in. gas manifold at the front simplifies connection to your existing line.
- V Series
- Stainless steel front, top ledge, sides, base, burner box, and stub back
- 12-in. full hot top with polished cast iron surface
- Individual pilot and burner control
- Heavy-duty top castings
- Modular base with 4-in. flanged feet
- 12 in. W x 36 3/4 in. D x 40 1/2 in. H
- Natural gas
- 30,000 BTU/hr. input
- Front connection with 1 1/4-in. diameter gas manifold
Specifications
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Base | Modular |
| BTU / Burner | 30000 |
| Burner Configuration | Standard |
| Burner Style | None |
| Burner Type(s) | None |
| Depth (in) | 36.75 |
| Gas Type | NG |
| Heat | Gas |
| Height (in) | 40.5 |
| Installation Type | Freestanding |
| Number of Burners | None |
| Number of Ovens | No Oven |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Range Configuration | Hot Top |
| Rating | Best |
| Series | V Series |
| Total BTU | 30000 |
| Vent | Stub Back |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 12 |
| Weight | 165.00 |
