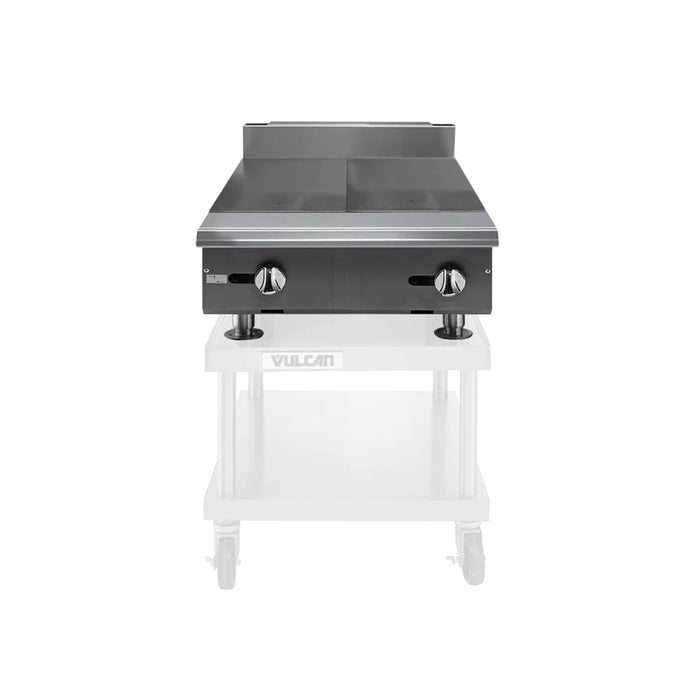

Vulcan V224H 24" Gas Range Top W/ (2) Hot Tops - Modular, Natural Gas
Featuring a pair of individually controlled burners, the Vulcan V224H modular gas range top delivers a combined 60,000 BTU to support demanding cookline applications. Each burner operates beneath a heavy-duty cast iron hot top section, which evenly distributes and retains heat across the surface for tasks like simmering and slow cooking. The 3 3/4-inch-thick ground steel griddle plate provides a durable platform capable of withstanding repeated exposure to high heat. Front-mounted pilots and controls offer precise temperature management for each heated section.
Engineered for modular installations, the Vulcan V224H gas range measures 24 inches wide by 36 3/4 inches deep by 40 1/2 inches high. Its 1/4-inch-diameter front gas manifold connects to a capped rear outlet, giving operators layout flexibility. A stainless steel stub riser shields the wall behind the unit, while the exterior is constructed of corrosion-resistant stainless steel.
- Part of the V series
- Made of stainless steel
- 2 hot top sections
- Heavy-duty hot top castings
- 3/4-in. ground steel griddle plate
- (2) 30,000 BTU burners
- Individual pilots and burner controls
- 1/4-in.-diameter front gas manifold
- Capped rear gas connection
- 4-in. stainless steel stub riser
- 24 in. W x 36 3/4 in. D x 40 1/2 in. H
- 60,000 total BTU
- Powered by natural gas
Specifications
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Base | Modular |
| BTU / Burner | 30000 |
| Burner Configuration | Standard |
| Burner Style | None |
| Burner Type(s) | None |
| Depth (in) | 36.75 |
| Gas Type | NG |
| Heat | Gas |
| Height (in) | 40.5 |
| Installation Type | Freestanding |
| Number of Burners | None |
| Number of Ovens | No Oven |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Range Configuration | Hot Top |
| Rating | Best |
| Series | V Series |
| Total BTU | 60000 |
| Vent | Stub Back |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 24 |
| Weight | 340.00 |
