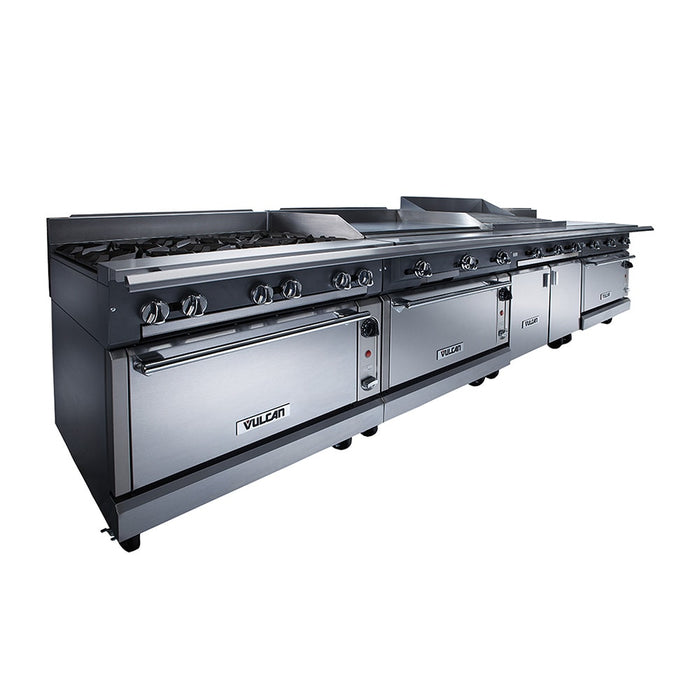

Vulcan V224HB 24" Gas Range W/ (2) Hot Tops & Storage Base, Natural Gas
Outfitted with a stainless steel cabinet base, the Vulcan V224HB gas range includes universal rack guides and one removable shelf for back-of-house storage. This freestanding unit is supported by 6-inch adjustable stainless steel legs and features a corrosion-resistant exterior. A 4-inch stainless steel stub riser protects the wall from splatter and heat during high-output cooking tasks. The enclosed design supports heavy-duty use in demanding kitchen environments.
The Vulcan V224HB gas range is equipped with two hot tops, each powered by its own 30,000 BTU burner. Cast iron hot top sections retain heat and distribute it evenly across the cooking surface, while a 3/4-inch-thick ground steel griddle plate ensures durability under constant use. Each burner has an individual pilot and front-mounted control for precise regulation. This model connects to utilities via a 1/4-inch-diameter front gas manifold and includes a capped rear gas connection for installation flexibility.
- From the V series
- Made of stainless steel
- 2 hot top sections
- Heavy-duty hot top castings
- 3/4-in. ground steel griddle plate
- (2) 30,000 BTU burners
- Individual pilots and burner controls
- 1/4-in.-diameter front gas manifold
- Capped rear gas connection
- Cabinet base with stainless steel door
- 1 removable shelf with rack guides
- 4-in. stainless steel stub riser
- Mounted on 6-in. adjustable legs
- 24 in. W x 36 3/4 in. D x 40 1/2 in. H
- 60,000 total BTU
- Powered by natural gas
Specifications
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Base | Storage |
| BTU / Burner | 30000 |
| Burner Configuration | Standard |
| Burner Style | None |
| Burner Type(s) | None |
| Depth (in) | 36.75 |
| Gas Type | NG |
| Heat | Gas |
| Height (in) | 40.5 |
| Installation Type | Freestanding |
| Number of Burners | None |
| Number of Ovens | No Oven |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Range Configuration | Hot Top |
| Rating | Best |
| Series | V Series |
| Total BTU | 60000 |
| Vent | Stub Back |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 24 |
| Weight | 250.00 |
