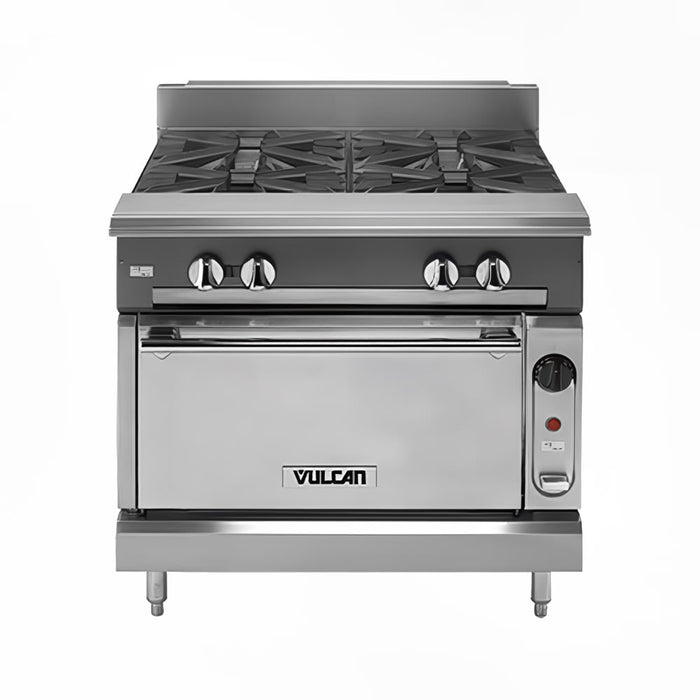

Vulcan V236HS 36" Gas Range W/ (2) Hot Tops & Standard Oven, Natural Gas

SKU V236HS-NG
Original price $0.00 - Original price $0.00
Original price $0.00
$11,735.93
$11,735.93 - $11,735.93
Current price $11,735.93

Built with two hot top sections, the Vulcan V236HS 36-inch gas range distributes surface heat through separate 30,000 BTU burners beneath heavy-duty cast iron plates. These hot tops retain and spread heat evenly across a 3/4-inch ground steel platea€”ideal for simmering and holding food items. Each burner is controlled independently with its own front-mounted pilot and knob for flexible temperature management during service.

Paired with the cooktop, the Vulcan V236HS range features a standard oven powered by a 50,000 BTU burner, fitted with a porcelain-coated cavity and one oven rack that can be adjusted to three different postions. This freestanding unit is constructed of stainless steel on the front, top ledge, sides, base, burner box, and stub back for corrosion resistance. A 4-inch stub riser protects the wall behind the range, while 6-inch adjustable legs help level the unit. A 1/4-inch front gas manifold connects to a capped rear outlet to accommodate natural gas installations.

  • Part of the V Series
  • Stainless steel exterior
  • Includes 2 hot top sections
  • Cast iron hot tops
  • 3/4-in. thick ground steel plate
  • 2 burners rated at 30,000 BTU
  • Standard oven base
  • 50,000 BTU oven burner
  • 3 rack positions with 1 oven rack included
  • Porcelain-coated oven interior
  • Each burner has an individual pilot and control
  • 1/4-in.-dia. front gas manifold
  • Capped rear gas outlet
  • 4-in. stainless steel stub riser
  • Mounted on 6-in. adjustable stainless steel legs

  • 36 in. W x 41 7/8 in. D x 40 1/2 in. H
  • Powered by natural gas
  • 110,000 total BTU

Specifications

Manufacturer Vulcan
Application Heavy Duty
Base Standard Oven
BTU / Burner 30000
Burner Configuration Standard
Burner Style None
Burner Type(s) None
Depth (in) 41.88
Gas Type NG
Heat Gas
Height (in) 36
Installation Type Freestanding
Number of Burners None
Number of Ovens Single
Product Gas Ranges
Product Type Cooking Equipment
Rack Positions per Standard Oven 3
Racks per Standard Oven 1
Range Configuration Hot Top
Rating Best
Series V Series
Total BTU 110000
Vent Stub Back
Warranty 1-year Limited Parts & Labor
Width (in) 36
Weight 615.00
